UniCarriers · Walkie Stacker · New Model Showroom

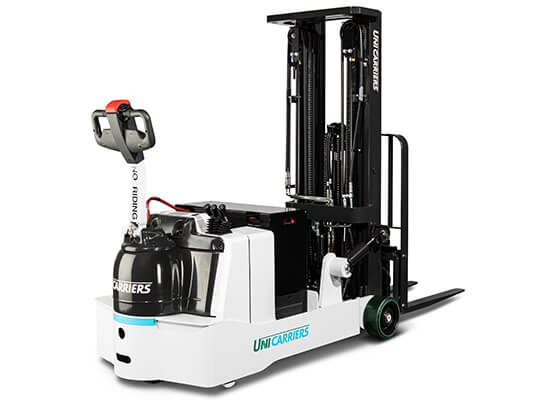

UniCarriers WCX30-WCX40 Walkie Heavy-Duty Stacker (3,000-4,000 lbs)
The 3,000-4,000 lb. capacity WCX walkie counterbalanced stackers are workhorses built to handle heavier loads, reach higher heights and do the job of larger, more expensive trucks.
The 3,000-4,000 lb. capacity WCX walkie counterbalanced stackers are workhorses built to handle heavier loads, reach higher heights and do the job of larger, more expensive trucks.

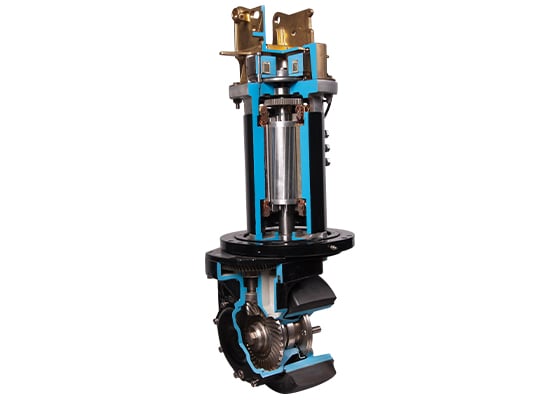

Greater torque and faster speeds are only the beginning of what our proven 5.2 HP brushless AC drive motor delivers. This 24V system features an advanced motor controller/AC inverter that distributes consistent power as needed to the AC drive motor or the heavy-duty DC pump motor. The result? Consistently high performance across the battery range, with longer run times between charging.
At 217 inches (18 feet), the WCX series walkie forklifts' lift height is among the highest in the industry — sized just right for two and three shelf racking. The flat face mast design features rolled steel channels, large cross sections, and thick inner rails for increased capacity retention.
With the WCX30-WCX40 counterbalance pallet stackers you get the exceptional stability that comes from the wide wheelbase and tight turning radius. Its 190º steering arc, ball-bearing steering mechanism, large steering control head, and spring-loaded handle all contribute to easily navigating in the tightest of spaces.

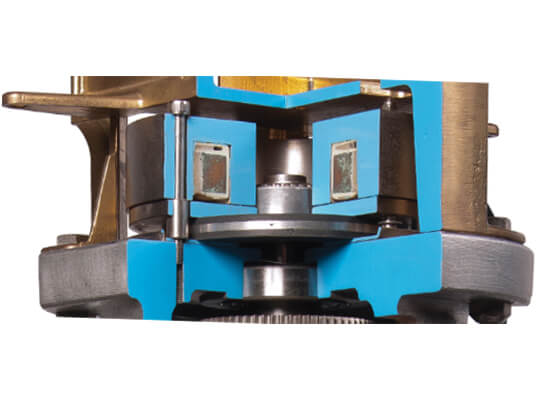

Regenerative motor torque, proportional plugging and our spring-applied electronically released disc brake work together to reduce component wear, extend part life and eliminate the need for adjustments.
| Model | Capacity (lb) | Lift Height (in) | Power Type | Length (in) | Width (in) | Height (in) | Weight (lb) |
|---|---|---|---|---|---|---|---|
| WCX30 | 3,000 | 152 | 24 V | 78.3 | 32.4 | 48 | 6,185 |
| WCX40 | 4,000 | 152 | 24 V | 78.3 | 32.4 | 48 | 6,185 |
Full specifications: Brochure (PDF)
Our team will help you configure the right truck for your operation, with local parts and service support.
Product information and images courtesy of the manufacturer. Specifications subject to change.
