UniCarriers MXL40-MXL55H Electric Pneumatic Forklift (9,000-12,000 lbs)
UniCarriers MXL40-MXL55H Electric Pneumatic Forklift (9,000-12,000 lbs) - Image 2
UniCarriers MXL40-MXL55H Electric Pneumatic Forklift (9,000-12,000 lbs) - Image 3
UniCarriers MXL40-MXL55H Electric Pneumatic Forklift (9,000-12,000 lbs) - Image 4
UniCarriers MXL40-MXL55H Electric Pneumatic Forklift (9,000-12,000 lbs) - Image 5

UniCarriers · Sit-Down Rider · New Model Showroom

MXL40-MXL55H

UniCarriers MXL40-MXL55H Electric Pneumatic Forklift (9,000-12,000 lbs)

Built for maximum operator comfort, the ergonomically-designed MXL features a quiet work environment and increases ease of drive. With the ability to handle heavier loads with less energy consumption, it answers the need for high-performance, all while being environmentally friendlier and cost-effective.

  • MXL40 / MXL45 / MXL50C / MXL50 / MXL50H / MXL55H
  • Large Electric Pneumatic Forklift
  • 80 V
  • 9,000 / 10,000 / 11,000 / 12,000 lbs

Call for Price · +1-417-862-6960

Request Quote Brochure

Overview

Large Electric Pneumatic Forklift

Built for maximum operator comfort, the ergonomically-designed MXL features a quiet work environment and increases ease of drive. With the ability to handle heavier loads with less energy consumption, it answers the need for high-performance, all while being environmentally friendlier and cost-effective.

Load Capacity Range
9,000-12,000 lbs
Max Lift Height
130 in
Power Type
80 V
Models in Series
6
Get a Quote
MXL40-MXL55H

Features

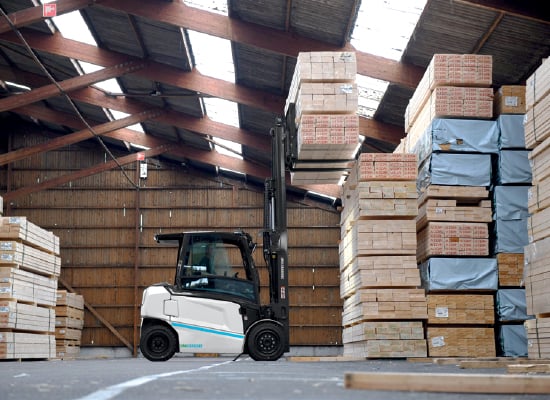

Advanced Hydraulic Technology

Designed with performance in mind, the load sensing hydraulics adjusts to load weight ensuring precise control of the mast and fork movements. (In forklifts without intelligent hydraulics, lifting and lowering feels very different when the weight of the load is varied). In addition, passive sway control transfers some of the stresses and forces from the mast to the chassis of the truck allowing for confident control and durability in the mast when raising and lowering loads.

Advanced Hydraulic Technology

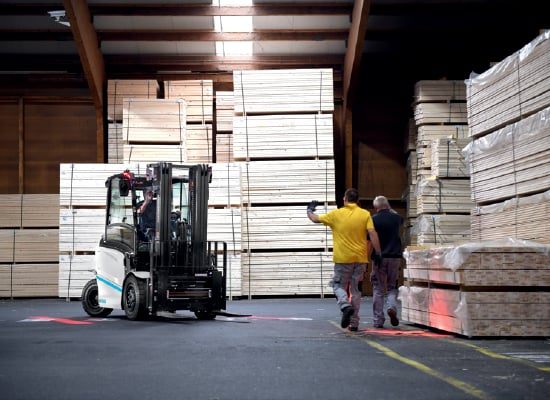

Designed For Maneuverability

MXL Series features 100+° rear turning axle for increased maneuverability and the ability to perform instant “side turns” without the need for initial reverse movement. Intelligent curve control smoothly adjusts truck speed when the truck senses that it is cornering at speed to minimize side forces and protect operator, truck, and load.

Designed For Maneuverability

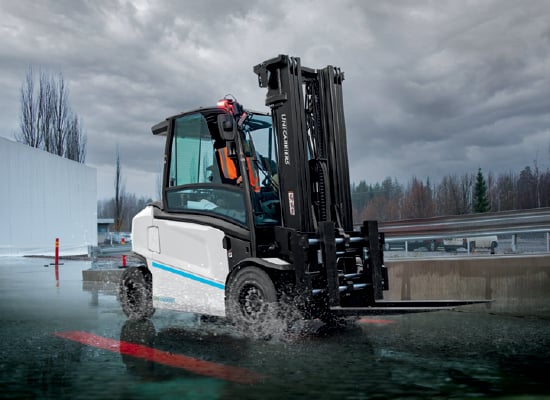

Keeping The Operator In Mind

Electronic differential locks out front wheels to increase traction on slippery surfaces – this is activated automatically at small steering angles or manually via an optional front pedal. Ramp hold automatically activates the parking brake when on a ramp to hold position and prevent rollback when working on a grade and removing foot from accelerator pedal.

Keeping The Operator In Mind

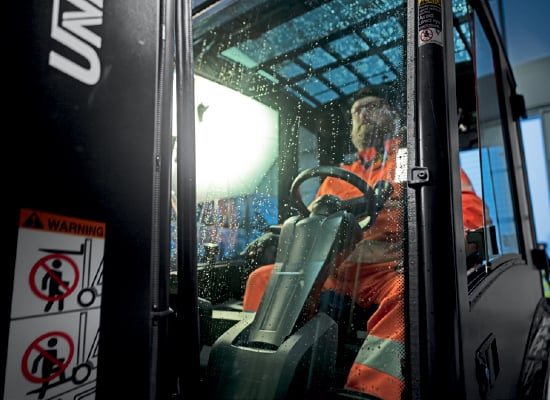

Operator Control And Ergonomics

Engineered with an ergonomic operator compartment in mind, the MXL series includes an optional fingertip control armrest that is fully adjustable, economically designed, and allows for comfortable hand-positioning, anatomical support during operation, and free movement. In addition, a preset ECO and PRO performance modes allow for customization of settings to accommodate the needs of the application and the skill levels of the operators. An optional temperature-controlled cabin quickly heats up or cools down for optimal operator comfort in all weather conditions. Sliding windows on each side of the truck help weatherproof the cabin and aid in visibility.

Operator Control And Ergonomics

Questions? Contact Us Today

Our extensive dealer and field support network is ready to serve you when and where you need us.

Tech Specs

Model Capacity (lb) Lift Height (in) Power Type Length (in) Width (in) Height (in) Weight (lb)
MXL40 9,000 130 80 V 111.2 53.9 92.1 16,071
MXL45 10,000 130 80 V 111.2 53.9 92.1 16,860
MXL50C 11,000 130 80 V 111.2 57 92.1 17,617
MXL50 11,000 130 80 V 116.9 57 92.1 18,401
MXL50H 11,000 130 80 V 117.7 57 92.1 18,677
MXL55H 12,000 130 80 V 117.7 57 92.1 19,204

Full specifications: Brochure (PDF)

Interested in the MXL40-MXL55H?

Our team will help you configure the right truck for your operation, with local parts and service support.

Request Quote +1-417-862-6960

Product information and images courtesy of the manufacturer. Specifications subject to change.
