UniCarriers · Sit-Down Rider · New Model Showroom

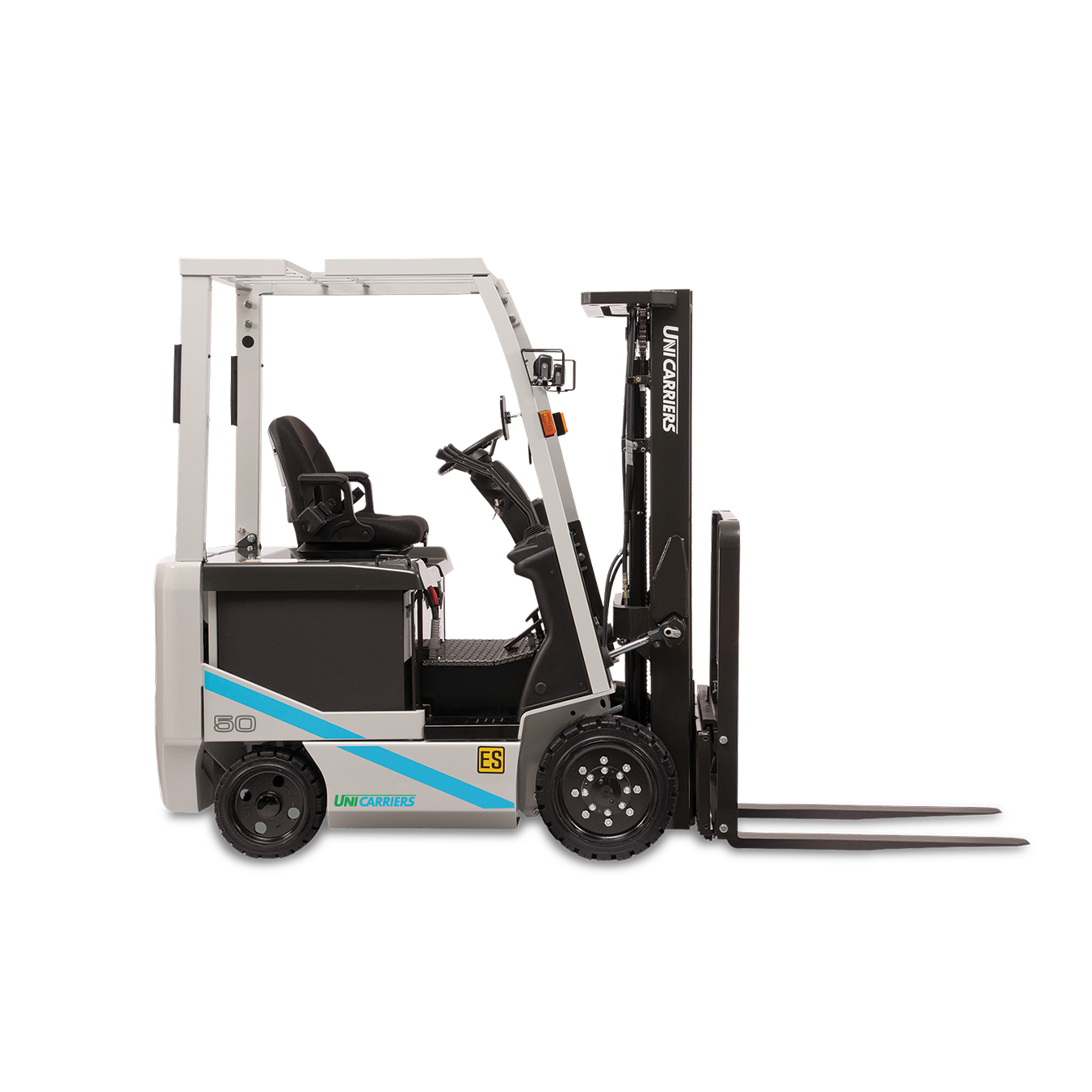

UniCarriers BXC30N-BXC80N Electric Cushion Forklift (3,000-8,000 lbs)
A true workhorse, the electric BX Series combines a capacity of up to 8,000 lbs. and exceptional power efficiency with an advanced feature package that includes self-contained onboard diagnostics and controlled rollback. The BXC30N-BXC80N electric counterbalanced forklift series combines optimal comfort with cutting-edge technology that results in reduced energy consumption and longer run times.
A true workhorse, the electric BX Series combines a capacity of up to 8,000 lbs. and exceptional power efficiency with an advanced feature package that includes self-contained onboard diagnostics and controlled rollback. The BXC30N-BXC80N electric counterbalanced forklift series combines optimal comfort with cutting-edge technology that results in reduced energy consumption and longer run times.
The high-performance BX Series is a versatile lift truck that combines a capacity of up to 8,000 lb and exceptional power efficiency with an advanced feature package that includes self-contained onboard diagnostics and controlled rollback.

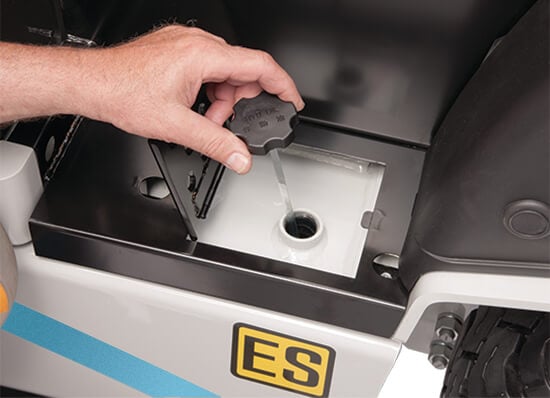

Operators are more likely to perform regular lift truck inspections if they are easy to do. Access to hydraulic and brake fluids is convenient, making daily checks or required refills simple, so operators can focus on the job ahead.

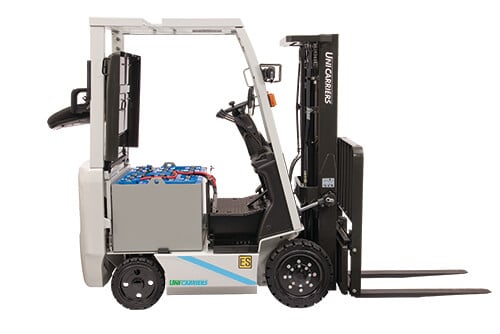

Gas stay assist keeps the hood open nearly 90° making routine battery maintenance and change-outs faster. Optional rollout design further simplifies battery removal.

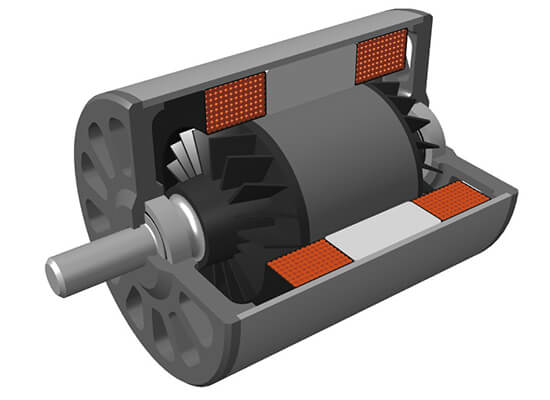

The 100% AC-powered system on the BX features brushless drive and pump motors and a single contactor. The steering system is electronically controlled and powered through the hydraulics, thus eliminating the need for — and added expense of — a separate steering motor.
The lumbar support and weight adjustments create customized comfort for the operator, while a non-cinching seatbelt allows a wider range of movement. The full suspension design absorbs shocks for a smoother, more comfortable ride — and it’s all standard on BX Series four-wheel electric forklifts.
Discover the reliable, versatile BX series of 100% AC Powered Electric, 4-wheel sit-down forklifts in 3,000 to 8,000 lb. capacities!
| Model | Capacity (lb) | Lift Height (in) | Power Type | Length (in) | Width (in) | Height (in) | Weight (lb) |
|---|---|---|---|---|---|---|---|
| BXC30N | 3000 | 130 | 36/48 | 80.9 | 38.2 | 86.2 | 6,550 |
| BXC50LN | 5,000 | 130 | 36/48 | 90.7 | 42.1 | 87.4 | 8,820 |
| BXC65N | 6,500 | 138 | 36/48 | 96.5 | 43.3 | 87.4 | 11,395 |
| BXC40N | 4,000 | 130 | 36/48 | 84.8 | 42.1 | 87.4 | 8,090 |
| BXC40R | 4,000 | 130 | 36/48 | 84.8 | 42.1 | 87.4 | 8,090 |
| BXC50N | 5,000 | 130 | 36/48 | 86.2 | 42.1 | 87.4 | 8,950 |
| BXC50R | 5,000 | 130 | 36/48 | 86.2 | 42.1 | 87.4 | 8,090 |
| BXC60N | 6,000 | 130 | 36/48 | 94.1 | 43.3 | 87.4 | 10,550 |
| BXC35N | 3,500 | 130 | 36/48 | 81.3 | 38.2 | 86.2 | 6,945 |
| BXC80N | 8,000 | 138 | 36/48 | 100.2 | 43.3 | 87.4 | 12,380 |
Full specifications: Spec Sheet (PDF) Brochure (PDF)
Our team will help you configure the right truck for your operation, with local parts and service support.
Product information and images courtesy of the manufacturer. Specifications subject to change.
