Key Features
Lithium-ion rider pallet trucks with single (48 in load center, 96 in forks) or double (24 in load center) pallet configurations.
Heli · Pallet Jack · New Model Showroom
Rider Pallet Truck

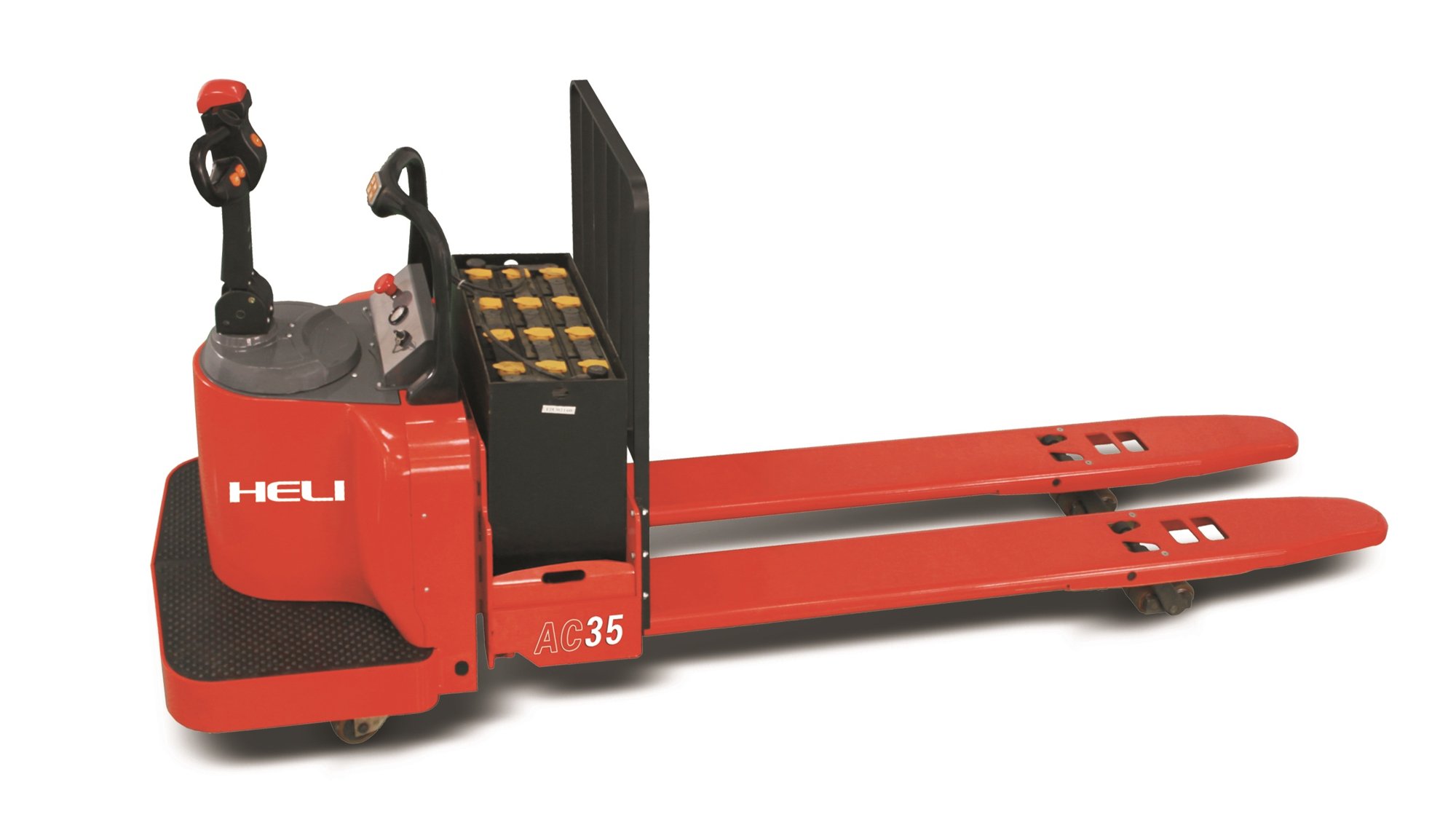

Heli Rider Pallet Truck (6,000-8,000 lbs)
The Heli Rider Pallet Truck (Li-ion) line includes 4 models with capacities of 6,000-8,000 lbs. Lithium-ion rider pallet trucks with single (48 in load center, 96 in forks) or double (24 in load center) pallet configurations.
- CBD35-510LI / CBD35-520LI / CBD40-510LI / CBD40-520LI
- Rider Pallet Truck (Li-ion)
- Battery: 24/150, 24/202
- 6,000 / 8,000 lbs
Overview
Heli Rider Pallet Truck (Li-ion)
The Heli Rider Pallet Truck (Li-ion) line includes 4 models with capacities of 6,000-8,000 lbs. Lithium-ion rider pallet trucks with single (48 in load center, 96 in forks) or double (24 in load center) pallet configurations.
- Load Capacity
- 6,000-8,000 lbs
- Travel Speed Up To
- 8.7 mph
- Battery
- 24V Lithium-ion
- Min. Turning Radius
- 86.2-106.6 in
Features
Models in the Series
- CBD35-510LI – 6000/7000 lbs
- CBD35-520LI – 6000/7000 lbs
- CBD40-510LI – 8000 lbs
- CBD40-520LI – 8000 lbs
Power & Drive
- Driving Motor (hp): AC 5.6
- Battery Voltage/Capacity (V/Ah): 24/150, 24/202
- Controller: ZAPI
- Battery Weight (lbs): 666
- Service Weight with Battery (lbs): 2521 / 2284 / 2624 / 2344
Tech Specs
| Specification | CBD35-510LI | CBD35-520LI | CBD40-510LI | CBD40-520LI |
|---|---|---|---|---|
| Loading Capacity (lbs) | 6000/7000 | 6000/7000 | 8000 | 8000 |
| Load Center (in) | 48 | 24 | 48 | 24 |
| Operating Type | Rider | Rider | Rider | Rider |
| Wheel Type | PU | PU | PU | PU |
| Max. Lifting Height (in) | 9 | 9 | 9 | 9 |
| Overall Fork Width (in) | 27.0/7.09 | 27.0/8.66 | 27.0/7.09 | 27.0/8.66 |
| Fork Length (in) | 96 | 48/54/60 | 96 | 48/54/60 |
| Overall Length (in) | 141.9 | 93.5 | 141.9 | 93.5 |
| Overall Width (in) | 36.6 | 36.6 | 36.6 | 36.6 |
| Overall Height (with handle) (in) | 60.47 | 60.47 | 60.47 | 60.47 |
| Min. Turning Radius (in) | 106.61 | 86.22 | 106.61 | 86.22 |
| Min. Aisle Width, pallets 1000 x 1200 (in) | 143.7 | 99.84 | 143.7 | 99.84 |
| Travel Speed (mph) | 6.8/8.7 | 6.8/8.7 | 5.0/5.0 | 5.0/5.0 |
| Lift Speed (fpm) | 6.9/7.9 | 6.9/7.9 | 6.9/9.8 | 6.9/9.8 |
| Driving Motor (hp) | AC 5.6 | AC 5.6 | AC 5.6 | AC 5.6 |
| Battery Voltage/Capacity (V/Ah) | 24/150, 24/202 | 24/150, 24/202 | 24/150, 24/202 | 24/150, 24/202 |
| Controller | ZAPI | ZAPI | ZAPI | ZAPI |
| Battery Weight (lbs) | 666 | 666 | 666 | 666 |
| Service Weight with Battery (lbs) | 2521 | 2284 | 2624 | 2344 |

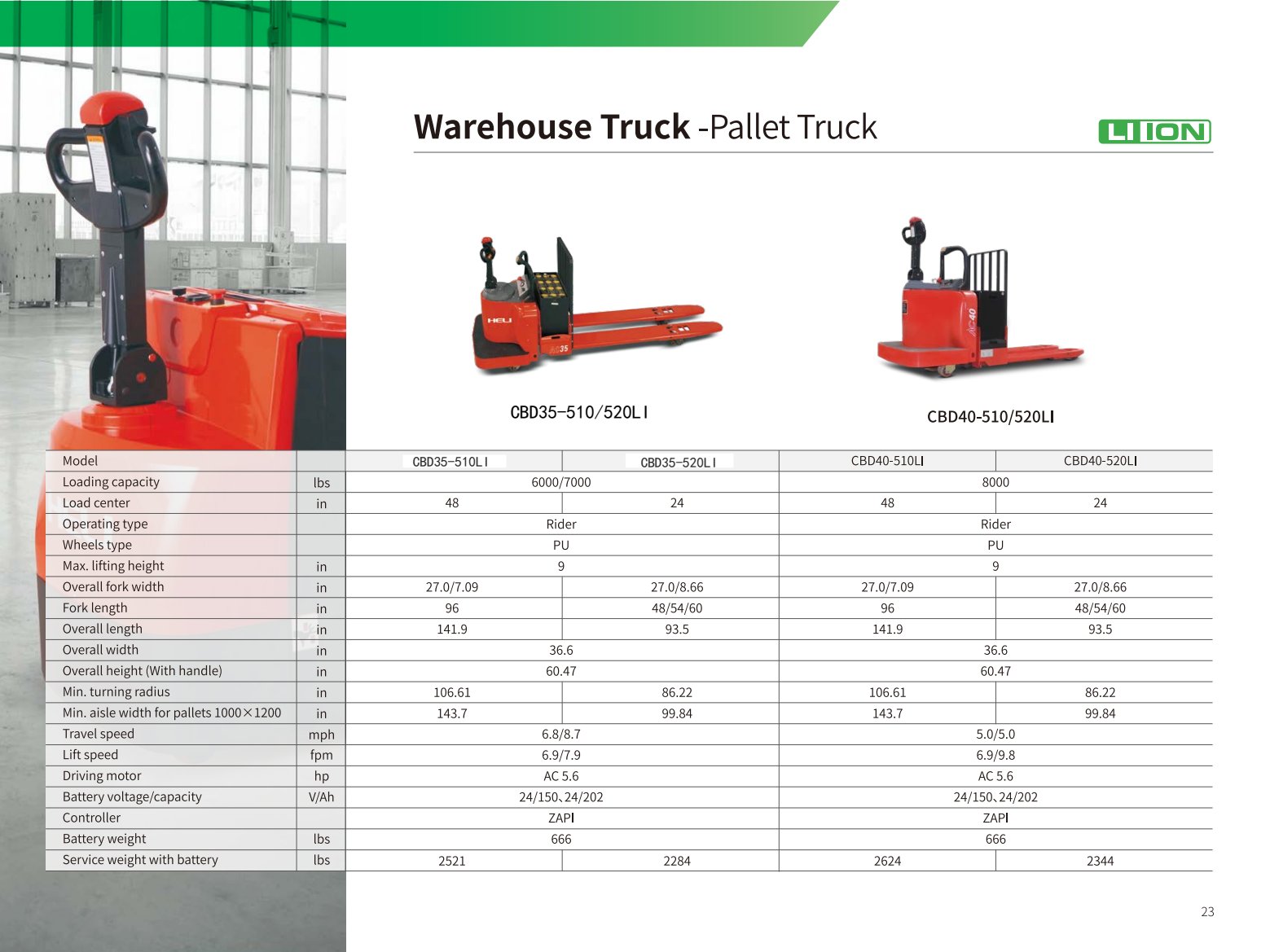

Full specifications: Spec Sheet (PDF)
Interested in the Rider Pallet Truck?
Our team will help you configure the right truck for your operation, with local parts and service support.
Product information and images courtesy of the manufacturer. Specifications subject to change.
