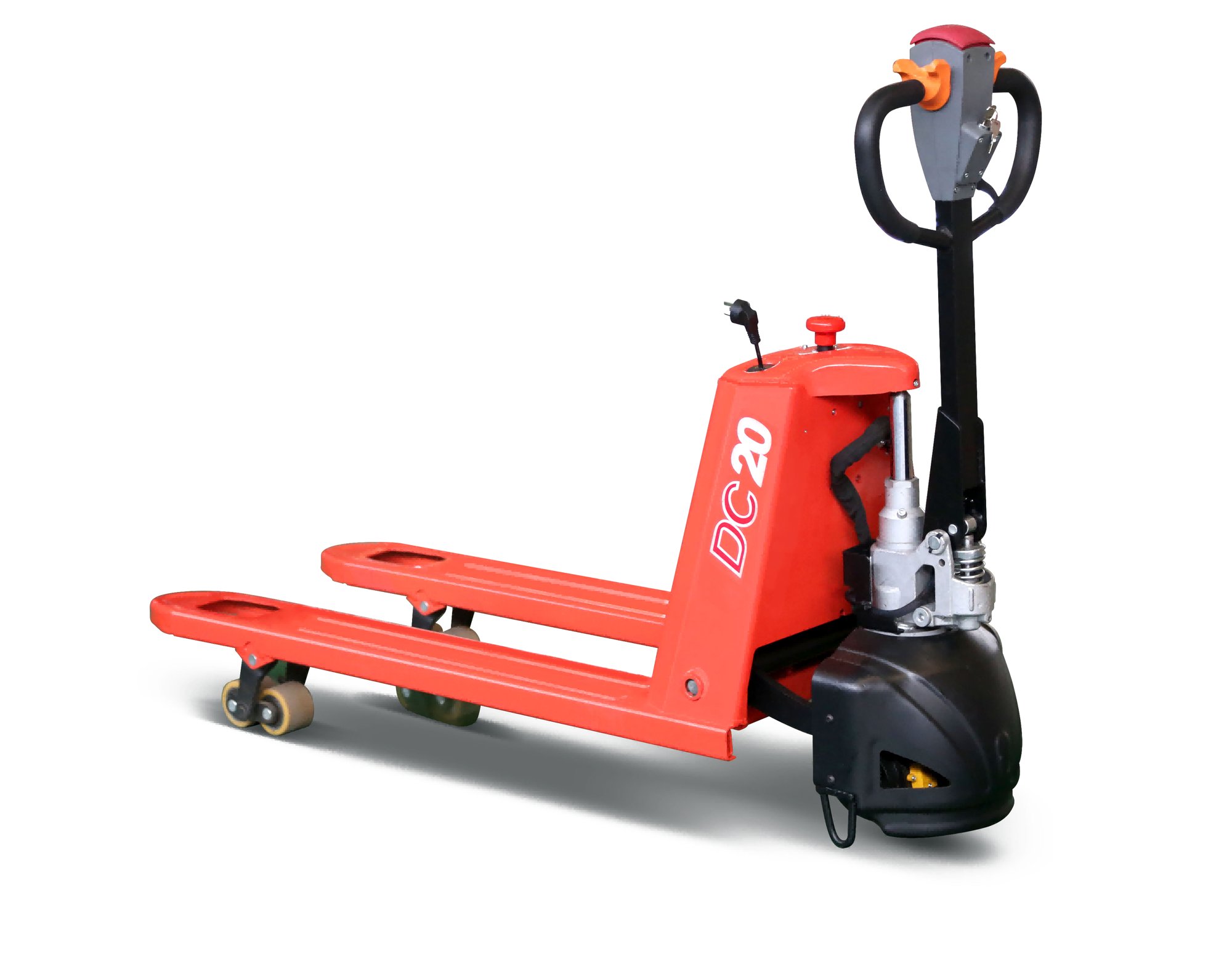

Heli Mini Walkie Electric Pallet Jack (4,400 lbs)
The Heli Semi-electric Pallet Truck line includes 1 model with capacities of 4,400 lbs. Simple, nimble semi-electric pallet truck with a small turning radius and low weight, suitable for very narrow aisles. Compact, reliable structure with wiring enclosed in the body. Integrated handle with key switch and battery meter. Easy-to-remove front cover and battery. Emergency stop and emergency reverse as standard. Power-off braking when the handle is released or pressed down, plus electromagnetic and motor braking. Built-in charger as standard.
The Heli Semi-electric Pallet Truck line includes 1 model with capacities of 4,400 lbs. Simple, nimble semi-electric pallet truck with a small turning radius and low weight, suitable for very narrow aisles. Compact, reliable structure with wiring enclosed in the body. Integrated handle with key switch and battery meter. Easy-to-remove front cover and battery. Emergency stop and emergency reverse as standard. Power-off braking when the handle is released or pressed down, plus electromagnetic and motor braking. Built-in charger as standard.
Simple, nimble semi-electric pallet truck with a small turning radius and low weight, suitable for very narrow aisles. Compact, reliable structure with wiring enclosed in the body. Integrated handle with key switch and battery meter. Easy-to-remove front cover and battery. Emergency stop and emergency reverse as standard. Power-off braking when the handle is released or pressed down, plus electromagnetic and motor braking. Built-in charger as standard.
| Specification | CBD20J-B |
|---|---|
| Type of Operation | Pedestrian |
| Rated Capacity (lbs) | 4,400 (2,000 kg) |
| Lift Height (in) | 7.9 (200 mm) |
| Service Weight with Battery (lbs) | 342 (155 kg) |
| Load Center (in) | 23.6 (600 mm) |
| Wheelbase (in) | 48.9 (1,243 mm) |
| Controller | CURTIS |
| Wheel Type | Polyurethane |
| Drive / Load Wheel Size (mm) | 210 x 70 / 80 x 60 |
| Overall Length (in) | 63.8 (1,620 mm) |
| Overall Width (in) | 21.7/27.0 (550/685 mm) |
| Fork Dimensions (s/e/l) (mm) | 50/150/1150 |
| Lowered Height (in) | 3.3 (85 mm) |
| Aisle Width, pallet 1000 x 1200 across forks (in) | 71.9 (1,825 mm) |
| Min. Turning Radius (in) | 55.7 (1,415 mm) |
| Travel Speed, with/without load (mph) | 2.6/2.8 (4.2/4.5 km/h) |
| Max. Gradeability, laden/unladen (%) | 3/10 |
| Service Brake | Electromagnetic |
| Drive Motor, S2 60 min (kW) | 0.75 |
| Battery Voltage/Rated Capacity (V/Ah) | 24/32 |
| Charger | 24V/5A (built-in) |
| Drive Control / Steering | DC / Mechanical |
| Noise Level (dB(A)) | 70 or less |

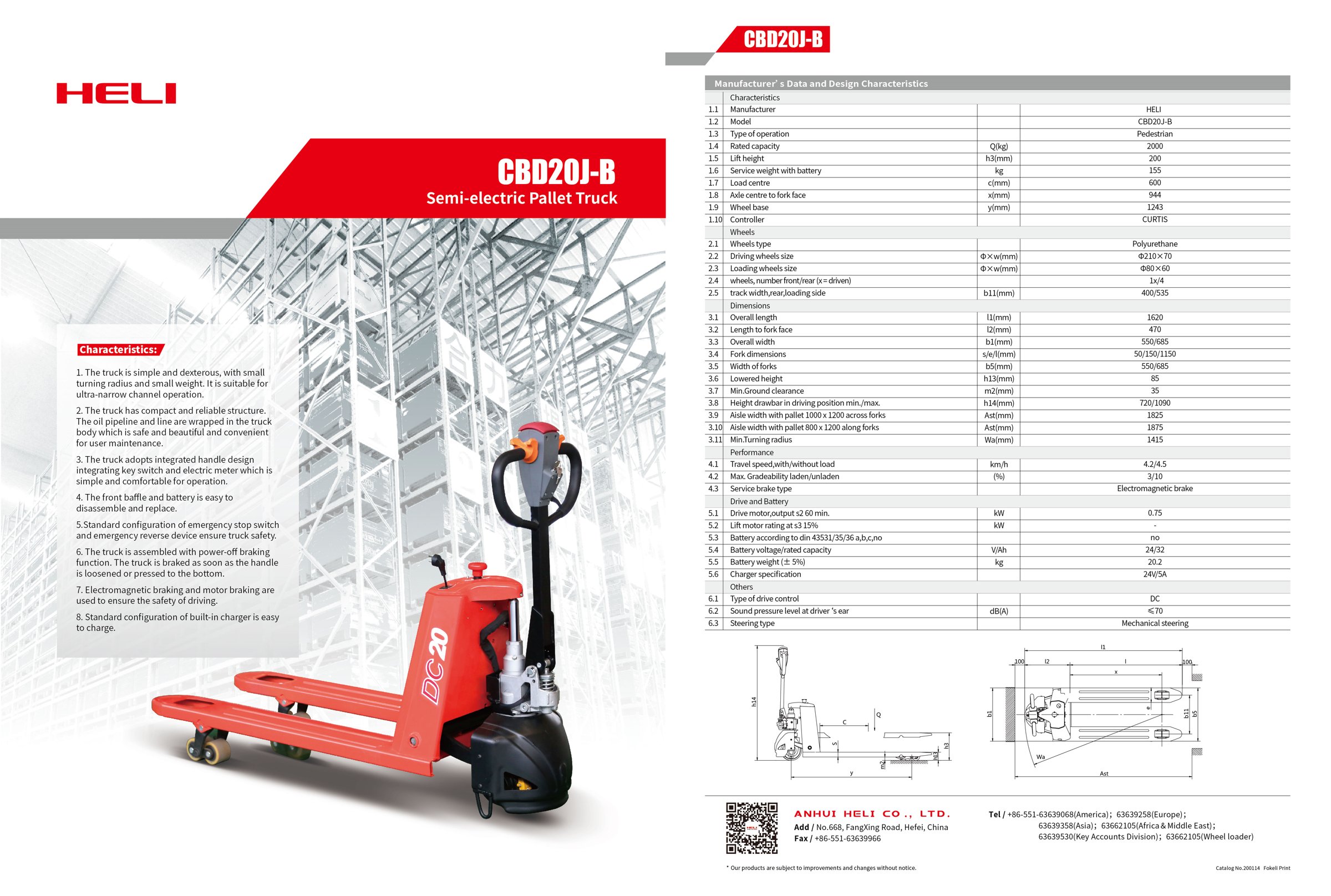

Full specifications: Spec Sheet (PDF)
Our team will help you configure the right truck for your operation, with local parts and service support.
Product information and images courtesy of the manufacturer. Specifications subject to change.
