Key Features
Compact 24V three-wheel design that can enter elevators.
Heli · Sit-Down Rider · New Model Showroom

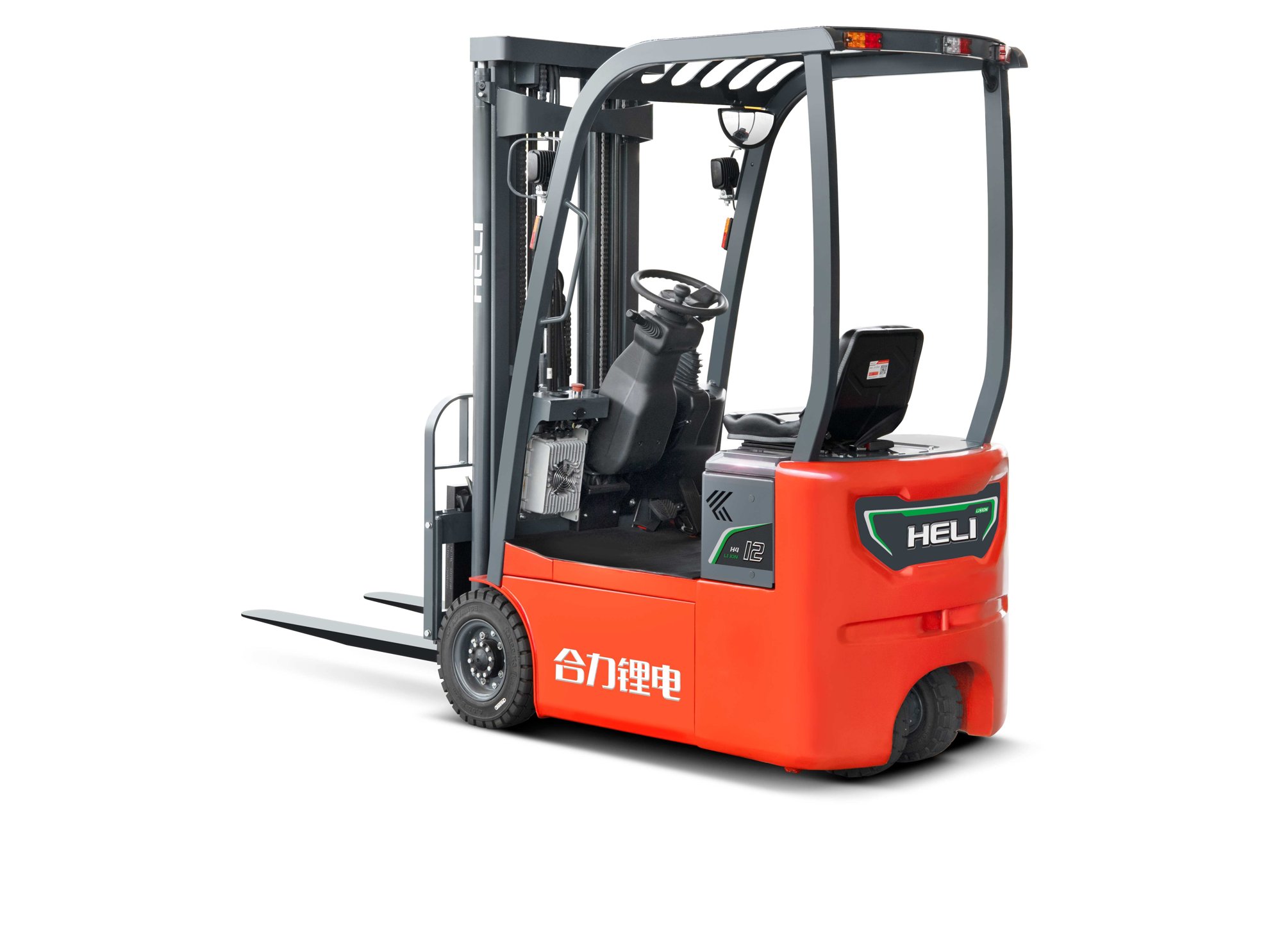

24V Electric Lithium-ion 3-Wheel Forklift
Heli H4 Series 24V Electric Lithium-ion 3-Wheel Forklift (1,300-2,000 lbs)
The Heli H4 Series Three Wheel Forklift (Li-ion) 24V line includes 3 models with capacities of 1,300-2,000 lbs. Compact 24V three-wheel design that can enter elevators.
- CPD08SQ / CPD10SQ / CPD12SQ
- Three Wheel Forklift (Li-ion) 24V
- Battery: 24/250
- 1,300 / 1,700 / 2,000 lbs
- Forklifts can enter elevators
Overview
Heli H4 Series Three Wheel Forklift (Li-ion) 24V
The Heli H4 Series Three Wheel Forklift (Li-ion) 24V line includes 3 models with capacities of 1,300-2,000 lbs. Compact 24V three-wheel design that can enter elevators.
- Load Capacity
- 1,300-2,000 lbs
- Travel Speed Up To
- 7 mph
- Battery
- 24V Lithium-ion
- Overhead Guard Height
- 77 in
Features
Models in the Series
- CPD08SQ – 1300 lbs
- CPD10SQ – 1700 lbs
- CPD12SQ – 2000 lbs
Power & Drive
- Total Weight (with/without battery) (lbs): 3682/3428 / 4100/3847 / 4387/4123
- Battery Voltage/Rated Capacity (V/Ah): 24/250
- Drive Motor, 60 min rating (HP): 4
- Pump Motor, 15 min rating (HP): 6
- Drive Motor Control Mode: MOSFET/AC
- Controller: CURTIS
- Charger: 1PH/110V
Tech Specs
| Specification | CPD08SQ | CPD10SQ | CPD12SQ |
|---|---|---|---|
| Configuration Number | A1LIH4 | A1LIH4 | A1LIH4 |
| Load Capacity (lbs) | 1300 | 1700 | 2000 |
| Load Center (in) | 24 | 24 | 24 |
| Overhead Guard Height (in) | 77 | 77 | 77 |
| Overall Length (without fork) (in) | 66 | 66 | 67 |
| Overall Width (in) | 35 | 35 | 35 |
| Min. Outside Turning Radius (in) | 58 | 59 | 59 |
| Total Weight (with/without battery) (lbs) | 3682/3428 | 4100/3847 | 4387/4123 |
| Tire Size (front/rear) (in) | 4-8/5-5 | 4-8/4-5 | 4-8/4-5 |
| Travel Speed, loaded/unloaded (mph) | 6/7 | 6/7 | 6/7 |
| Lifting Speed, loaded/unloaded (fpm) | 49/75 | 47/75 | 45/75 |
| Max. Gradeability, loaded/unloaded (%) | 13/15 | 12/15 | 10/15 |
| Battery Voltage/Rated Capacity (V/Ah) | 24/250 | 24/250 | 24/250 |
| Drive Motor, 60 min rating (HP) | 4 | 4 | 4 |
| Pump Motor, 15 min rating (HP) | 6 | 6 | 6 |
| Drive Motor Control Mode | MOSFET/AC | MOSFET/AC | MOSFET/AC |
| Controller | CURTIS | CURTIS | CURTIS |
| Charger | 1PH/110V | 1PH/110V | 1PH/110V |

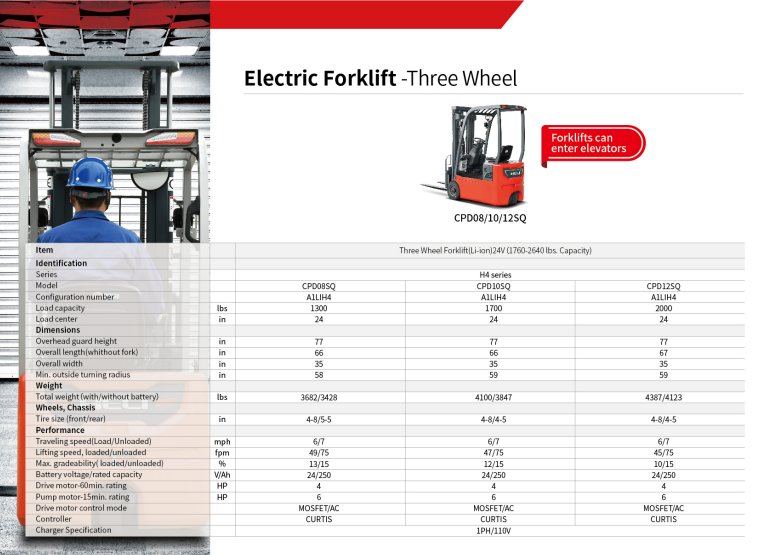

Full specifications: Spec Sheet (PDF)
Interested in the 24V Electric Lithium-ion 3-Wheel Forklift?
Our team will help you configure the right truck for your operation, with local parts and service support.
Product information and images courtesy of the manufacturer. Specifications subject to change.
