Key Features
H3 series LPG pneumatic tire forklifts with Kubota or PSI engines. Dual fuel is optional.
Heli · Sit-Down Rider · New Model Showroom
LPG Pneumatic Tire Forklift
Heli H3 Series LPG Pneumatic Tire Forklift (4,000-7,000 lbs)
The Heli H3 Series LPG Forklift - Pneumatic Tire line includes 4 models with capacities of 4,000-7,000 lbs. H3 series LPG pneumatic tire forklifts with Kubota or PSI engines. Dual fuel is optional.
- CP(Q)YD20 / CP(Q)YD25 / CP(Q)YD30 / CP(Q)YD35
- LPG Forklift - Pneumatic Tire
- Engine: Kubota or PSI / Kubota
- 4,000 / 5,000 / 6,000 / 7,000 lbs
- Normal duty
Overview
Heli H3 Series LPG Forklift - Pneumatic Tire
The Heli H3 Series LPG Forklift - Pneumatic Tire line includes 4 models with capacities of 4,000-7,000 lbs. H3 series LPG pneumatic tire forklifts with Kubota or PSI engines. Dual fuel is optional.
- Load Capacity
- 4,000-7,000 lbs
- Travel Speed Up To
- 11.8 mph
- Engine
- Kubota or PSI / Kubota
- Overall Height
- 84.7-85.5 in
Features
Models in the Series
- CP(Q)YD20 – 4000 lbs
- CP(Q)YD25 – 5000 lbs
- CP(Q)YD30 – 6000 lbs
- CP(Q)YD35 – 7000 lbs
Power & Drive
- Engine: Kubota or PSI / Kubota
- Engine Rated Power (HP/rpm): GAS: 57.4/2600, LPG: 58.3/2600 (Kubota); GAS: 64.3/2700, LPG: 61.6/2700 (PSI) / GAS: 57.4/2600, LPG: 58.3/2600
- Engine Cylinders: 4
Available Options
- Dual fuel

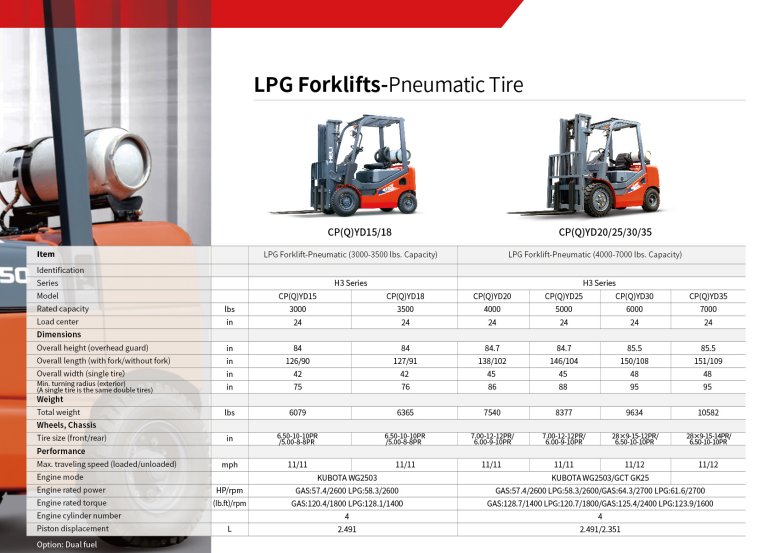

Tech Specs
| Specification | CP(Q)YD20 | CP(Q)YD25 | CP(Q)YD30 | CP(Q)YD35 |
|---|---|---|---|---|
| Rated Capacity (lbs) | 4000 | 5000 | 6000 | 7000 |
| Load Center (in) | 24 | 24 | 24 | 24 |
| Overall Height (overhead guard) (in) | 84.7 | 84.7 | 85.5 | 85.5 |
| Overall Length (with/without fork) (in) | 137.8/101.7 | 146/103.9 | 150.3/108.3 | 151/109 |
| Overall Width (single tire) (in) | 45.3 | 45.3 | 48.3 | 48.3 |
| Min. Turning Radius (exterior) (in) | 85.5 | 88.3 | 94.6 | 95.3 |
| Total Weight (lbs) | 7540 | 8377 | 9634 | 10582 |
| Tire Size (front/rear) (in) | 7.00-12-12PR/6.00-9-10PR | 7.00-12-12PR/6.00-9-10PR | 28x9-15-12PR/6.50-10-10PR | 28x9-15-14PR/6.50-10-10PR |
| Max. Travel Speed, loaded/unloaded (mph) | 10.6/11.2 | 10.6/11.2 | 11.2/11.8 | 11.2/11.8 |
| Engine | Kubota or PSI | Kubota or PSI | Kubota or PSI | Kubota |
| Engine Rated Power (HP/rpm) | GAS: 57.4/2600, LPG: 58.3/2600 (Kubota); GAS: 64.3/2700, LPG: 61.6/2700 (PSI) | GAS: 57.4/2600, LPG: 58.3/2600 (Kubota); GAS: 64.3/2700, LPG: 61.6/2700 (PSI) | GAS: 57.4/2600, LPG: 58.3/2600 (Kubota); GAS: 64.3/2700, LPG: 61.6/2700 (PSI) | GAS: 57.4/2600, LPG: 58.3/2600 |
| Engine Cylinders | 4 | 4 | 4 | 4 |
| Piston Displacement (L) | 2.491/2.351 | 2.491/2.351 | 2.491/2.351 | 2.491/2.351 |
Full specifications: Spec Sheet (PDF)
Interested in the LPG Pneumatic Tire Forklift?
Our team will help you configure the right truck for your operation, with local parts and service support.
Product information and images courtesy of the manufacturer. Specifications subject to change.
