Key Features
H3 series LPG pneumatic tire forklifts powered by the Kubota WG2503. Dual fuel is optional.
Heli · Sit-Down Rider · New Model Showroom
LPG Pneumatic Tire Forklift

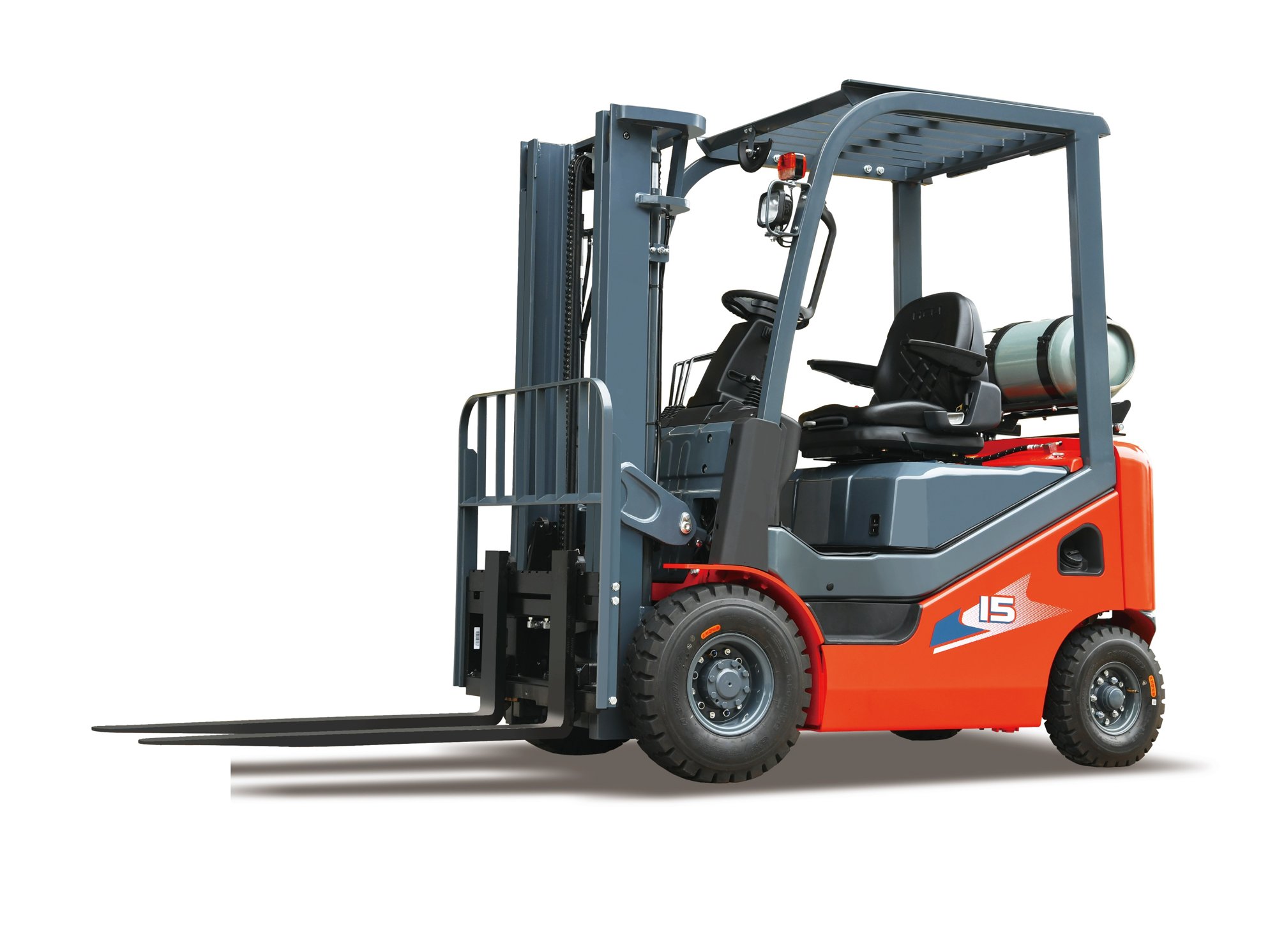

Heli H3 Series LPG Pneumatic Tire Forklift (3,000-3,500 lbs)
The Heli H3 Series LPG Forklift - Pneumatic Tire line includes 2 models with capacities of 3,000-3,500 lbs. H3 series LPG pneumatic tire forklifts powered by the Kubota WG2503. Dual fuel is optional.
- CP(Q)YD15 / CP(Q)YD18
- LPG Forklift - Pneumatic Tire
- Engine: Kubota WG2503
- 3,000 / 3,500 lbs
- Normal duty
Overview
Heli H3 Series LPG Forklift - Pneumatic Tire
The Heli H3 Series LPG Forklift - Pneumatic Tire line includes 2 models with capacities of 3,000-3,500 lbs. H3 series LPG pneumatic tire forklifts powered by the Kubota WG2503. Dual fuel is optional.
- Load Capacity
- 3,000-3,500 lbs
- Travel Speed Up To
- 11.2 mph
- Engine
- Kubota WG2503
- Overall Height
- 84 in
Features
Models in the Series
- CP(Q)YD15 – 3000 lbs
- CP(Q)YD18 – 3500 lbs
Power & Drive
- Engine: Kubota WG2503
- Engine Rated Power (HP/rpm): GAS: 57.4/2600, LPG: 58.3/2600
- Engine Rated Torque (lb-ft/rpm): GAS: 120.4/1800, LPG: 128.1/1400
- Engine Cylinders: 4
Available Options
- Dual fuel
Tech Specs
| Specification | CP(Q)YD15 | CP(Q)YD18 |
|---|---|---|
| Rated Capacity (lbs) | 3000 | 3500 |
| Load Center (in) | 24 | 24 |
| Overall Height (overhead guard) (in) | 84 | 84 |
| Overall Length (with/without fork) (in) | 126.0/89.8 | 126.7/90.5 |
| Overall Width (single tire) (in) | 42.1 | 42.1 |
| Min. Turning Radius (exterior) (in) | 75.2 | 76.0 |
| Total Weight (lbs) | 6079 | 6365 |
| Tire Size (front/rear) (in) | 6.50-10-10PR/5.00-8-8PR | 6.50-10-10PR/5.00-8-8PR |
| Max. Travel Speed, loaded/unloaded (mph) | 10.6/11.2 | 10.6/11.2 |
| Engine | Kubota WG2503 | Kubota WG2503 |
| Engine Rated Power (HP/rpm) | GAS: 57.4/2600, LPG: 58.3/2600 | GAS: 57.4/2600, LPG: 58.3/2600 |
| Engine Rated Torque (lb-ft/rpm) | GAS: 120.4/1800, LPG: 128.1/1400 | GAS: 120.4/1800, LPG: 128.1/1400 |
| Engine Cylinders | 4 | 4 |
| Piston Displacement (L) | 2.491 | 2.491 |

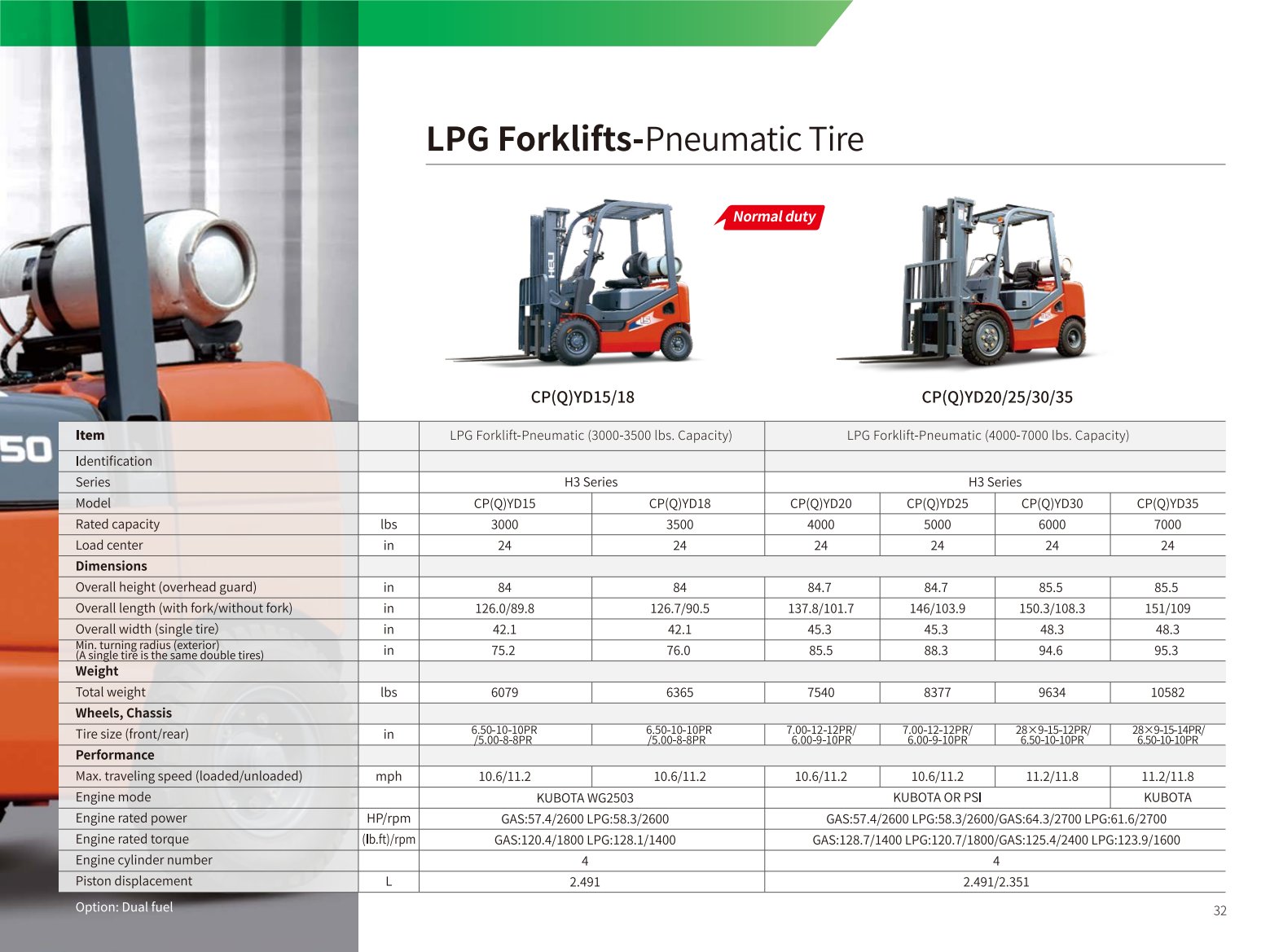

Full specifications: Spec Sheet (PDF)
Interested in the LPG Pneumatic Tire Forklift?
Our team will help you configure the right truck for your operation, with local parts and service support.
Product information and images courtesy of the manufacturer. Specifications subject to change.
