Key Features
Kubota WG3800-powered LPG cushion tire forklifts, also offered as boxcar (BCS) models with a tighter turning radius. Dual fuel is optional.
Heli · Sit-Down Rider · New Model Showroom
LPG Cushion Tire Forklift
Heli H3 Series LPG Cushion Tire Forklift (8,000-10,000 lbs)
The Heli H3C Series LPG Forklift - Cushion Tire line includes 4 models with capacities of 8,000-10,000 lbs. Kubota WG3800-powered LPG cushion tire forklifts, also offered as boxcar (BCS) models with a tighter turning radius. Dual fuel is optional.
- CPYD40C / CPYD50C / CPYD40C BCS (boxcar) / CPYD50C BCS (boxcar)
- LPG Forklift - Cushion Tire
- Engine: Kubota WG3800
- 8,000 / 10,000 lbs
Overview
Heli H3C Series LPG Forklift - Cushion Tire
The Heli H3C Series LPG Forklift - Cushion Tire line includes 4 models with capacities of 8,000-10,000 lbs. Kubota WG3800-powered LPG cushion tire forklifts, also offered as boxcar (BCS) models with a tighter turning radius. Dual fuel is optional.
- Load Capacity
- 8,000-10,000 lbs
- Travel Speed Up To
- 11.8 mph
- Engine
- Kubota WG3800
- Overall Height
- 85.8 in
Features
Models in the Series
- CPYD40C – 8000 lbs
- CPYD50C – 10000 lbs
- CPYD40C BCS (boxcar) – 8000 lbs
- CPYD50C BCS (boxcar) – 10000 lbs
Power & Drive
- Engine: Kubota WG3800
- Engine Rated Power (HP/rpm): LPG: 84.8/2400 / 84.8/2400
- Engine Rated Torque (ft-lb/rpm): LPG: 208.3/1200 / 208.3/1200
- Engine Cylinders: 4
Available Options
- Dual fuel
Tech Specs
| Specification | CPYD40C | CPYD50C | CPYD40C BCS (boxcar) | CPYD50C BCS (boxcar) |
|---|---|---|---|---|
| Rated Capacity (lbs) | 8000 | 10000 | 8000 | 10000 |
| Load Center (in) | 24 | 24 | 24 | 24 |
| Overall Height (overhead guard) (in) | 85.8 | 85.8 | 85.8 | 85.8 |
| Overall Length (with/without fork) (in) | 153/105 | 157/109 | 153/105 | 157/109 |
| Overall Width (single tire) (in) | 50 | 55.9 | 50 | 55.9 |
| Min. Turning Radius (exterior) (in) | 91 | 95 | 84.6 | 88.2 |
| Total Weight (lbs) | 13690 | 15498 | 13790 | 15810 |
| Tire Size (front/rear) (in) | 22x9-16/18x7-12.125 | 22x12-16/18x7-12.125 | 22x9-16/18x7-12.125 | 22x12-16/18x7-12.125 |
| Max. Travel Speed, loaded/unloaded (mph) | 11.8/11.8 | 11.8/11.8 | 10.5/11.2 | 10.5/11.2 |
| Engine | Kubota WG3800 | Kubota WG3800 | Kubota WG3800 | Kubota WG3800 |
| Engine Rated Power (HP/rpm) | LPG: 84.8/2400 | LPG: 84.8/2400 | 84.8/2400 | 84.8/2400 |
| Engine Rated Torque (ft-lb/rpm) | LPG: 208.3/1200 | LPG: 208.3/1200 | 208.3/1200 | 208.3/1200 |
| Engine Cylinders | 4 | 4 | 4 | 4 |
| Piston Displacement (L) | 3.77 | 3.77 | 3.77 | 3.77 |

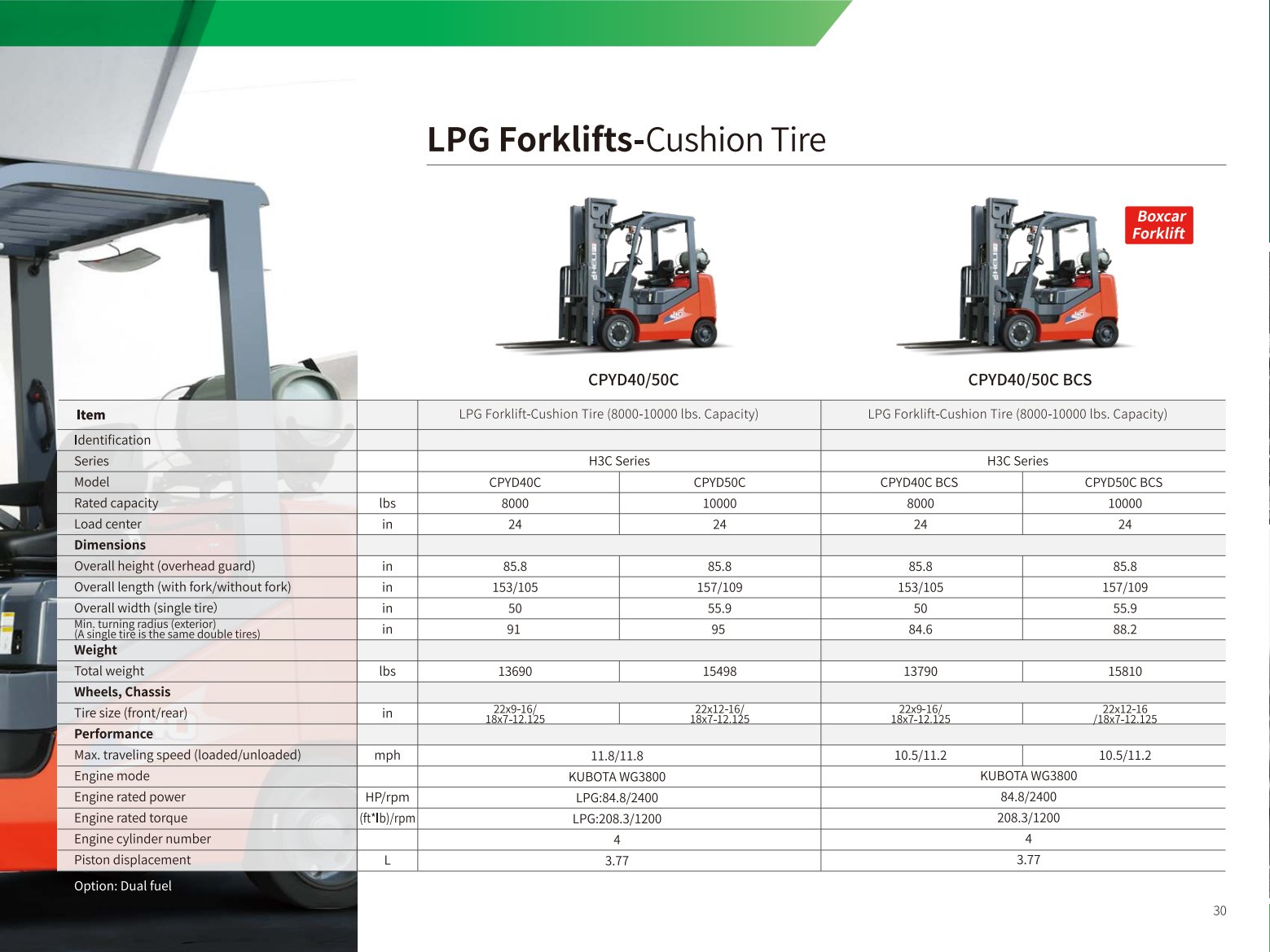

Full specifications: Spec Sheet (PDF)
Interested in the LPG Cushion Tire Forklift?
Our team will help you configure the right truck for your operation, with local parts and service support.
Product information and images courtesy of the manufacturer. Specifications subject to change.
