Key Features
H3C series LPG cushion tire forklifts with Kubota or PSI engines, including the compact CPYD20CS. Dual fuel is optional.
Heli · Sit-Down Rider · New Model Showroom
LPG Cushion Tire Forklift

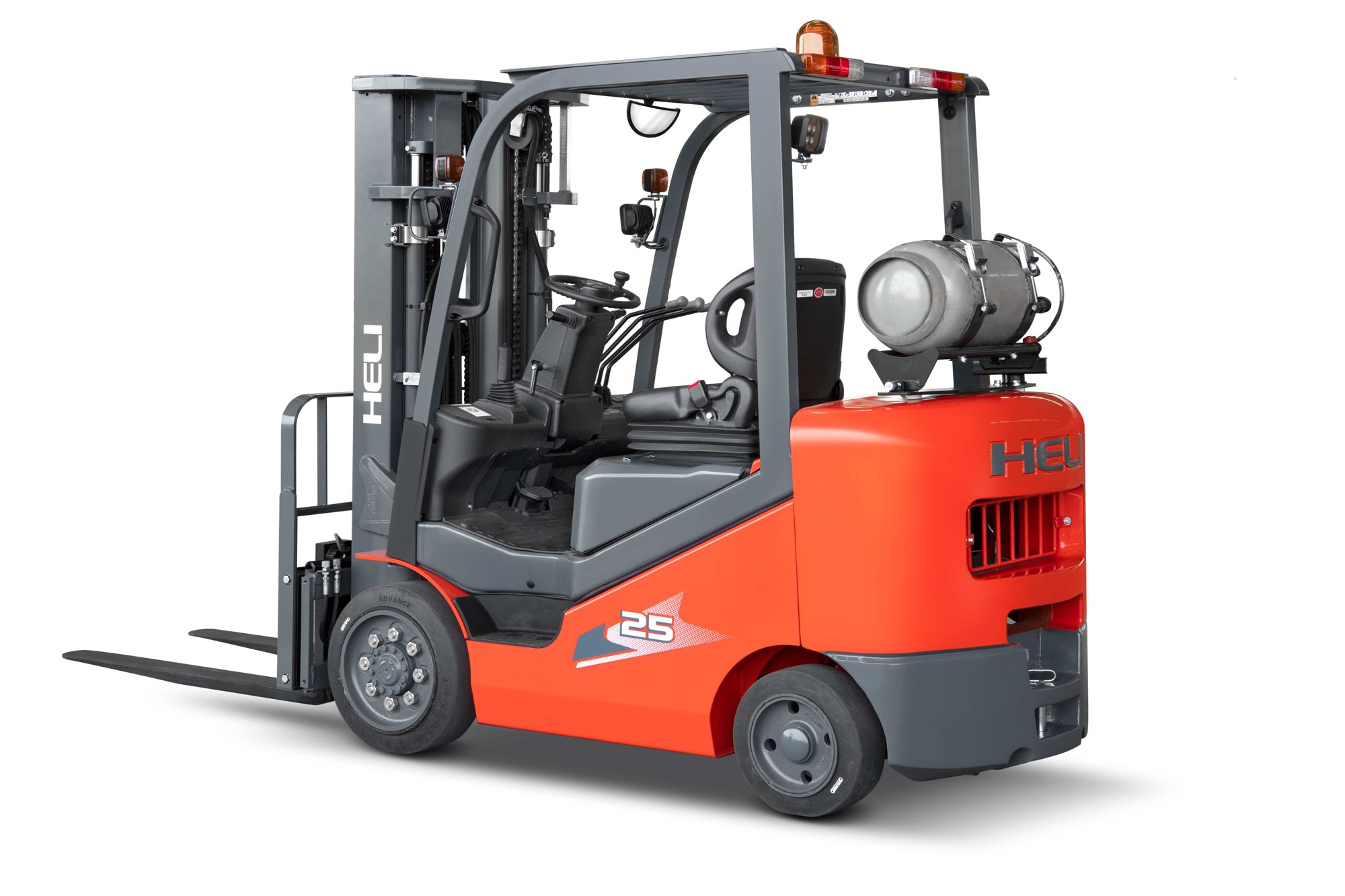

Heli H3 Series LPG Cushion Tire Forklift (3,000-6,500 lbs)
The Heli H3C Series LPG Forklift - Cushion Tire line includes 7 models with capacities of 3,000-6,500 lbs. H3C series LPG cushion tire forklifts with Kubota or PSI engines, including the compact CPYD20CS. Dual fuel is optional.
- 7 models: CPYD15C to CPYD32C
- LPG Forklift - Cushion Tire
- Engine: Kubota WG2503 / Kubota or PSI / Kubota
- 3,000 / 3,500 / 4,000 / 5,000 / 6,000 / 6,500 lbs
Overview
Heli H3C Series LPG Forklift - Cushion Tire
The Heli H3C Series LPG Forklift - Cushion Tire line includes 7 models with capacities of 3,000-6,500 lbs. H3C series LPG cushion tire forklifts with Kubota or PSI engines, including the compact CPYD20CS. Dual fuel is optional.
- Load Capacity
- 3,000-6,500 lbs
- Travel Speed Up To
- 10.8 mph
- Engine
- Kubota WG2503 / Kubota or PSI
- Overall Height
- 82.7-83 in
Features
Models in the Series
- CPYD15C – 3000 lbs
- CPYD18C – 3500 lbs
- CPYD20CS – 4000 lbs
- CPYD20C – 4000 lbs
- CPYD25C – 5000 lbs
- CPYD30C – 6000 lbs
- CPYD32C – 6500 lbs

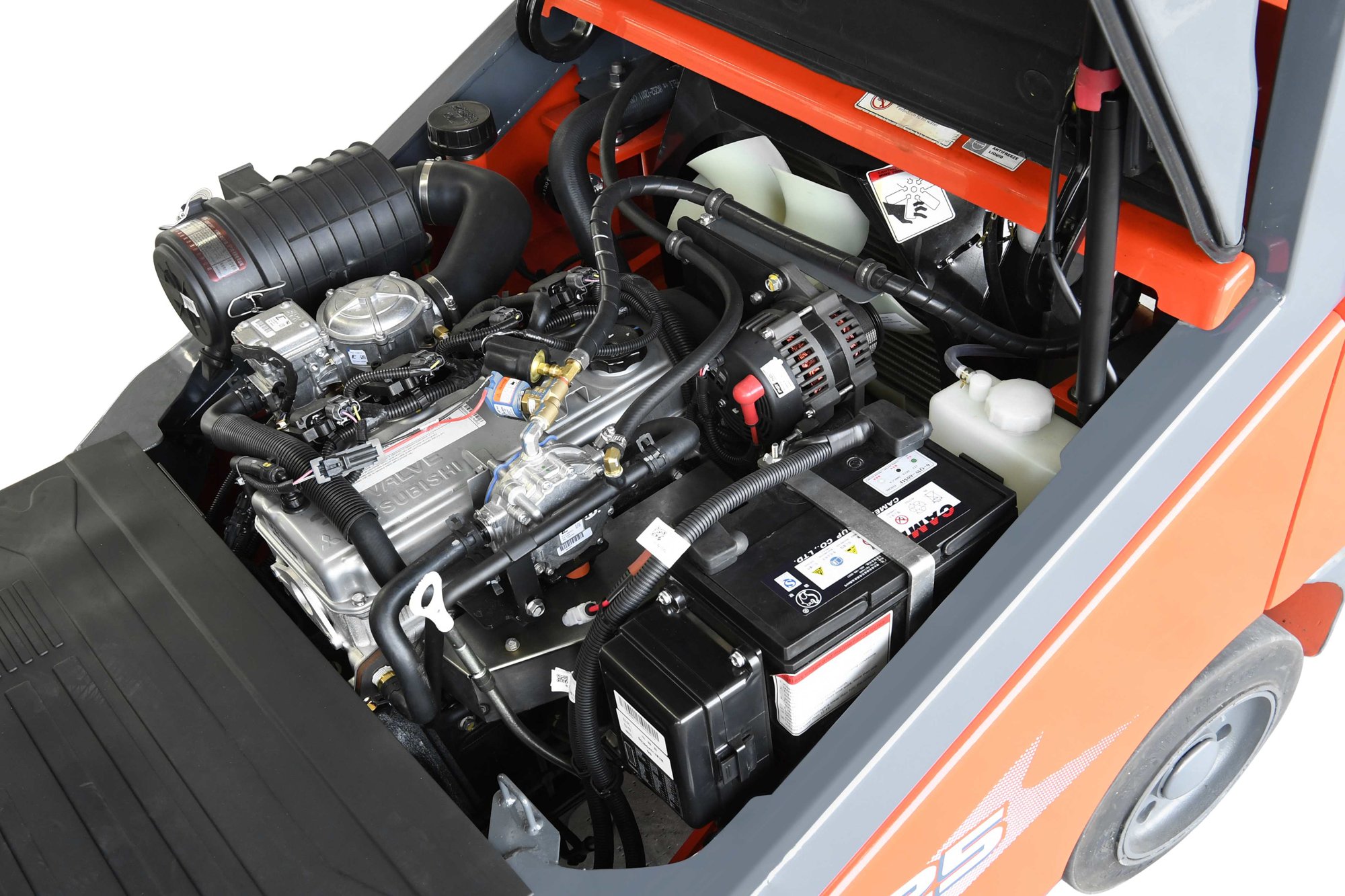

Power & Drive
- Engine: Kubota WG2503 / Kubota or PSI / Kubota
- Engine Rated Power (HP/rpm): LPG: 58.3/2600 / GAS: 57.4/2600, LPG: 58.3/2600 (Kubota); GAS: 64.3/2700, LPG: 61.6/2700 (PSI) / GAS: 57.4/2600, LPG: 58.3/2600
- Engine Cylinders: 4
Available Options
- Dual fuel
Tech Specs
| Specification | CPYD15C | CPYD18C | CPYD20CS | CPYD20C | CPYD25C | CPYD30C | CPYD32C |
|---|---|---|---|---|---|---|---|
| Rated Capacity (lbs) | 3000 | 3500 | 4000 | 4000 | 5000 | 6000 | 6500 |
| Load Center (in) | 24 | 24 | 24 | 24 | 24 | 24 | 24 |
| Overall Height (overhead guard) (in) | 82.7 | 82.7 | 82.7 | 83.0 | 83.0 | 83.0 | 83.0 |
| Overall Length (with/without fork) (in) | - | - | - | 128.7/92.5 | 136.8/94.5 | 140/97.8 | 141/99 |
| Overall Width (single tire) (in) | 37.6 | 37.6 | 37.6 | 42.0 | 42.0 | 44.0 | 44.0 |
| Min. Turning Radius (exterior) (in) | 68.5 | 70.9 | 71.7 | 76 | 78.7 | 80.7 | 81.9 |
| Total Weight (lbs) | 6283 | 6724 | 7231 | 8466 | 9480 | 10725 | 11067 |
| Tire Size (front/rear) (in) | 18x6x12.125/14x5x10 | 18x6x12.125/14x5x10 | 18x6x12.125/14x5x10 | 21x7-15/16x6-10.5 | 21x7-15/16x6-10.5 | 21x8-15/16x6-10.5 | 21x8-15/16x6-10.5 |
| Max. Travel Speed, loaded/unloaded (mph) | 9.9/9.9 | 9.9/9.9 | 9.9/9.9 | 10.8/10.8 | 10.8/10.8 | 10.8/10.8 | 10.8/10.8 |
| Engine | Kubota WG2503 | Kubota WG2503 | Kubota WG2503 | Kubota or PSI | Kubota or PSI | Kubota or PSI | Kubota |
| Engine Rated Power (HP/rpm) | LPG: 58.3/2600 | LPG: 58.3/2600 | LPG: 58.3/2600 | GAS: 57.4/2600, LPG: 58.3/2600 (Kubota); GAS: 64.3/2700, LPG: 61.6/2700 (PSI) | GAS: 57.4/2600, LPG: 58.3/2600 (Kubota); GAS: 64.3/2700, LPG: 61.6/2700 (PSI) | GAS: 57.4/2600, LPG: 58.3/2600 (Kubota); GAS: 64.3/2700, LPG: 61.6/2700 (PSI) | GAS: 57.4/2600, LPG: 58.3/2600 |
| Engine Cylinders | 4 | 4 | 4 | 4 | 4 | 4 | 4 |
| Piston Displacement (L) | 2.491 | 2.491 | 2.491 | 2.491/2.351 | 2.491/2.351 | 2.491/2.351 | 2.491/2.351 |

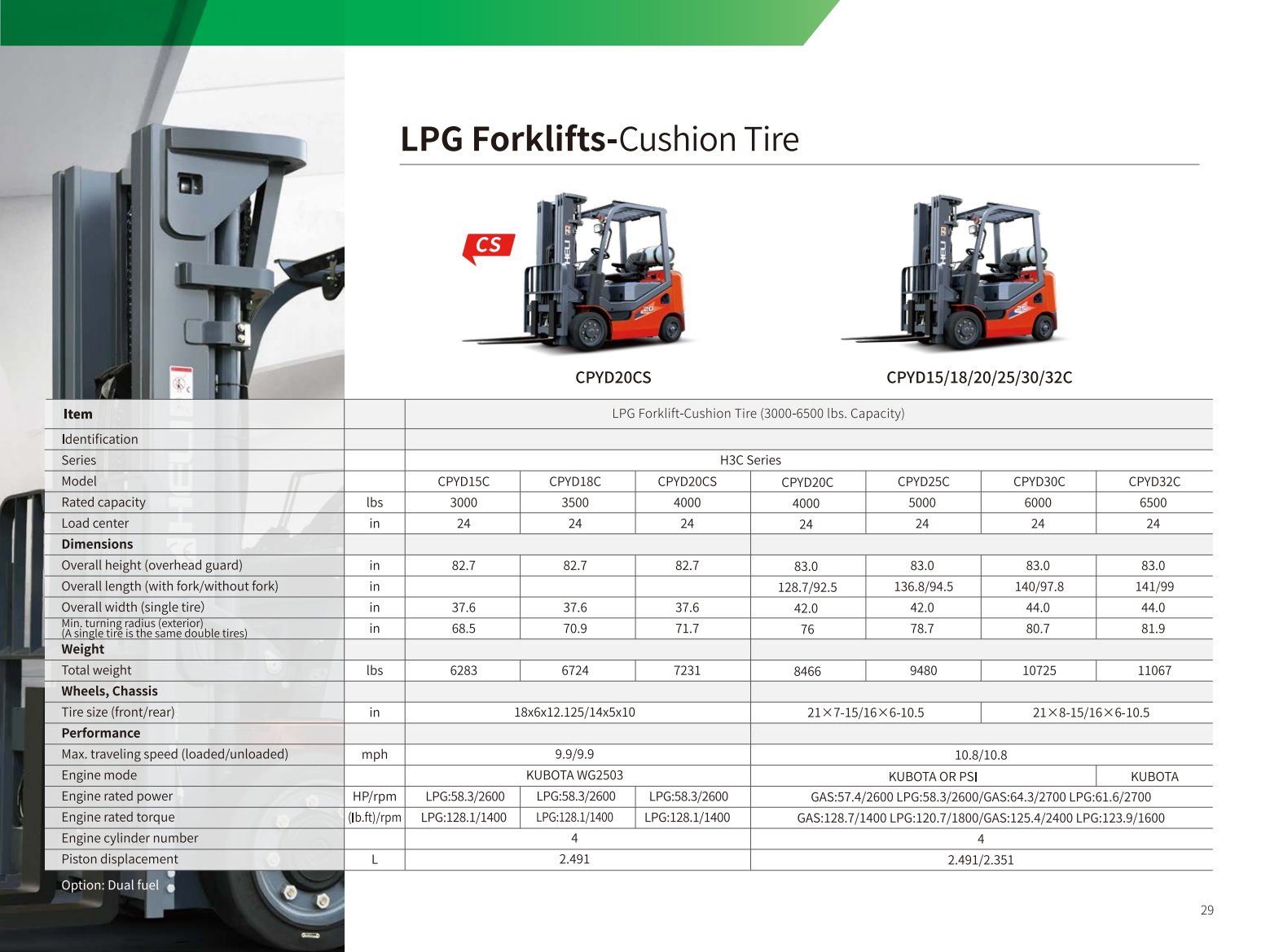

Full specifications: Spec Sheet (PDF)
Interested in the LPG Cushion Tire Forklift?
Our team will help you configure the right truck for your operation, with local parts and service support.
Product information and images courtesy of the manufacturer. Specifications subject to change.
