H3 series diesel pneumatic forklifts with Tier 4 Final Kubota V2403 engines.
Heli · Sit-Down Rider · New Model Showroom
Diesel Pneumatic Tire Forklift

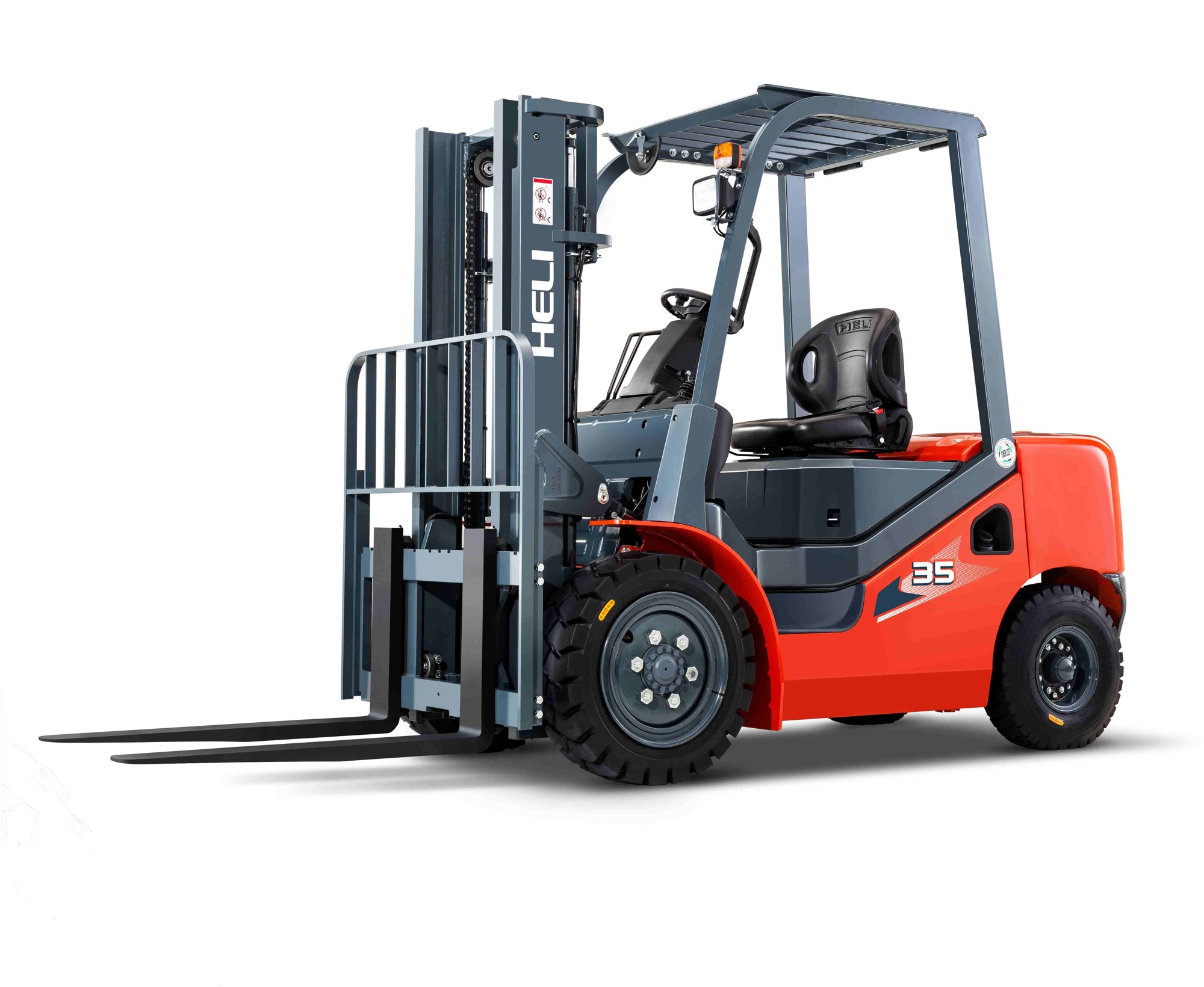

Heli H3 Series Diesel Pneumatic Tire Forklift (3,000-7,000 lbs)
The Heli H3 Series Diesel Forklift - Pneumatic line includes 6 models with capacities of 3,000-7,000 lbs. H3 series diesel pneumatic forklifts with Tier 4 Final Kubota V2403 engines.
- CPCD15 / CPCD18 / CPCD20 / CPCD25 / CPCD30 / CPCD35
- Diesel Forklift - Pneumatic
- Engine: Kubota V2403 / Kubota V2403-CR-TE5B
- 3,000 / 3,500 / 4,000 / 5,000 / 6,000 / 7,000 lbs
- Normal duty
Overview
Heli H3 Series Diesel Forklift - Pneumatic
The Heli H3 Series Diesel Forklift - Pneumatic line includes 6 models with capacities of 3,000-7,000 lbs. H3 series diesel pneumatic forklifts with Tier 4 Final Kubota V2403 engines.
- Load Capacity
- 3,000-7,000 lbs
- Travel Speed Up To
- 11.8 mph
- Engine
- Kubota V2403 / Kubota V2403-CR-TE5B
- Overall Height
- 84-85.5 in
Features
Models in the Series
- CPCD15 – 3000 lbs
- CPCD18 – 3500 lbs
- CPCD20 – 4000 lbs
- CPCD25 – 5000 lbs
- CPCD30 – 6000 lbs
- CPCD35 – 7000 lbs
Power & Drive
- Engine: Kubota V2403 / Kubota V2403-CR-TE5B
- Engine Rated Power (HP/rpm): 45.1/2400 / 57.9/2400
- Engine Rated Torque (lb-ft/rpm): 116/1600 / 146.4/1600
- Emission Standard: T4F
- Engine Cylinders: 4
Tech Specs
| Specification | CPCD15 | CPCD18 | CPCD20 | CPCD25 | CPCD30 | CPCD35 |
|---|---|---|---|---|---|---|
| Rated Capacity (lbs) | 3000 | 3500 | 4000 | 5000 | 6000 | 7000 |
| Load Center (in) | 24 | 24 | 24 | 24 | 24 | 24 |
| Overall Height (overhead guard) (in) | 84 | 84 | 84.7 | 84.7 | 85.5 | 85.5 |
| Overall Length (with/without fork) (in) | 126.0/89.8 | 126.7/90.5 | 137.8/101.7 | 146/103.9 | 150.3/108.3 | 151/109 |
| Overall Width (single tire) (in) | 42.1 | 42.1 | 45.3 | 45.3 | 48.3 | 48.3 |
| Min. Turning Radius (exterior) (in) | 75.2 | 76.0 | 85.5 | 88.3 | 94.6 | 95.3 |
| Total Weight (lbs) | 6079 | 6365 | 7540 | 8377 | 9634 | 10582 |
| Tire Size (front/rear) (in) | 6.50-10-10PR/5.00-8-8PR | 6.50-10-10PR/5.00-8-8PR | 7.00-12-12PR/6.00-9-10PR | 7.00-12-12PR/6.00-9-10PR | 28x9-15-12PR/6.50-10-10PR | 28x9-15-14PR/6.50-10-10PR |
| Max. Travel Speed, loaded/unloaded (mph) | 10.6/11.2 | 10.6/11.2 | 10.6/11.8 | 10.6/11.8 | 11.2/11.8 | 11.8/11.8 |
| Engine | Kubota V2403 | Kubota V2403 | Kubota V2403-CR-TE5B | Kubota V2403-CR-TE5B | Kubota V2403-CR-TE5B | Kubota V2403-CR-TE5B |
| Engine Rated Power (HP/rpm) | 45.1/2400 | 45.1/2400 | 57.9/2400 | 57.9/2400 | 57.9/2400 | 57.9/2400 |
| Engine Rated Torque (lb-ft/rpm) | 116/1600 | 116/1600 | 146.4/1600 | 146.4/1600 | 146.4/1600 | 146.4/1600 |
| Emission Standard | T4F | T4F | T4F | T4F | T4F | T4F |
| Engine Cylinders | 4 | 4 | 4 | 4 | 4 | 4 |
| Piston Displacement (L) | 2.434 | 2.434 | 2.434 | 2.434 | 2.434 | 2.434 |

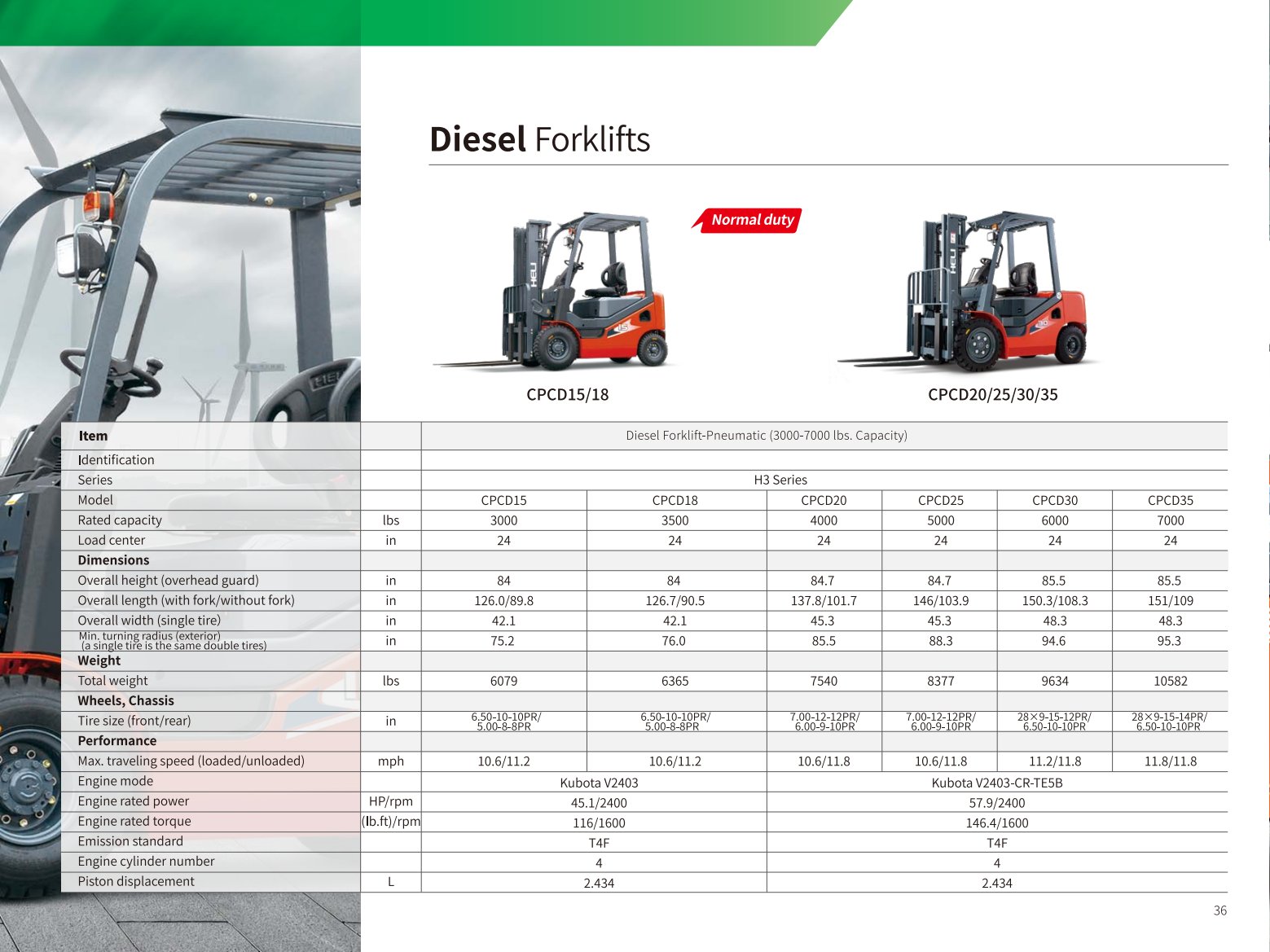

Full specifications: Spec Sheet (PDF)
