Key Features
H series lithium-ion walkie pallet jack, 3,300-4,400 lbs, weighing under 400 lbs with a 54 in turning radius.
Heli · Pallet Jack · New Model Showroom
Walkie Pallet Jack

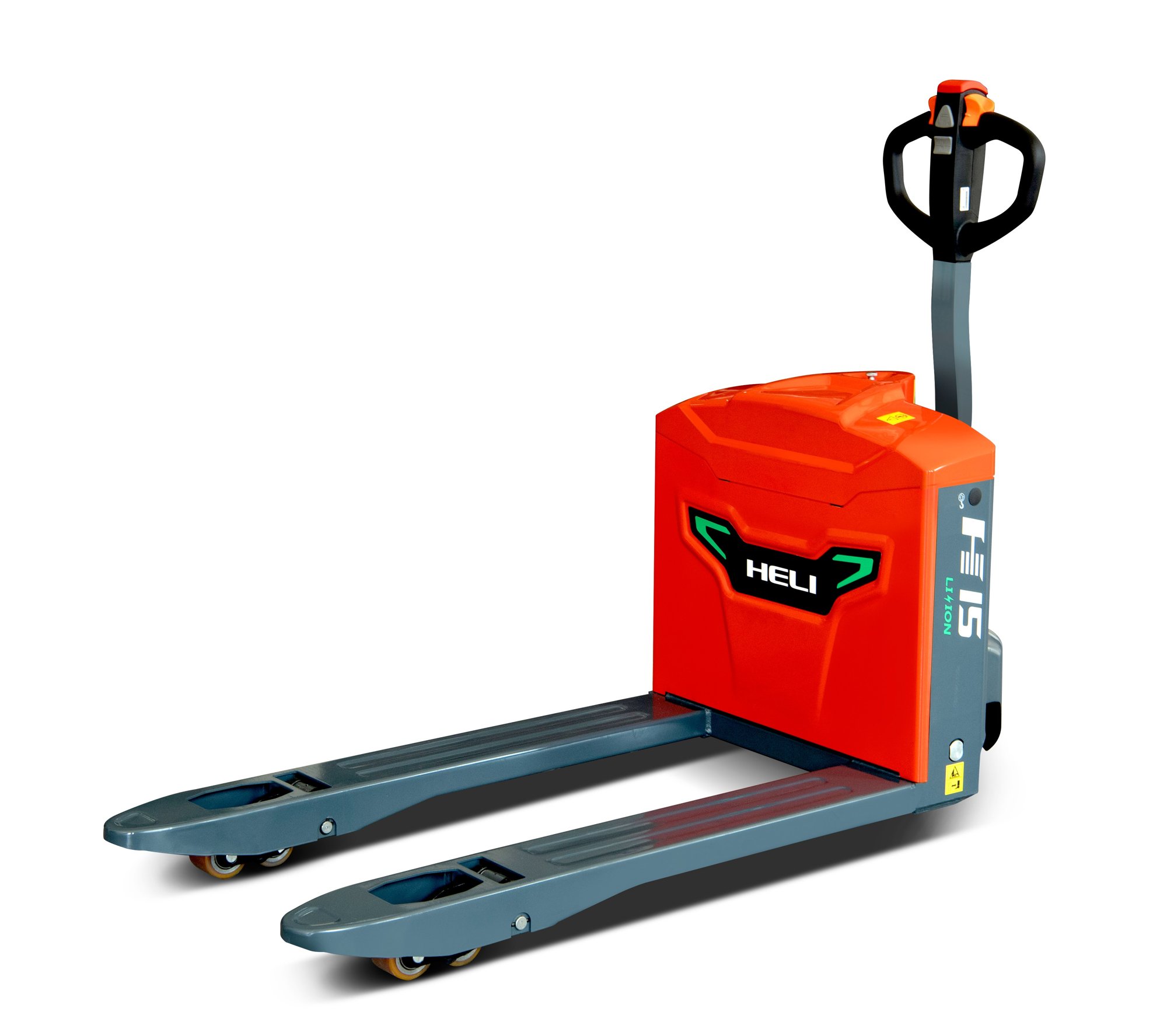

Heli H Series Walkie Pallet Jack (3,300-4,400 lbs)
The Heli H Series H Series Electric Pallet Jack (Li-ion) line includes 2 models with capacities of 3,300-4,400 lbs. H series lithium-ion walkie pallet jack, 3,300-4,400 lbs, weighing under 400 lbs with a 54 in turning radius.
- CBD15-BLIH / CBD20-BLIH
- H Series Electric Pallet Jack (Li-ion)
- Battery: 24V (40/50/60Ah) / 48V (20/30Ah)
- 3,300 / 4,400 lbs
Overview
Heli H Series H Series Electric Pallet Jack (Li-ion)
The Heli H Series H Series Electric Pallet Jack (Li-ion) line includes 2 models with capacities of 3,300-4,400 lbs. H series lithium-ion walkie pallet jack, 3,300-4,400 lbs, weighing under 400 lbs with a 54 in turning radius.
- Load Capacity
- 3,300-4,400 lbs
- Travel Speed Up To
- 3 mph
- Battery
- 24V / 48V Lithium-ion
- Lift Height Up To
- 4 in
Features
Models in the Series
- CBD15-BLIH – 3300 lbs
- CBD20-BLIH – 4400 lbs
Power & Drive
- Battery Voltage/Rated Capacity (V/Ah): 24V (40/50/60Ah) / 48V (20/30Ah)
- Battery Weight (lbs): 18 / 26
- Charger: 24V/15A / 48V/9A
- Driving / Lifting Motor (hp): 1 / 1 / 1.34 / 1
- Controller: SUWEI / QEXPAND
- Total Weight (with battery) (lbs): 385/396
Tech Specs
| Specification | CBD15-BLIH | CBD20-BLIH |
|---|---|---|
| Type of Operation | Pedestrian propelled | Pedestrian propelled |
| Rated Capacity (lbs) | 3300 | 4400 |
| Load Center (in) | 24 | 24 |
| Lift Height (in) | 4 | 4 |
| Wheelbase (in) | 47 | 47 |
| Tire Type | Polyurethane | Polyurethane |
| Overall Length (in) | 63 | 63 |
| Overall Width (in) | 27 | 27 |
| Fork Dimensions (in) | 2 x 6 x 47 | 2 x 6 x 47 |
| Width of Forks (in) | 27 | 27 |
| Lowered Height (in) | 3 | 3 |
| Aisle Width, pallet 39 x 47 across forks (in) | 71 | 71 |
| Min. Turning Radius (in) | 54 | 54 |
| Travel Speed, laden/unladen (mph) | 3/3 | 3/3 |
| Lift Speed, laden/unladen (fpm) | 5/8 | 4/6 |
| Max. Gradeability, laden/unladen (%) | 6/16 | 6/16 |
| Service Brake | Electromagnetic | Electromagnetic |
| Battery Voltage/Rated Capacity (V/Ah) | 24V (40/50/60Ah) | 48V (20/30Ah) |
| Battery Weight (lbs) | 18 | 26 |
| Charger | 24V/15A | 48V/9A |
| Driving / Lifting Motor (hp) | 1 / 1 | 1.34 / 1 |
| Controller | SUWEI | QEXPAND |
| Total Weight (with battery) (lbs) | 385/396 | 385/396 |
| Drive Control / Steering | DC / Manual | DC / Manual |
| Noise Level (dB(A)) | 69 or less | 69 or less |

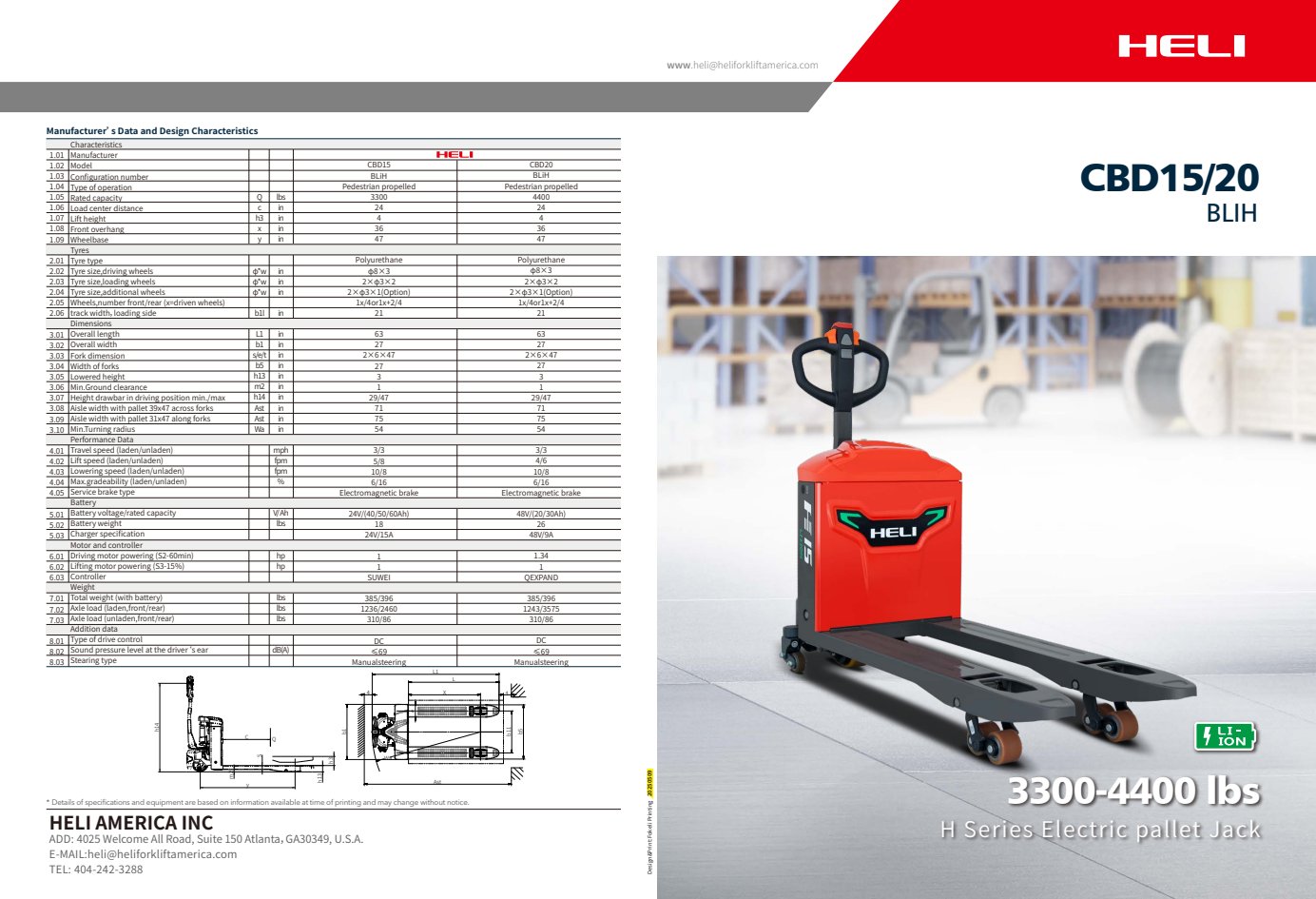

Full specifications: Spec Sheet (PDF)
Interested in the Walkie Pallet Jack?
Our team will help you configure the right truck for your operation, with local parts and service support.
Product information and images courtesy of the manufacturer. Specifications subject to change.
