Key Features
New truck-mounted (piggyback) forklift that rides on the back of a delivery truck for unloading at the job site; 6,600 lb capacity with a Kubota diesel engine.
Heli · Sit-Down Rider · New Model Showroom
Truck Mounted Forklift
Heli G3 Series Truck Mounted Forklift (6,600 lbs)
The Heli G3 Series Truck-Mounted Forklift line includes 1 model with capacities of 6,600 lbs. New truck-mounted (piggyback) forklift that rides on the back of a delivery truck for unloading at the job site; 6,600 lb capacity with a Kubota diesel engine.
- CQCJ30-KUY3G3
- Truck-Mounted Forklift
- Engine: Kubota V2607-CR-EW03
- 6,600 lbs
Overview
Heli G3 Series Truck-Mounted Forklift
The Heli G3 Series Truck-Mounted Forklift line includes 1 model with capacities of 6,600 lbs. New truck-mounted (piggyback) forklift that rides on the back of a delivery truck for unloading at the job site; 6,600 lb capacity with a Kubota diesel engine.
- Load Capacity
- 6,600 lbs
- Travel Speed Up To
- 8.1 mph
- Engine
- Kubota V2607-CR-EW03
- Overall Height
- 100.4 in
Features
Models in the Series
- CQCJ30-KUY3G3 – 6600 lbs
Power & Drive
- Engine: Kubota V2607-CR-EW03
- Engine Rated Power (HP/rpm): 50.2/2400
- Engine Rated Torque (lb-ft/rpm): 128.4/1500
- Engine Cylinders: 4
Tech Specs
| Specification | CQCJ30-KUY3G3 |
|---|---|
| Rated Capacity (lbs) | 6600 |
| Load Center (in) | 24 |
| Overall Height (overhead guard) (in) | 100.4 |
| Overall Length (with fork) (in) | 118.3 |
| Overall Width (in) | 92.1 |
| Min. Outside Turning Radius (in) | 122 |
| Total Weight (lbs) | 6834 |
| Tire Size (front/rear) (in) | 27x10-12/27x10-12 |
| Max. Travel Speed, loaded/unloaded (mph) | 7.46/8.07 |
| Lifting Speed, loaded/unloaded (fpm) | 51.2/51.2 |
| Engine | Kubota V2607-CR-EW03 |
| Engine Rated Power (HP/rpm) | 50.2/2400 |
| Engine Rated Torque (lb-ft/rpm) | 128.4/1500 |
| Engine Cylinders | 4 |

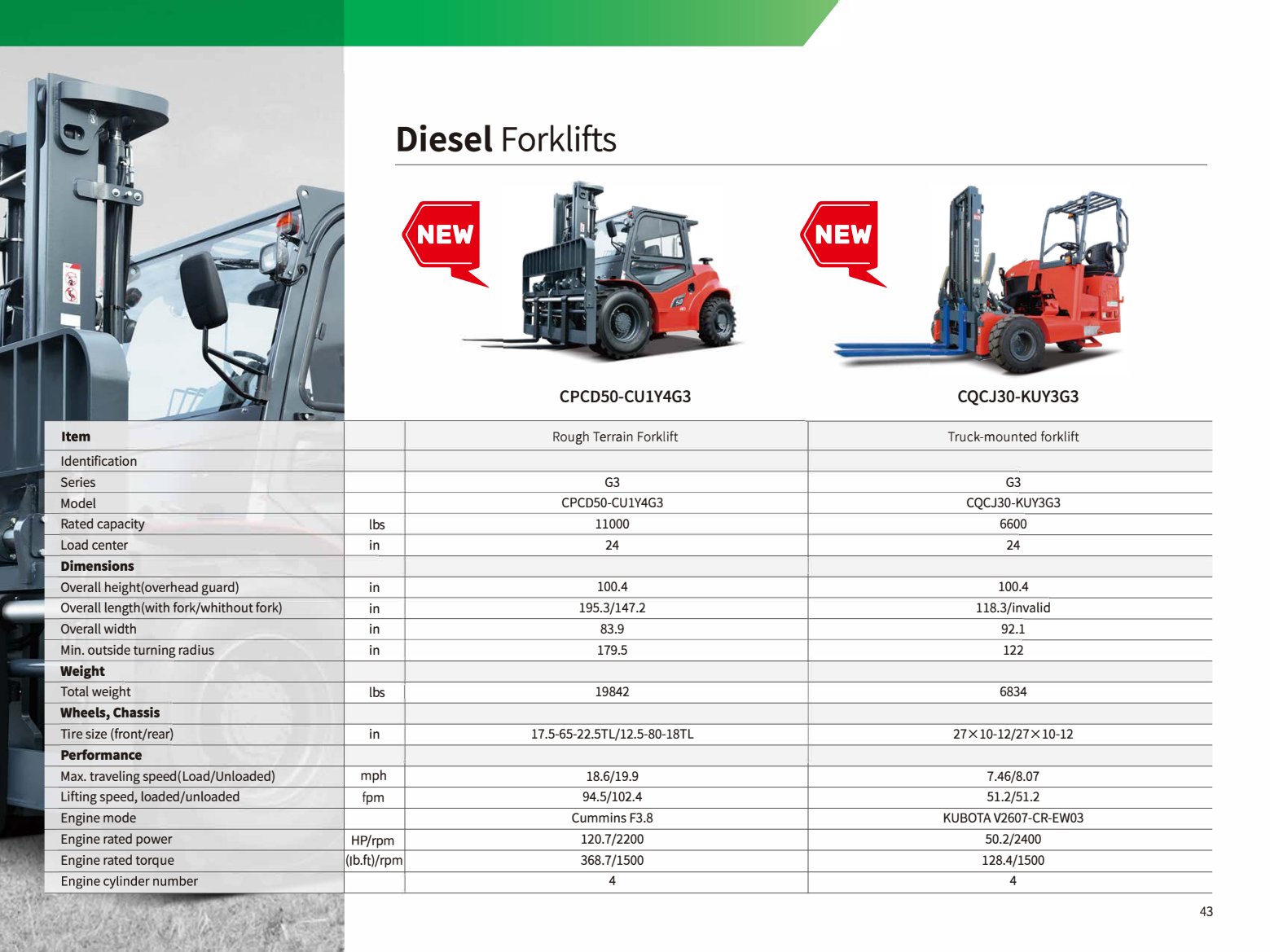

Full specifications: Spec Sheet (PDF)
Interested in the Truck Mounted Forklift?
Our team will help you configure the right truck for your operation, with local parts and service support.
Product information and images courtesy of the manufacturer. Specifications subject to change.
