Key Features
Diesel rough terrain forklift for yards, construction and farm use, offered in 2WD and 4WD with a turbocharged Kubota V2403T engine.
Heli · Sit-Down Rider · New Model Showroom
Rough Terrain Forklift (2WD/4WD)

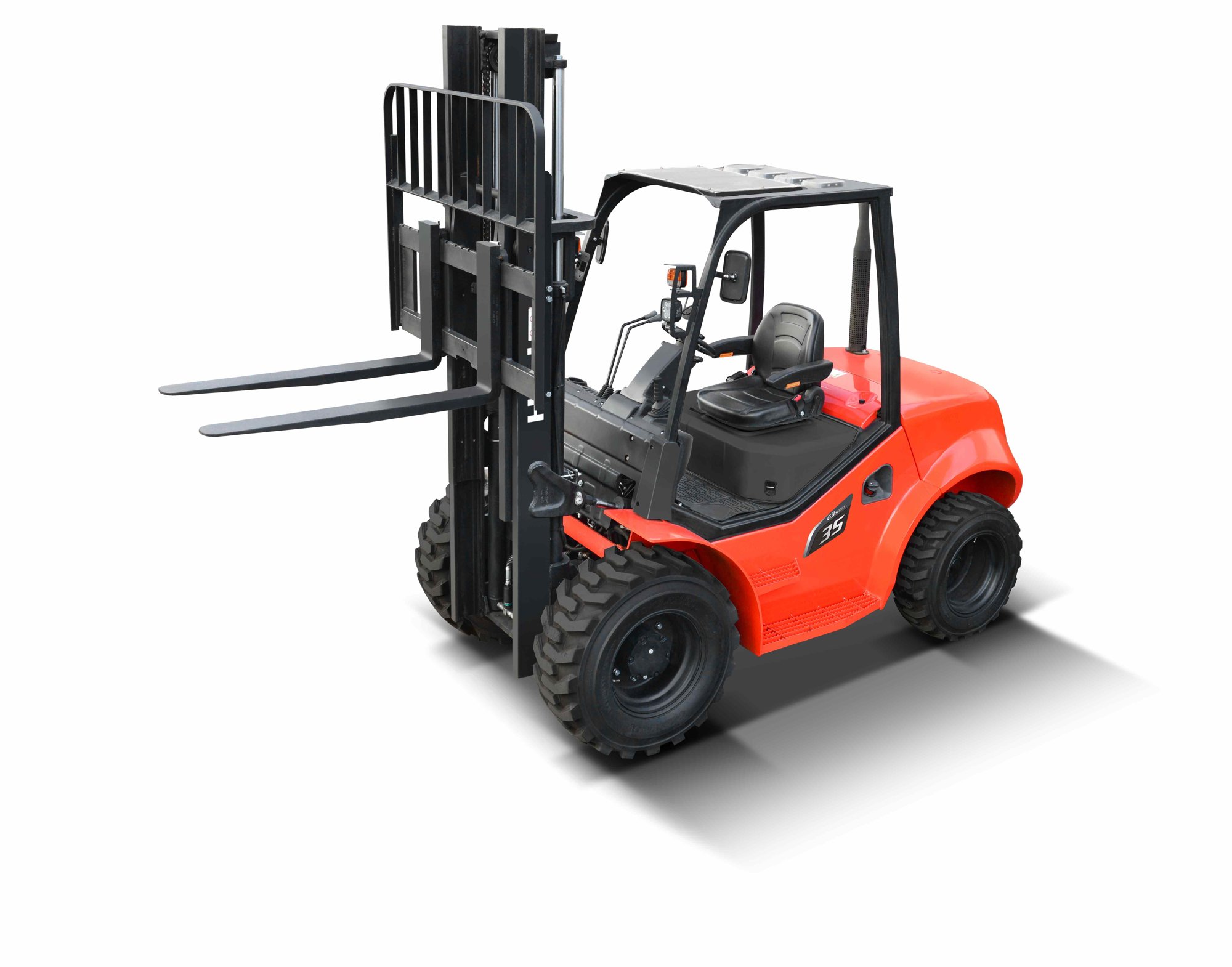

Heli G3 Series Rough Terrain Forklift (2WD/4WD) (6,000 lbs)
The Heli G3 Series Rough Terrain Forklift (2WD / 4WD) line includes 2 models with capacities of 6,000 lbs. Diesel rough terrain forklift for yards, construction and farm use, offered in 2WD and 4WD with a turbocharged Kubota V2403T engine.
- CPCD30-KU5Y2G3 (2WD) / CPCD30-KU5Y4G3 (4WD)
- Rough Terrain Forklift (2WD / 4WD)
- Engine: Kubota V2403T-CR-TE5B
- 6,000 lbs
Overview
Heli G3 Series Rough Terrain Forklift (2WD / 4WD)
The Heli G3 Series Rough Terrain Forklift (2WD / 4WD) line includes 2 models with capacities of 6,000 lbs. Diesel rough terrain forklift for yards, construction and farm use, offered in 2WD and 4WD with a turbocharged Kubota V2403T engine.
- Load Capacity
- 6,000 lbs
- Travel Speed Up To
- 12.5 mph
- Engine
- Kubota V2403T-CR-TE5B
- Overall Height
- 96.5 in
Features
Models in the Series
- CPCD30-KU5Y2G3 (2WD) – 6000 lbs
- CPCD30-KU5Y4G3 (4WD) – 6000 lbs
Power & Drive
- Engine: Kubota V2403T-CR-TE5B
- Engine Rated Power (HP/rpm): 57.9/2400
- Engine Rated Torque (lb-ft/rpm): 146.4/1500
- Engine Cylinders: 4
Tech Specs
| Specification | CPCD30-KU5Y2G3 (2WD) | CPCD30-KU5Y4G3 (4WD) |
|---|---|---|
| Rated Capacity (lbs) | 6000 | 6000 |
| Load Center (in) | 24 | 24 |
| Overall Height (overhead guard) (in) | 96.5 | 96.5 |
| Overall Length (with/without fork) (in) | 163.1/121.8 | 163.1/121.8 |
| Overall Width (in) | 64.6 | 64.6 |
| Min. Outside Turning Radius (in) | 133.9 | 139.8 |
| Total Weight (lbs) | 11220 | 11660 |
| Tire Size (front/rear) (in) | 14-17.5-16TL/10-16.5-10PR | 14-17.5-16TL/10-16.5-10PR |
| Max. Travel Speed (mph) | 12.5 | 12.5 |
| Lifting Speed, loaded/unloaded (fpm) | 88.6/102.4 | 88.6/102.4 |
| Engine | Kubota V2403T-CR-TE5B | Kubota V2403T-CR-TE5B |
| Engine Rated Power (HP/rpm) | 57.9/2400 | 57.9/2400 |
| Engine Rated Torque (lb-ft/rpm) | 146.4/1500 | 146.4/1500 |
| Engine Cylinders | 4 | 4 |

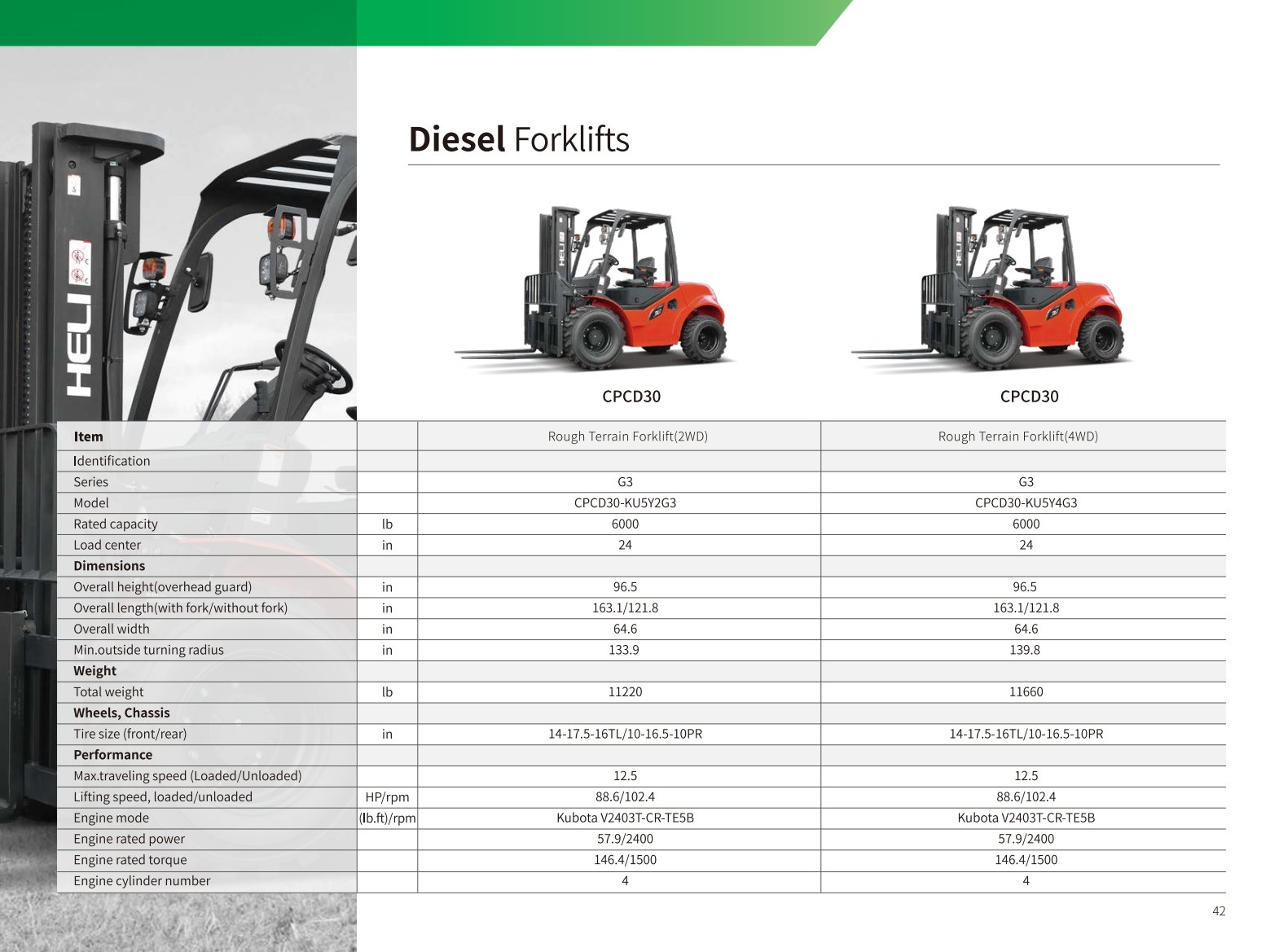

Full specifications: Spec Sheet (PDF)
