Key Features
New heavy-duty G3 series LPG pneumatic forklifts with the Kubota WG2503 engine. Dual fuel is optional.
Heli · Sit-Down Rider · New Model Showroom
LPG Pneumatic Tire Forklift
Heli G3 Series LPG Pneumatic Tire Forklift (4,000-7,000 lbs)
The Heli G3 Series LPG Forklift - Pneumatic line includes 4 models with capacities of 4,000-7,000 lbs. New heavy-duty G3 series LPG pneumatic forklifts with the Kubota WG2503 engine. Dual fuel is optional.
- CP(Q)YD20 / CP(Q)YD25 / CP(Q)YD30 / CP(Q)YD35
- LPG Forklift - Pneumatic
- Engine: Kubota WG2503
- 4,000 / 5,000 / 6,000 / 7,000 lbs
- Heavy duty
Overview
Heli G3 Series LPG Forklift - Pneumatic
The Heli G3 Series LPG Forklift - Pneumatic line includes 4 models with capacities of 4,000-7,000 lbs. New heavy-duty G3 series LPG pneumatic forklifts with the Kubota WG2503 engine. Dual fuel is optional.
- Load Capacity
- 4,000-7,000 lbs
- Travel Speed Up To
- 11.8 mph
- Engine
- Kubota WG2503
- Overall Height
- 78.7-83.5 in
Features
Models in the Series
- CP(Q)YD20 – 4000 lbs
- CP(Q)YD25 – 5000 lbs
- CP(Q)YD30 – 6000 lbs
- CP(Q)YD35 – 7000 lbs
Power & Drive
- Engine: Kubota WG2503
- Engine Rated Power (HP/rpm): 58.3/2600
- Engine Cylinders: 4
Available Options
- Dual fuel
Tech Specs
| Specification | CP(Q)YD20 | CP(Q)YD25 | CP(Q)YD30 | CP(Q)YD35 |
|---|---|---|---|---|
| Rated Capacity (lbs) | 4000 | 5000 | 6000 | 7000 |
| Load Center (in) | 24 | 24 | 24 | 24 |
| Overall Height (overhead guard) (in) | 78.7 | 78.7 | 83.5 | 83.5 |
| Overall Length (with fork) (in) | 139.4 | 147.6 | 152.8 | 155.1 |
| Overall Width (in) | 45.7 | 45.6 | 48.2 | 48.2 |
| Min. Outside Turning Radius (in) | 88.6 | 90.9 | 95.5 | 96.9 |
| Total Weight (lbs) | 7650 | 8422 | 9878 | 10759 |
| Tire Size (front/rear) (in) | 7.00-12-12PR/6.00-9-10PR | 7.00-12-12PR/6.00-9-10PR | 28x9-15-14PR/6.50-10-10PR | 28x9-15-14PR/6.50-10-10PR |
| Max. Travel Speed, loaded/unloaded (mph) | 11.2/11.8 | 10.6/11.2 | 11.5/11.8 | 11.2/11.5 |
| Lifting Speed, loaded/unloaded (fpm) | 108/116.4 | 108/116.4 | 106.2/112.2 | 88.8/92.4 |
| Engine | Kubota WG2503 | Kubota WG2503 | Kubota WG2503 | Kubota WG2503 |
| Engine Rated Power (HP/rpm) | 58.3/2600 | 58.3/2600 | 58.3/2600 | 58.3/2600 |
| Engine Cylinders | 4 | 4 | 4 | 4 |

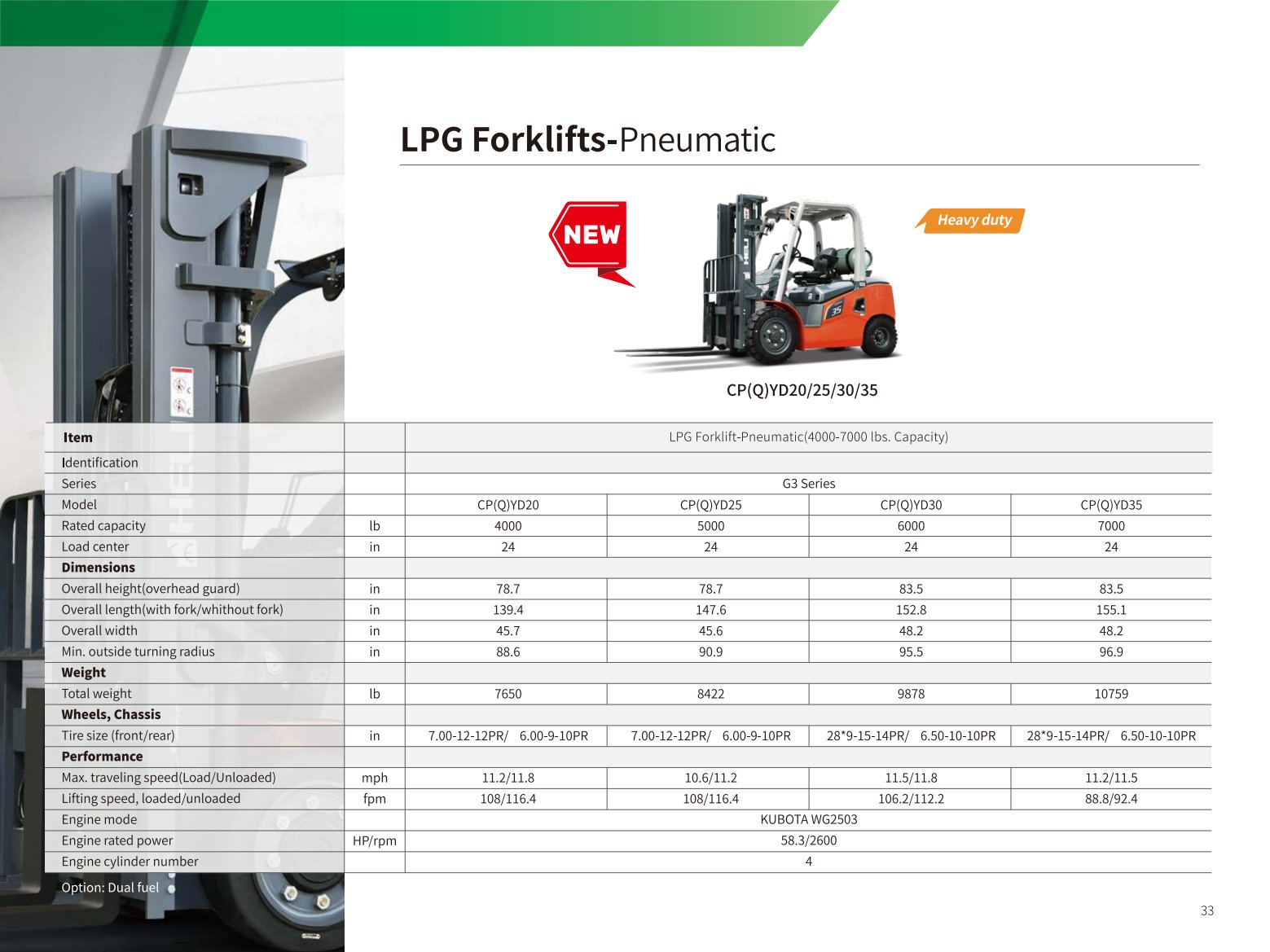

Full specifications: Spec Sheet (PDF)
Interested in the LPG Pneumatic Tire Forklift?
Our team will help you configure the right truck for your operation, with local parts and service support.
Product information and images courtesy of the manufacturer. Specifications subject to change.
