Key Features
Dual-drive, small turning radius and flexible operation. High load capacity.
Heli · Sit-Down Rider · New Model Showroom
80V Electric Lithium-ion Dual-drive 4-Wheel Forklift
Heli G3 Series 80V Electric Lithium-ion Dual-drive 4-Wheel Forklift (3,000-4,000 lbs)
The Heli G3 Series Dual-drive Li-ion Forklift 80V line includes 4 models with capacities of 3,000-4,000 lbs. Dual-drive, small turning radius and flexible operation. High load capacity.
- CPD15 / CPD16 / CPD18 / CPD20
- Dual-drive Li-ion Forklift 80V
- Battery: 80/202
- 3,000 / 3,200 / 3,500 / 4,000 lbs
- Normal Duty
Overview
Heli G3 Series Dual-drive Li-ion Forklift 80V
The Heli G3 Series Dual-drive Li-ion Forklift 80V line includes 4 models with capacities of 3,000-4,000 lbs. Dual-drive, small turning radius and flexible operation. High load capacity.
- Load Capacity
- 3,000-4,000 lbs
- Travel Speed Up To
- 11.2 mph
- Battery
- 80V Lithium-ion
- Overhead Guard Height
- 80 in
Features
Models in the Series
- CPD15 – 3000 lbs
- CPD16 – 3200 lbs
- CPD18 – 3500 lbs
- CPD20 – 4000 lbs
Power & Drive
- Battery Voltage/Rated Capacity (5h) (V/Ah): 80/202
- Controller: ZAPI
Available Options
- Large capacity lithium batteries
- Fingertip control
- 4-Stage mast
- Cab
- Cold storage
- FICS
- Various work lights and warning lights
Tech Specs
| Specification | CPD15 | CPD16 | CPD18 | CPD20 |
|---|---|---|---|---|
| Configuration Number | GE2DLI | GE2DLI | GE2DLI | GE2DLI |
| Load Capacity (lbs) | 3000 | 3200 | 3500 | 4000 |
| Load Center (in) | 24 | 24 | 24 | 24 |
| Overhead Guard Height (in) | 80 | 80 | 80 | 80 |
| Overall Length (without fork) (in) | 78.9 | 78.9 | 82.1 | 82.1 |
| Overall Width (in) | 42 | 42 | 44 | 44 |
| Min. Outside Turning Radius (in) | 68.7 | 68.7 | 72.6 | 72.6 |
| Travel Speed, loaded/unloaded (mph) | 10.6/11.2 | 10.6/11.2 | 10.6/11.2 | 10.6/11.2 |
| Lifting Speed, loaded/unloaded (fpm) | 90.5/127.9 | 90.5/127.9 | 82.7/118.1 | 82.7/118.1 |
| Max. Gradeability, loaded/unloaded (%) | 22/30 | 22/30 | 22/30 | 22/30 |
| Battery Voltage/Rated Capacity (5h) (V/Ah) | 80/202 | 80/202 | 80/202 | 80/202 |
| Endurance (recommended) (h) | 6-8 | 6-8 | 6-8 | 6-7 |
| Controller | ZAPI | ZAPI | ZAPI | ZAPI |

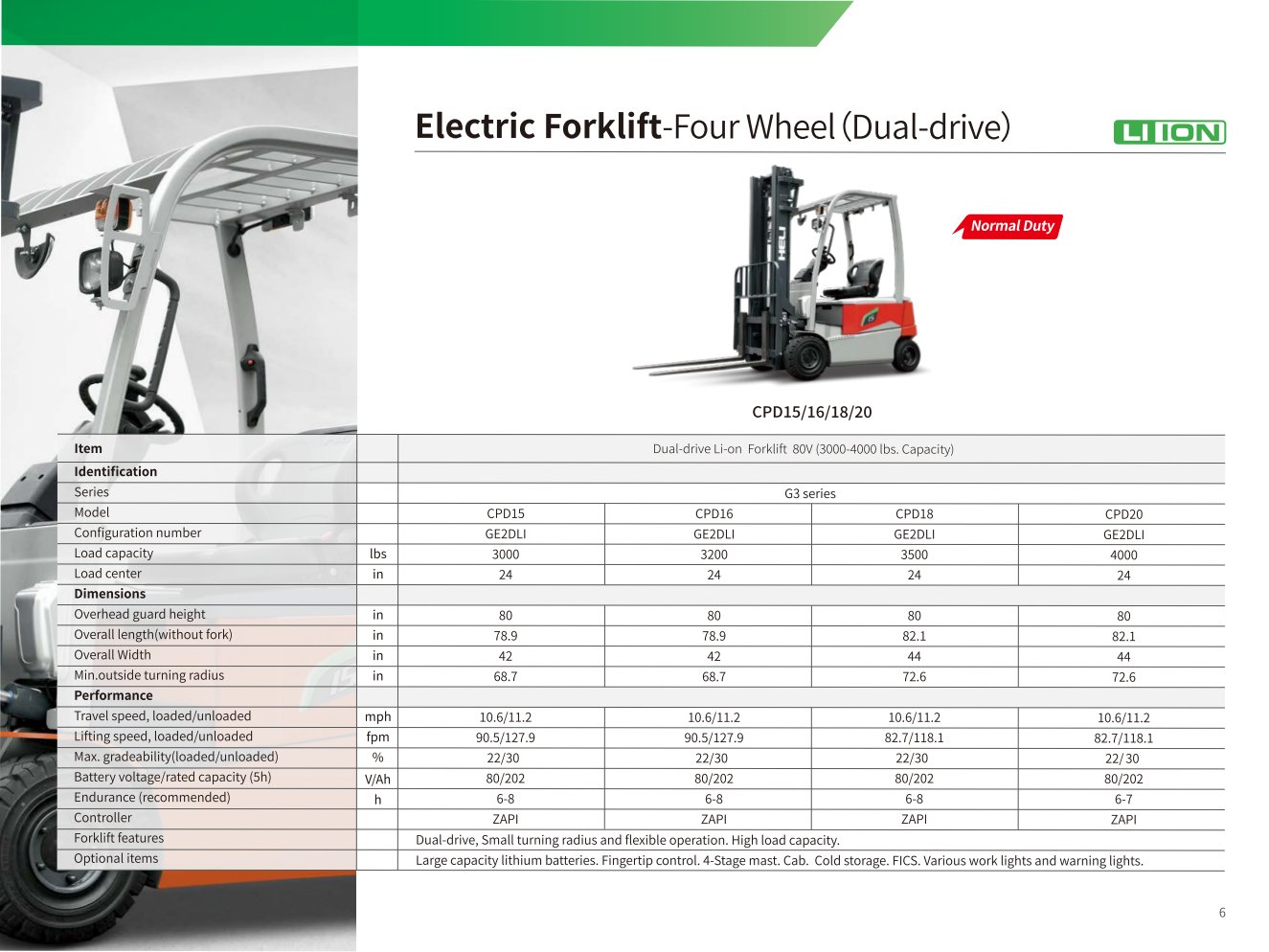

Full specifications: Spec Sheet (PDF)
Interested in the 80V Electric Lithium-ion Dual-drive 4-Wheel Forklift?
Our team will help you configure the right truck for your operation, with local parts and service support.
Product information and images courtesy of the manufacturer. Specifications subject to change.
