Key Features
Seated lithium-ion tow tractors rated from 4,400 to 15,400 lbs towing weight for warehouses, airports and plants.
Heli · Tow Tractor · New Model Showroom
Lithium-ion Tractor

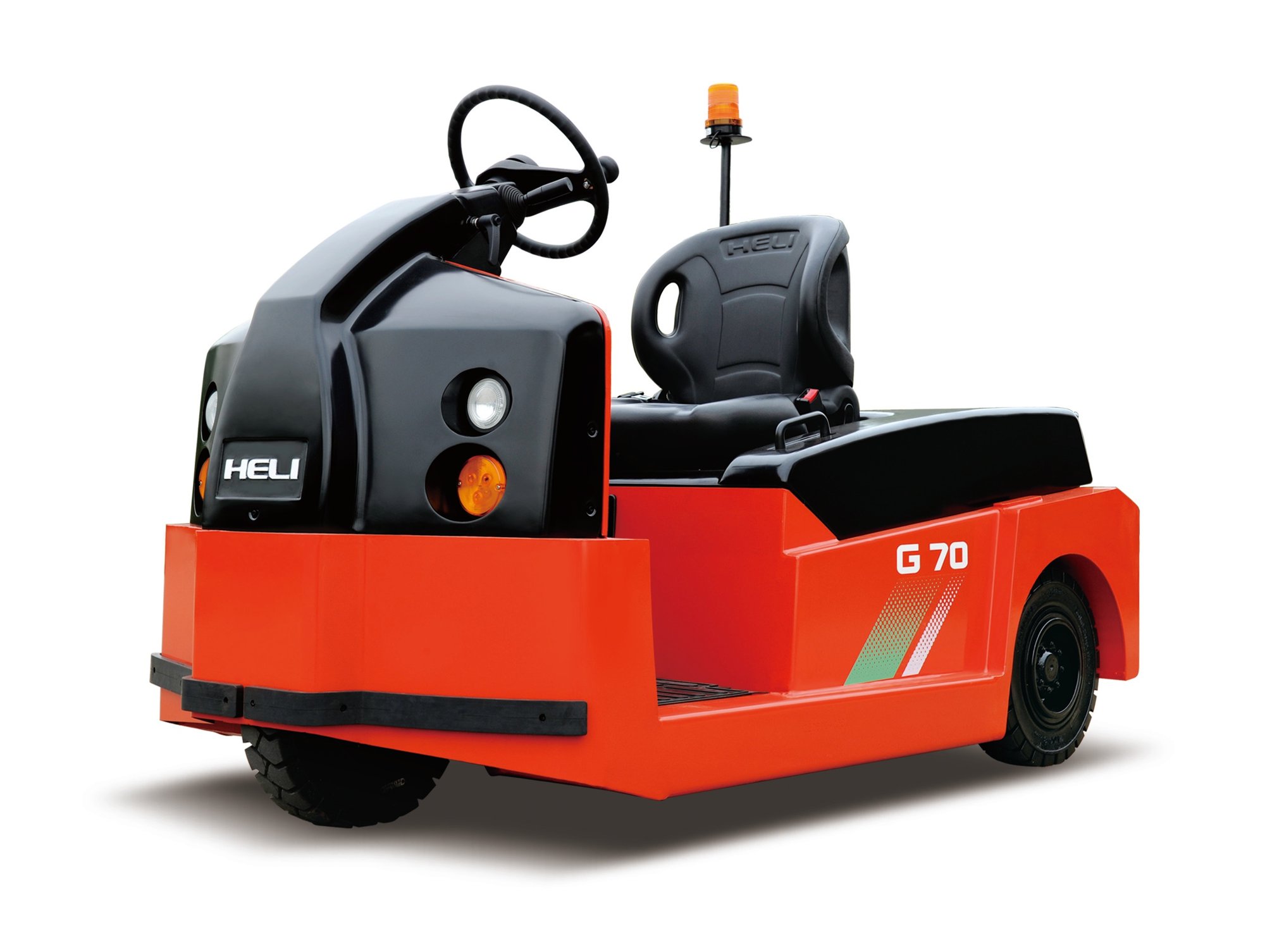

Heli G2 Series Lithium-ion Tractor (4,400-15,400 lbs towing)
The Heli G2 Series Lithium Battery Tractor line includes 6 models with towing capacities of 4,400-15,400 lbs. Seated lithium-ion tow tractors rated from 4,400 to 15,400 lbs towing weight for warehouses, airports and plants.
- QYD20S-J3G2LI / QYD30S-J3G2LI / QYD40S-J3G2LI / QYD50S-J3G2LI / QYD60S-J3G2LI / QYD70S-J3G2LI
- Lithium Battery Tractor
- Battery: 24/200 / 48/200 / 48/252
- 4,400 / 6,600 / 8,800 / 11,000 / 13,200 / 15,400 lbs towing
Overview
Heli G2 Series Lithium Battery Tractor
The Heli G2 Series Lithium Battery Tractor line includes 6 models with towing capacities of 4,400-15,400 lbs. Seated lithium-ion tow tractors rated from 4,400 to 15,400 lbs towing weight for warehouses, airports and plants.
- Towing Capacity
- 4,400-15,400 lbs
- Travel Speed Up To
- 8.8 mph
- Battery
- 24V / 48V Lithium-ion
- Min. Outside Turning Radius
- 60.2-70.5 in
Features
Models in the Series
- QYD20S-J3G2LI – 4400 lbs
- QYD30S-J3G2LI – 6600 lbs
- QYD40S-J3G2LI – 8800 lbs
- QYD50S-J3G2LI – 11000 lbs
- QYD60S-J3G2LI – 13200 lbs
- QYD70S-J3G2LI – 15400 lbs
Power & Drive
- Battery Voltage/Rated Capacity (5h) (V/Ah): 24/200 / 48/200 / 48/252
- Drive Motor Power (HP): 4 / 5.4 / 8.7
- Steering Motor Power (HP): - / 0.8
Tech Specs
| Specification | QYD20S-J3G2LI | QYD30S-J3G2LI | QYD40S-J3G2LI | QYD50S-J3G2LI | QYD60S-J3G2LI | QYD70S-J3G2LI |
|---|---|---|---|---|---|---|
| Rated Towing Weight (lbs) | 4400 | 6600 | 8800 | 11000 | 13200 | 15400 |
| Max. Towing Force (N) | 3000 | 3100 | 6000 | 6100 | 8000 | 8100 |
| Height (in) | 50.0 | 50.0 | 50.0 | 50.0 | 60.6 | 60.6 |
| Overall Length (in) | 68.5 | 68.5 | 76.8 | 76.8 | 81.1 | 81.1 |
| Overall Width (in) | 33.9 | 33.9 | 37.8 | 37.8 | 41.3 | 41.3 |
| Min. Outside Turning Radius (in) | 60.2 | 60.2 | 63 | 63 | 70.5 | 70.5 |
| Tire Size (front/rear) | 3.50-5/4.00-8 | 3.50-5/4.00-8 | 4.00-8/4.00-8 | 4.00-8/4.00-8 | 4.00-8/4.00-8 | 4.00-8/4.00-8 |
| Tire Type | Cushion | Cushion | Cushion | Cushion | Cushion | - |
| Total Approximate Weight (lbs) | 1250 | 1250 | 2046 | 2046 | 2420 | 2420 |
| Travel Speed, loaded/unloaded (mph) | 5.6/7.5 | 5.6/7.5 | 5/7.5 | 5/7.5 | 5.6/8.8 | 5.6/8.8 |
| Battery Voltage/Rated Capacity (5h) (V/Ah) | 24/200 | 24/200 | 48/200 | 48/200 | 48/252 | 48/252 |
| Drive Motor Power (HP) | 4 | 4 | 5.4 | 5.4 | 8.7 | 8.7 |
| Steering Motor Power (HP) | - | - | - | - | 0.8 | 0.8 |
| Controls | INMOTION | INMOTION | INMOTION | INMOTION | INMOTION | INMOTION |

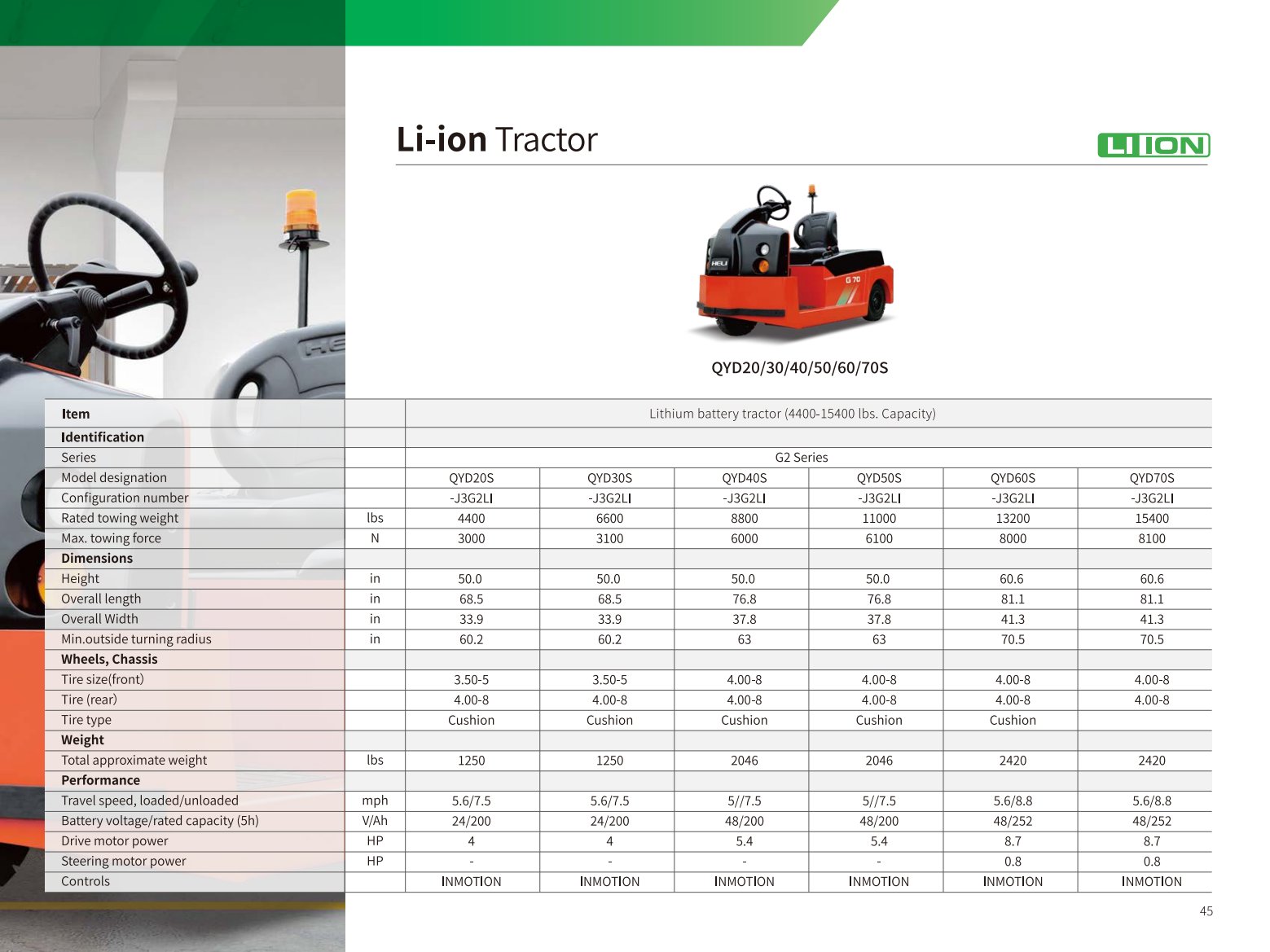

Full specifications: Spec Sheet (PDF)
Interested in the Lithium-ion Tractor?
Our team will help you configure the right truck for your operation, with local parts and service support.
Product information and images courtesy of the manufacturer. Specifications subject to change.
