Key Features
Heavy lithium-ion tow tractors rated to tow 17,600-33,000 lbs, available with a full or semi-enclosed cab.
Heli · Tow Tractor · New Model Showroom
Lithium-ion Tractor
Heli G2 Series Lithium-ion Tractor (17,600-33,000 lbs towing)
The Heli G2 Series Lithium Battery Tractor line includes 4 models with towing capacities of 17,600-33,000 lbs. Heavy lithium-ion tow tractors rated to tow 17,600-33,000 lbs, available with a full or semi-enclosed cab.
- QYD80-A2LIG2 / QYD100-A2LIG2 / QYD120-A2LIG2 / QYD150-A2LIG2
- Lithium Battery Tractor
- Battery: 80/202 / 80/271
- 17,600 / 22,000 / 26,400 / 33,000 lbs towing
Overview
Heli G2 Series Lithium Battery Tractor
The Heli G2 Series Lithium Battery Tractor line includes 4 models with towing capacities of 17,600-33,000 lbs. Heavy lithium-ion tow tractors rated to tow 17,600-33,000 lbs, available with a full or semi-enclosed cab.
- Towing Capacity
- 17,600-33,000 lbs
- Travel Speed Up To
- 10 mph
- Battery
- 80V Lithium-ion
- Min. Outside Turning Radius
- 74.8 in
Features
Models in the Series
- QYD80-A2LIG2 – 17600 lbs
- QYD100-A2LIG2 – 22000 lbs
- QYD120-A2LIG2 – 26400 lbs
- QYD150-A2LIG2 – 33000 lbs
Power & Drive
- Battery Voltage/Rated Capacity (5h) (V/Ah): 80/202 / 80/271
- Drive Motor Power (HP): 11 / 16
- Steering Motor Power (HP): 1.8
- Controller: ZAPI
Available Options
- Cab
- Semi-enclosed cab
- Solid tire
- LED warning light
- Appearance color
- Lithium battery capacity
Tech Specs
| Specification | QYD80-A2LIG2 | QYD100-A2LIG2 | QYD120-A2LIG2 | QYD150-A2LIG2 |
|---|---|---|---|---|
| Rated Towing Weight (lbs) | 17600 | 22000 | 26400 | 33000 |
| Max. Towing Force (N) | 10000 | 11000 | 12000 | 13000 |
| Height (without / with cab) (in) | 52.3/80.5 | 52.3/80.5 | 52.3/80.5 | 52.3/80.5 |
| Overall Length (without / with cab) (in) | 83.6/90.5 | 83.6/90.5 | 83.6/90.5 | 83.6/90.5 |
| Overall Width (without / with cab) (in) | 42.1/42.1 | 42.1/42.1 | 42.1/42.1 | 42.1/42.1 |
| Min. Outside Turning Radius (in) | 74.8 | 74.8 | 74.8 | 74.8 |
| Travel Speed, loaded/unloaded (mph) | 7.5/10 | 6.8/10 | 6.2/10 | 6.2/10 |
| Battery Voltage/Rated Capacity (5h) (V/Ah) | 80/202 | 80/202 | 80/202 | 80/271 |
| Drive Motor Power (HP) | 11 | 11 | 11 | 16 |
| Steering Motor Power (HP) | 1.8 | 1.8 | 1.8 | 1.8 |
| Controller | ZAPI | ZAPI | ZAPI | ZAPI |

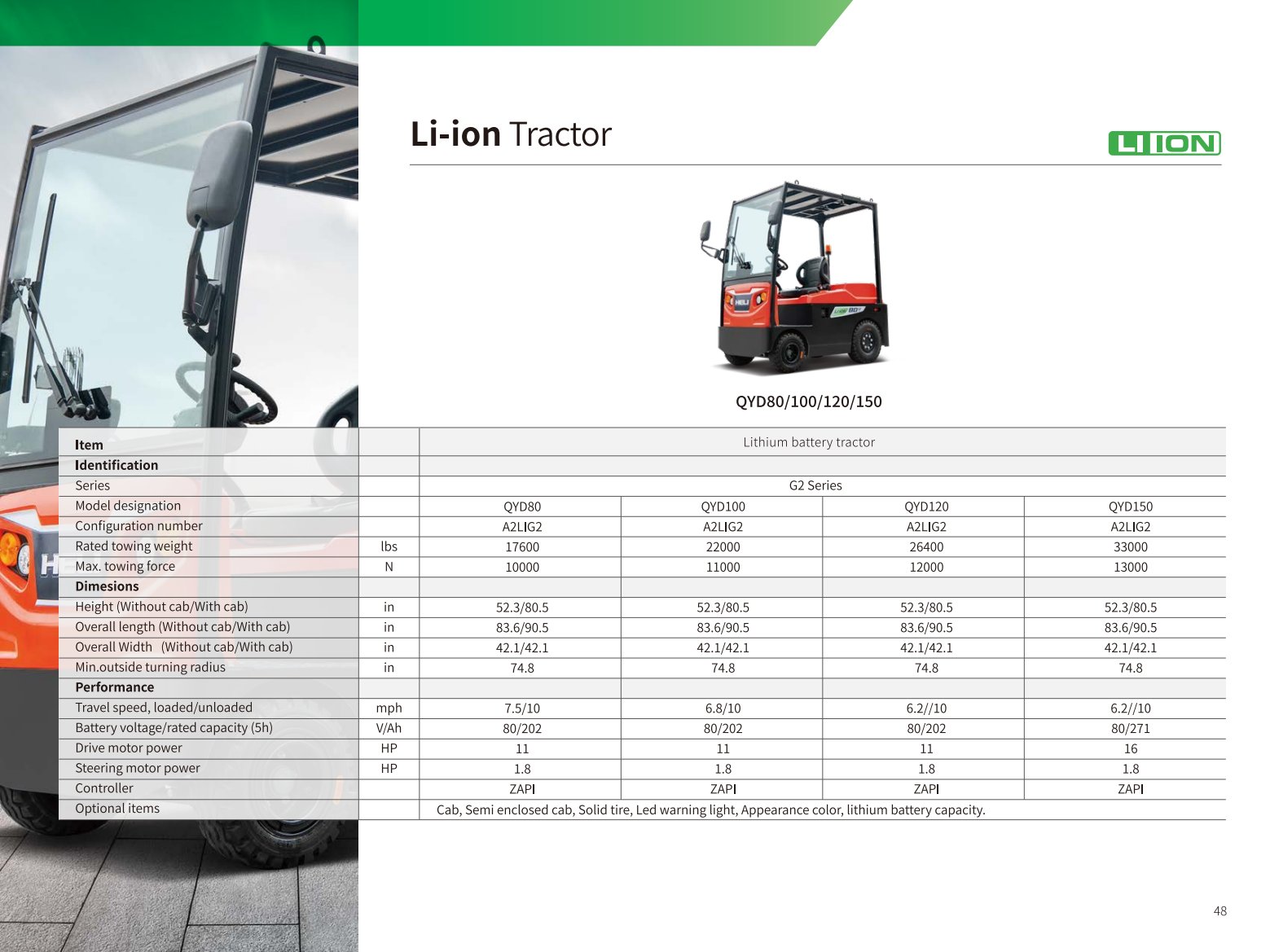

Full specifications: Spec Sheet (PDF)
Interested in the Lithium-ion Tractor?
Our team will help you configure the right truck for your operation, with local parts and service support.
Product information and images courtesy of the manufacturer. Specifications subject to change.
