Key Features
Main sales model. Suitable for various harsh environments. Reliable performance. Excellent performance.
Heli · Sit-Down Rider · New Model Showroom

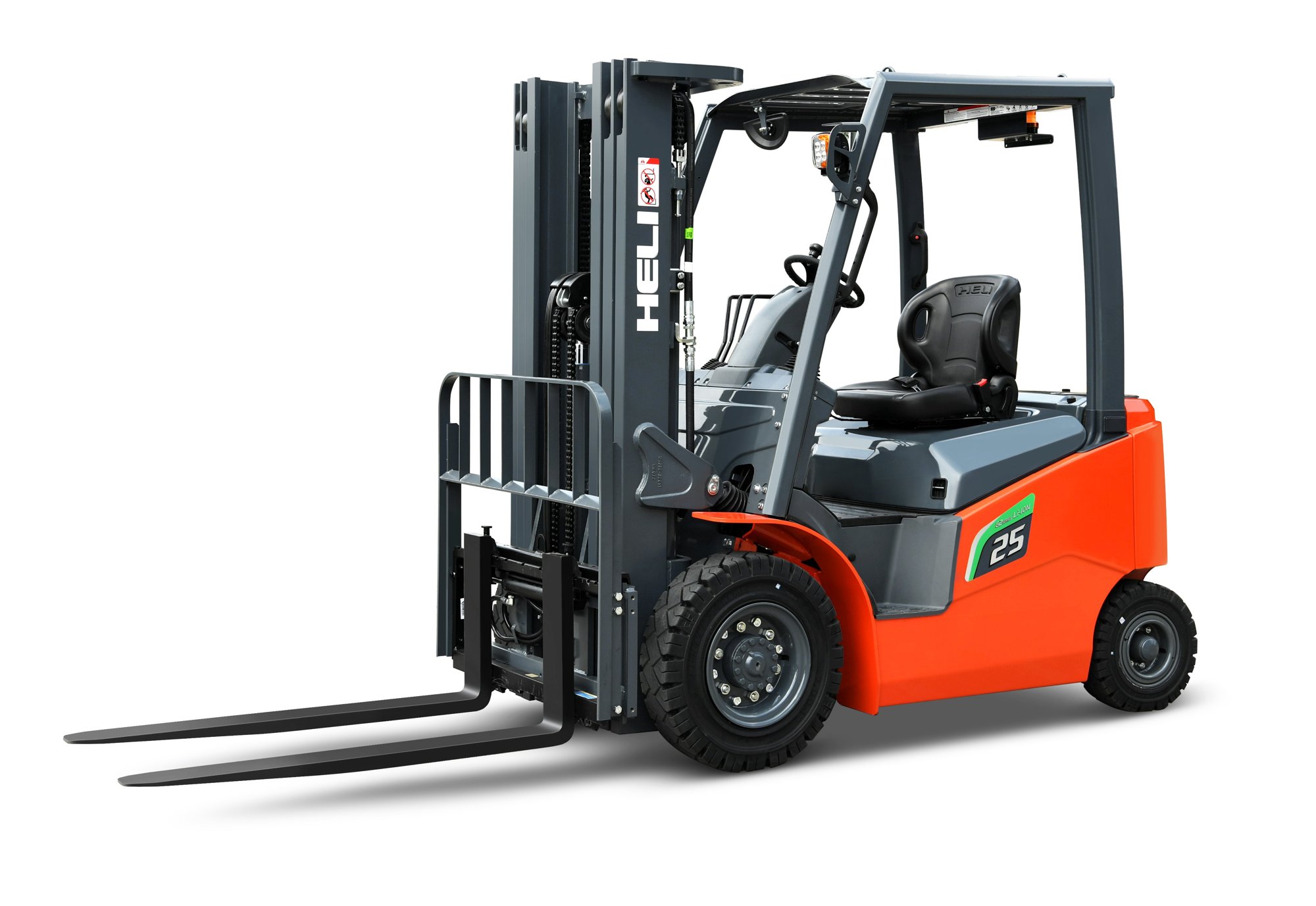

80V Electric Lithium-ion 4-Wheel Forklift
Heli G2 Series 80V Electric Lithium-ion 4-Wheel Forklift (3,000-7,500 lbs)
The Heli G2 Series Four Wheel Forklift (Lithium-ion) 80V line includes 7 models with capacities of 3,000-7,500 lbs. Main sales model. Suitable for various harsh environments. Reliable performance. Excellent performance.
- 7 models: CPD15 to CPD38
- Four Wheel Forklift (Lithium-ion) 80V
- Battery: 80/202 / 80/271 / 80/404 / 80/346
- 3,000 / 3,500 / 4,000 / 5,000 / 6,000 / 7,000 / 7,500 lbs
- Normal Duty
Overview
Heli G2 Series Four Wheel Forklift (Lithium-ion) 80V
The Heli G2 Series Four Wheel Forklift (Lithium-ion) 80V line includes 7 models with capacities of 3,000-7,500 lbs. Main sales model. Suitable for various harsh environments. Reliable performance. Excellent performance.
- Load Capacity
- 3,000-7,500 lbs
- Travel Speed Up To
- 11.9 mph
- Battery
- 80V Lithium-ion
- Overhead Guard Height
- 84.3-85.8 in
Features
Models in the Series
- CPD15 – 3000 lbs
- CPD18 – 3500 lbs
- CPD20 – 4000 lbs
- CPD25 – 5000 lbs
- CPD30 – 6000 lbs
- CPD35 – 7000 lbs
- CPD38 – 7500 lbs
Power & Drive
- Controller: ZAPI
- Battery Voltage/Rated Capacity (5h) (V/Ah): 80/202 / 80/271 / 80/404 / 80/346
Available Options
- Large capacity lithium batteries
- Fingertip control
- 4-Stage mast
- Cab
- Cold storage
- Air-conditioning
- FICS
- Various work lights and warning lights
Tech Specs
| Specification | CPD15 | CPD18 | CPD20 | CPD25 | CPD30 | CPD35 | CPD38 |
|---|---|---|---|---|---|---|---|
| Configuration Number | GB2LI-M | GB2LI-M | GB2LI-M | GB2LI-M | GB2LI-M | GB2LI-M | GB2LI-M |
| Load Capacity (lbs) | 3000 | 3500 | 4000 | 5000 | 6000 | 7000 | 7500 |
| Load Center (in) | 24 | 24 | 24 | 24 | 24 | 24 | 24 |
| Overhead Guard Height (in) | 84.3 | 84.3 | 85.4 | 85.4 | 85.8 | 85.8 | 85.8 |
| Overall Length (without fork) (in) | 84.3 | 84.3 | 95.7 | 95.7 | 101.1 | 101.1 | 103.2 |
| Overall Width (in) | 44.1 | 44.1 | 45.7 | 45.7 | 48.2 | 48.2 | 54.8 |
| Min. Outside Turning Radius (in) | 73.2 | 73.2 | 81.5 | 81.5 | 87.2 | 87.2 | 88.6 |
| Travel Speed, loaded/unloaded (mph) | 10.6/11.3 | 10.6/11.3 | 11.3/11.9 | 11.3/11.9 | 11.3/11.9 | 11.3/11.9 | 10.6/11.3 |
| Lifting Speed, loaded/unloaded (fpm) | 94.5/118.1 | 94.5/118.1 | 90.6/110.2 | 86.6/110.2 | 80.7/106.3 | 76.8/106.3 | 78.7/100.4 |
| Max. Gradeability, loaded/unloaded (%) | 20/22 | 20/20 | 22/28 | 20/28 | 20/28 | 18/28 | 17/25 |
| Controller | ZAPI | ZAPI | ZAPI | ZAPI | ZAPI | ZAPI | ZAPI |
| Battery Voltage/Rated Capacity (5h) (V/Ah) | 80/202 | 80/202 | 80/271 | 80/271 | 80/404 | 80/404 | 80/346 |
| Endurance (recommended) (h) | 6-8 | 6-8 | 6-8 | 6-8 | 6-8 | 6-8 | 5-7 |

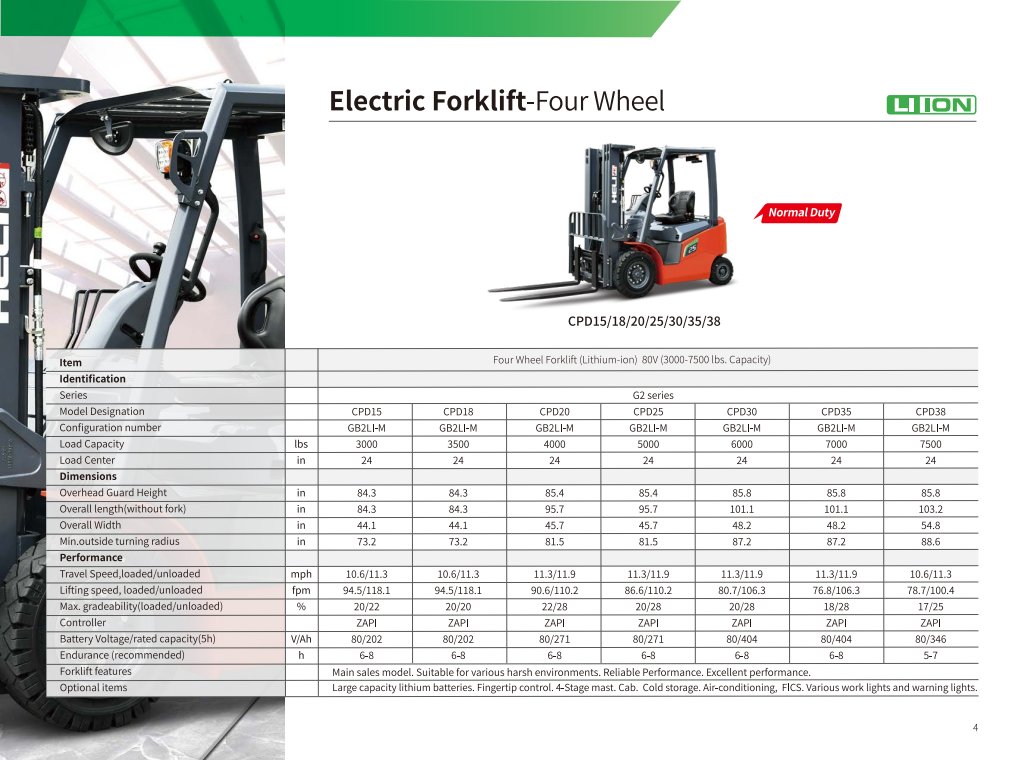

Full specifications: Spec Sheet (PDF)
Interested in the 80V Electric Lithium-ion 4-Wheel Forklift?
Our team will help you configure the right truck for your operation, with local parts and service support.
Product information and images courtesy of the manufacturer. Specifications subject to change.
