Key Features
Heavy-duty G series diesel forklifts from 44,000 to 101,200 lbs with Volvo Tier 4 Final engines (248-355 HP) and Kessler drive axles.
Heli · Sit-Down Rider · New Model Showroom
Diesel Pneumatic Tire Forklift

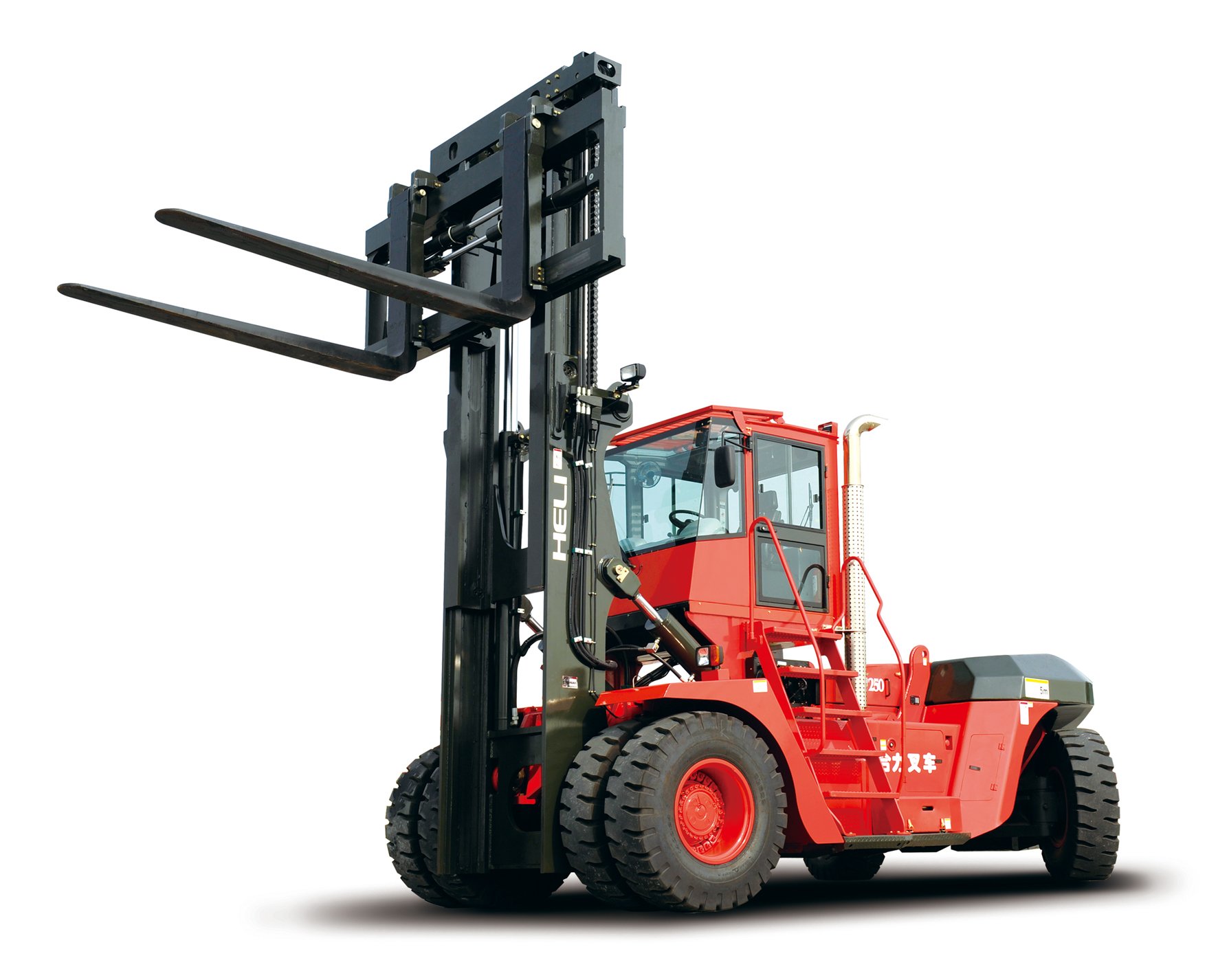

Heli G Series Diesel Pneumatic Tire Forklift (44,000-101,200 lbs)
The Heli G Series Heavy-Duty Diesel Forklift - Pneumatic line includes 9 models with capacities of 44,000-101,200 lbs. Heavy-duty G series diesel forklifts from 44,000 to 101,200 lbs with Volvo Tier 4 Final engines (248-355 HP) and Kessler drive axles.
- 9 models: CPCD200-VZ1-12IVG2 to CPCD460-VD2-12IV
- Heavy-Duty Diesel Forklift - Pneumatic
- Engine: Volvo TAD871VE / Volvo TAD1171VE
- 44,000 / 55,000 / 61,600 / 66,000 / 70,500 / 77,000 / 83,600 / 92,500 / 101,200 lbs
Overview
Heli G Series Heavy-Duty Diesel Forklift - Pneumatic
The Heli G Series Heavy-Duty Diesel Forklift - Pneumatic line includes 9 models with capacities of 44,000-101,200 lbs. Heavy-duty G series diesel forklifts from 44,000 to 101,200 lbs with Volvo Tier 4 Final engines (248-355 HP) and Kessler drive axles.
- Load Capacity
- 44,000-101,200 lbs
- Travel Speed Up To
- 16.1 mph
- Engine
- Volvo TAD871VE / Volvo TAD1171VE
- Overall Height
- 149-176 in
Features
Models in the Series
- CPCD200-VZ1-12IVG2 – 44000 lbs
- CPCD250-VZ1-12IVG2 – 55000 lbs
- CPCD280-VZ1-12IVG2 – 61600 lbs
- CPCD300-VZ1-12IVG2 – 66000 lbs
- CPCD320-VZ1-12IVG2 – 70500 lbs
- CPCD350-VZ1-12IV – 77000 lbs
- CPCD380-VD2-12IV – 83600 lbs
- CPCD420-VD2-12IV – 92500 lbs
- CPCD460-VD2-12IV – 101200 lbs
Power & Drive
- Engine: Volvo TAD871VE / Volvo TAD1171VE
- Engine Rated Power (HP/rpm): 248/2200 / 355/2100
- Engine Rated Torque (lb-ft/rpm): 856/1350 / 1317/1316
- Emission Standard: T4F
Tech Specs
| Specification | CPCD200-VZ1-12IVG2 | CPCD250-VZ1-12IVG2 | CPCD280-VZ1-12IVG2 | CPCD300-VZ1-12IVG2 | CPCD320-VZ1-12IVG2 | CPCD350-VZ1-12IV | CPCD380-VD2-12IV | CPCD420-VD2-12IV | CPCD460-VD2-12IV |
|---|---|---|---|---|---|---|---|---|---|
| Rated Capacity (lbs) | 44000 | 55000 | 61600 | 66000 | 70500 | 77000 | 83600 | 92500 | 101200 |
| Load Center (in) | 47.2 | 47.2 | 47.2 | 47.2 | 47.2 | 47.2 | 47.2 | 47.2 | 47.2 |
| Overall Height (overhead guard) (in) | 149 | 149 | 152 | 152 | 152 | 152 | 176 | 172 | 172 |
| Overall Length (with fork) (in) | 344 | 344 | 360 | 360 | 360 | 360 | 389 | 408 | 408 |
| Overall Width (single tire) (in) | 120 | 120 | 136 | 136 | 136 | 136 | 162 | 162 | 162 |
| Min. Turning Radius (exterior) (in) | 233 | 233 | 252 | 252 | 252 | 252 | 274 | 296 | 296 |
| Total Weight (lbs) | 73193 | 80468 | 88185 | 92594 | 94799 | 101412 | 113758 | 120372 | 124781 |
| Tire Size (front/rear) (in) | 14.00-24 | 14.00-24 | 16.00-25 | 16.00-25 | 16.00-25 | 16.00-25 | 18.00-25 | 18.00-25 | 18.00-25 |
| Max. Travel Speed, loaded/unloaded (mph) | 15/16.1 | 15/16.1 | 14.3/15.5 | 14.3/15.5 | 14.3/15.5 | 14.3/15.5 | 13.7/15.2 | 13.7/15.2 | 13.7/15.2 |
| Engine | Volvo TAD871VE | Volvo TAD871VE | Volvo TAD871VE | Volvo TAD871VE | Volvo TAD871VE | Volvo TAD871VE | Volvo TAD1171VE | Volvo TAD1171VE | Volvo TAD1171VE |
| Engine Rated Power (HP/rpm) | 248/2200 | 248/2200 | 248/2200 | 248/2200 | 248/2200 | 248/2200 | 355/2100 | 355/2100 | 355/2100 |
| Engine Rated Torque (lb-ft/rpm) | 856/1350 | 856/1350 | 856/1350 | 856/1350 | 856/1350 | 856/1350 | 1317/1316 | 1317/1316 | 1317/1316 |
| Emission Standard | T4F | T4F | T4F | T4F | T4F | T4F | T4F | T4F | T4F |
| Piston Displacement (L) | 7.7 | 7.7 | 7.7 | 7.7 | 7.7 | 7.7 | 10.84 | 10.84 | 10.84 |
| Drive Axle | Kessler | Kessler | Kessler | Kessler | Kessler | Kessler | Kessler | Kessler | Kessler |

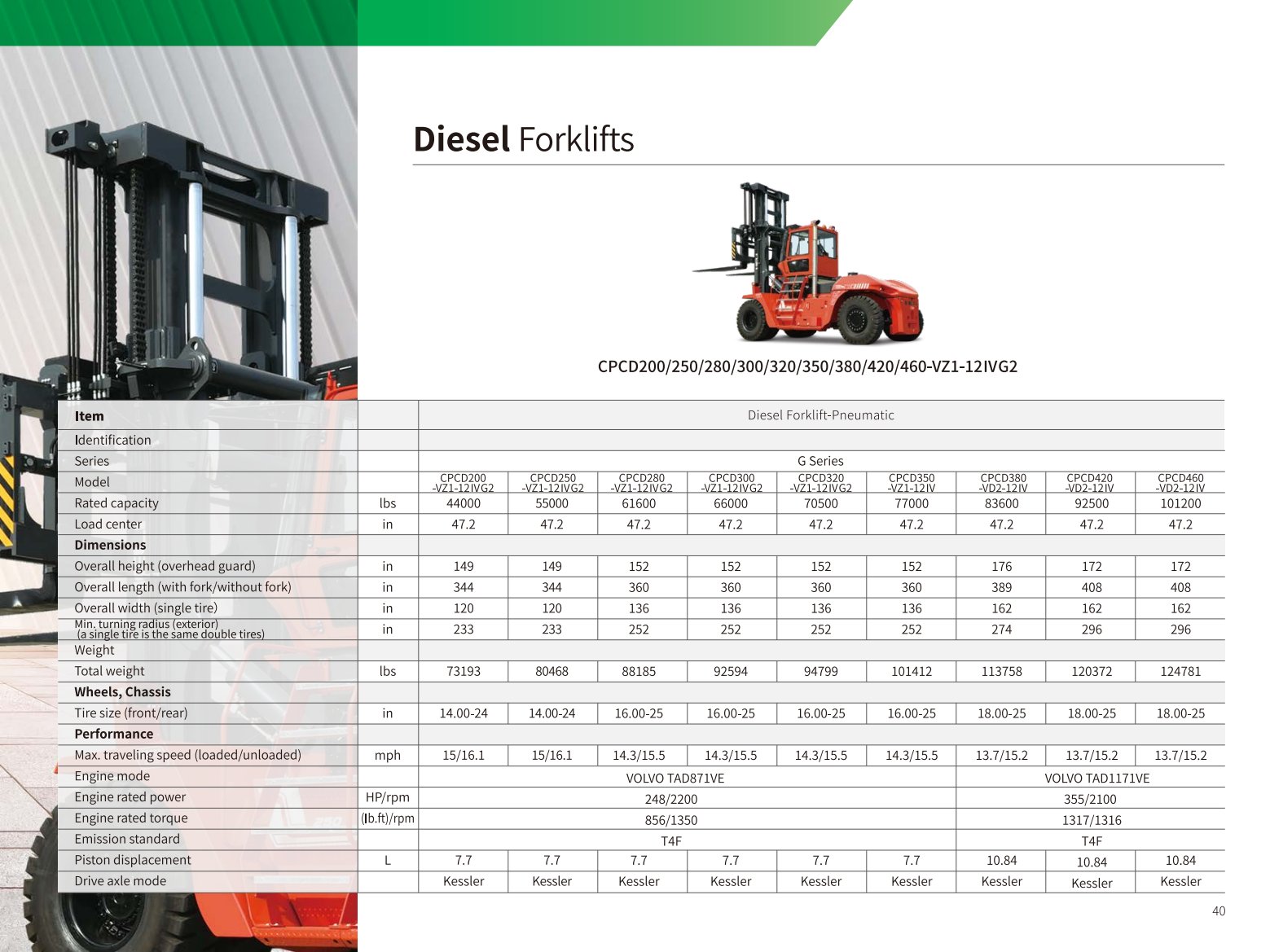

Full specifications: Spec Sheet (PDF)
Interested in the Diesel Pneumatic Tire Forklift?
Our team will help you configure the right truck for your operation, with local parts and service support.
Product information and images courtesy of the manufacturer. Specifications subject to change.
