Key Features
Dual-drive, small turning radius and flexible operation. High load capacity.
Heli · Stand-Up Rider · New Model Showroom

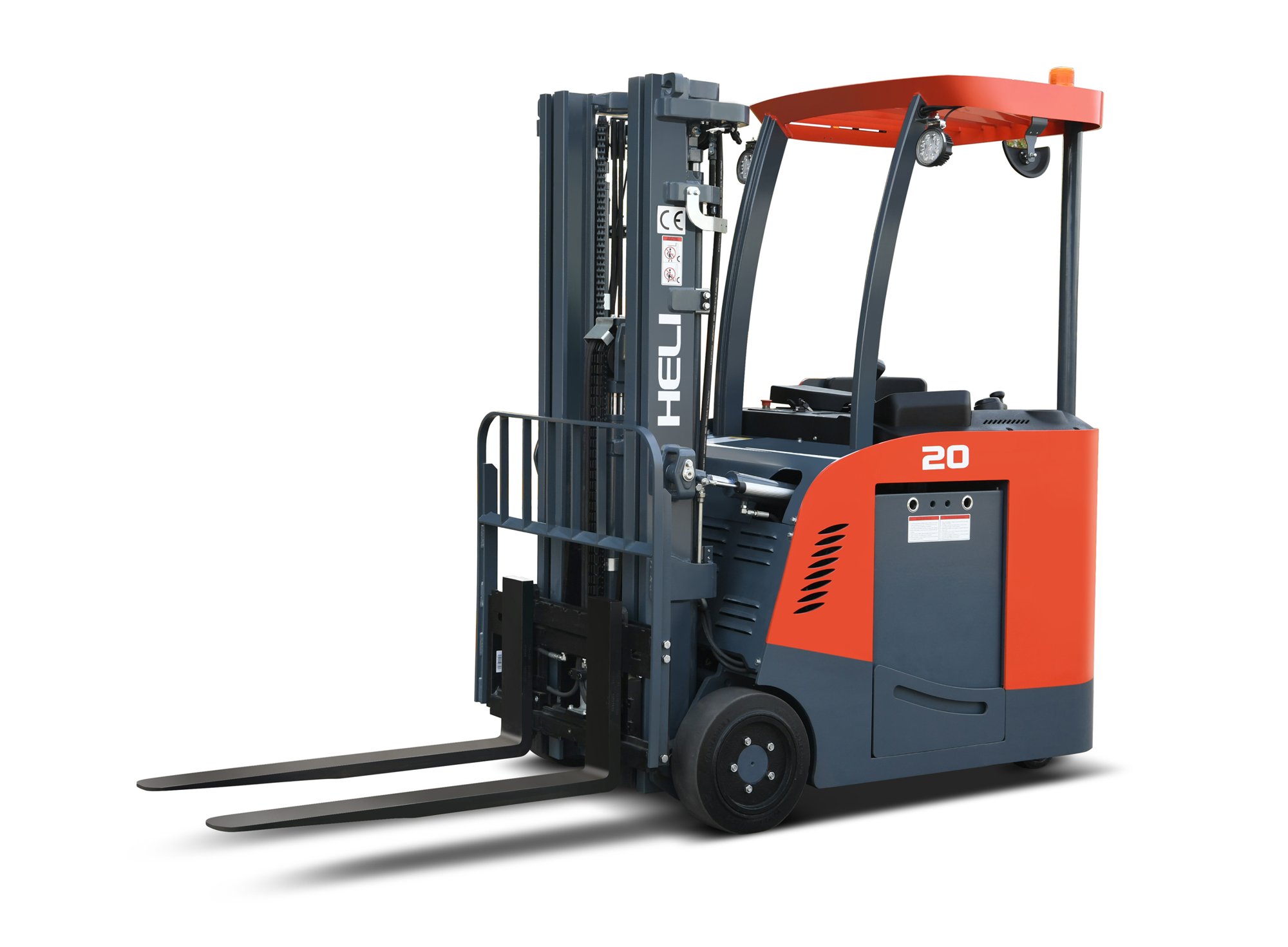

48V Electric Lithium-ion 3-Wheel Stand-Up Forklift
Heli G Series 48V Electric Lithium-ion 3-Wheel Stand-Up Forklift (3,000-4,000 lbs)
The Heli G Series Three Wheel Stand-Up Forklift (Li-ion) 48V line includes 4 models with capacities of 3,000-4,000 lbs. Dual-drive, small turning radius and flexible operation. High load capacity.
- CPDSR15 (GA2LI) / CPDSR15 (GB2LI) / CPDSR18 / CPDSR20
- Three Wheel Stand-Up Forklift (Li-ion) 48V
- Battery: 48/271 / 48/404
- 3,000 / 3,500 / 4,000 lbs
- Full free 4-stage mast available
Overview
Heli G Series Three Wheel Stand-Up Forklift (Li-ion) 48V
The Heli G Series Three Wheel Stand-Up Forklift (Li-ion) 48V line includes 4 models with capacities of 3,000-4,000 lbs. Dual-drive, small turning radius and flexible operation. High load capacity.
- Load Capacity
- 3,000-4,000 lbs
- Travel Speed Up To
- 7 mph
- Battery
- 48V Lithium-ion
- Overhead Guard Height
- 88 in
Features
Models in the Series
- CPDSR15 (GA2LI) – 3000 lbs
- CPDSR15 (GB2LI) – 3000 lbs
- CPDSR18 – 3500 lbs
- CPDSR20 – 4000 lbs
Power & Drive
- Battery Voltage/Rated Capacity (5h) (V/Ah): 48/271 / 48/404
- Controller: ZAPI
- Charger: 3PH/480V, 3PH/220V
Available Options
- Large capacity lithium batteries
- 4-Stage mast
- Cold storage
- FICS
- Various work lights and warning lights
Tech Specs
| Specification | CPDSR15 (GA2LI) | CPDSR15 (GB2LI) | CPDSR18 | CPDSR20 |
|---|---|---|---|---|
| Configuration Number | GA2LI | GB2LI | GA2LI | GA2LI |
| Load Capacity (lbs) | 3000 | 3000 | 3500 | 4000 |
| Load Center (in) | 24 | 24 | 24 | 24 |
| Overhead Guard Height (in) | 88 | 88 | 88 | 88 |
| Overall Length (without fork) (in) | 68 | 70 | 70 | 72 |
| Overall Width (in) | 42 | 42 | 42 | 42 |
| Min. Outside Turning Radius (in) | 56 | 60 | 58 | 60 |
| Travel Speed, loaded/unloaded (mph) | 7 | 7 | 7 | 7 |
| Lifting Speed, loaded/unloaded (fpm) | 65/110 | 65/110 | 65/110 | 61/105 |
| Max. Gradeability, loaded/unloaded (%) | 15/15 | 15/15 | 15/15 | 15/15 |
| Battery Voltage/Rated Capacity (5h) (V/Ah) | 48/271 | 48/404 | 48/404 | 48/404 |
| Endurance (recommended) (h) | 5-7 | 7-9 | 6-8 | 6-8 |
| Controller | ZAPI | ZAPI | ZAPI | ZAPI |
| Charger | 3PH/480V, 3PH/220V | 3PH/480V, 3PH/220V | 3PH/480V, 3PH/220V | 3PH/480V, 3PH/220V |

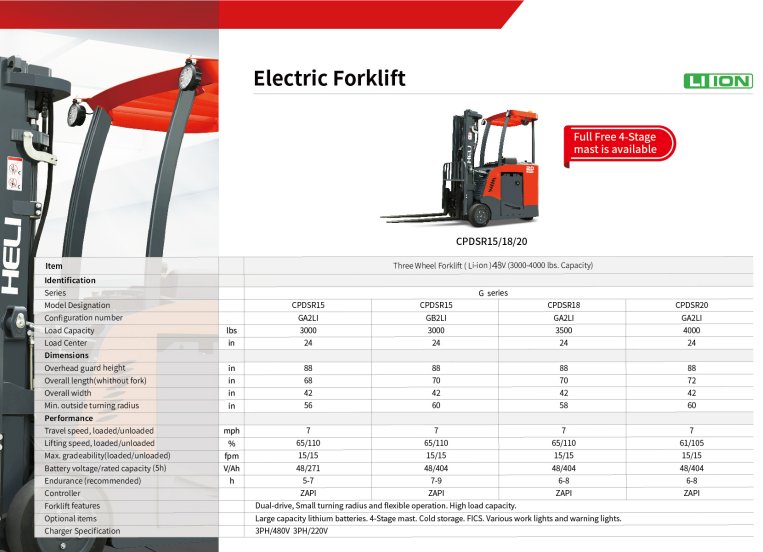

Full specifications: Spec Sheet (PDF)
Interested in the 48V Electric Lithium-ion 3-Wheel Stand-Up Forklift?
Our team will help you configure the right truck for your operation, with local parts and service support.
Product information and images courtesy of the manufacturer. Specifications subject to change.
