Key Features
Rider low-level order pickers with a platform that lifts to about 45 in; the OPL10-S adds lifting forks (31.5 in).
Heli · Order Picker · New Model Showroom
Electric Low Level Order Picker
Heli Electric Low Level Order Picker (2,200-2,600 lbs)
The Heli Electric Low Level Order Picker (Li-ion) line includes 3 models with capacities of 2,200-2,600 lbs. Rider low-level order pickers with a platform that lifts to about 45 in; the OPL10-S adds lifting forks (31.5 in).
- OPL10 / OPL12 / OPL10-S
- Electric Low Level Order Picker (Li-ion)
- Battery: 24/225 / 24/300
- 2,200 / 2,600 lbs
Overview
Heli Electric Low Level Order Picker (Li-ion)
The Heli Electric Low Level Order Picker (Li-ion) line includes 3 models with capacities of 2,200-2,600 lbs. Rider low-level order pickers with a platform that lifts to about 45 in; the OPL10-S adds lifting forks (31.5 in).
- Load Capacity
- 2,200-2,600 lbs
- Travel Speed Up To
- 4.8 mph
- Battery
- 24V Lithium-ion
- Lift Height of Platform Up To
- 47.2 in
Features
Models in the Series
- OPL10 – 2200 lbs
- OPL12 – 2600 lbs
- OPL10-S – 2200 lbs
Power & Drive
- Battery Voltage/Capacity (V/Ah): 24/225 / 24/300
- Controller: CURTIS
- Total Weight (with battery) (lbs): 2635 / 3638
Tech Specs
| Specification | OPL10 | OPL12 | OPL10-S |
|---|---|---|---|
| Loading Capacity (lbs) | 2200 | 2600 | 2200 |
| Load Center (in) | 28 | 20 | 24 |
| Operating Type | Rider | Rider | Rider |
| Wheel Type | PU | PU | PU |
| Lift Height of Platform (in) | 44.9 | 44.9 | 47.2 |
| Mast Extended Height (in) | 91.9 | 91.9 | 92.9 |
| Max. Fork Lift Height (in) | - | - | 31.5 |
| Mast Lowered Height (in) | 50.2 | 50.2 | 51.2 |
| Overall Length (in) | 113.6 | 99.8 | 109.8 |
| Overall Width (in) | 32 | 32 | 32 |
| Min. Outside Turning Radius (in) | 75.6 | 75.6 | 60.4 |
| Min. Aisle Width, pallet 1000 x 1200 (in) | 114 | 114 | 124.3 |
| Travel Speed, laden/unladen (mph) | 4.38/4.44 | 4.38/4.44 | 4.78/4.85 |
| Lifting Speed, laden/unladen (fpm) | 19.7/29.5 | 19.7/29.5 | 19.7/29.5 |
| Battery Voltage/Capacity (V/Ah) | 24/225 | 24/225 | 24/300 |
| Controller | CURTIS | CURTIS | CURTIS |
| Total Weight (with battery) (lbs) | 2635 | 2635 | 3638 |

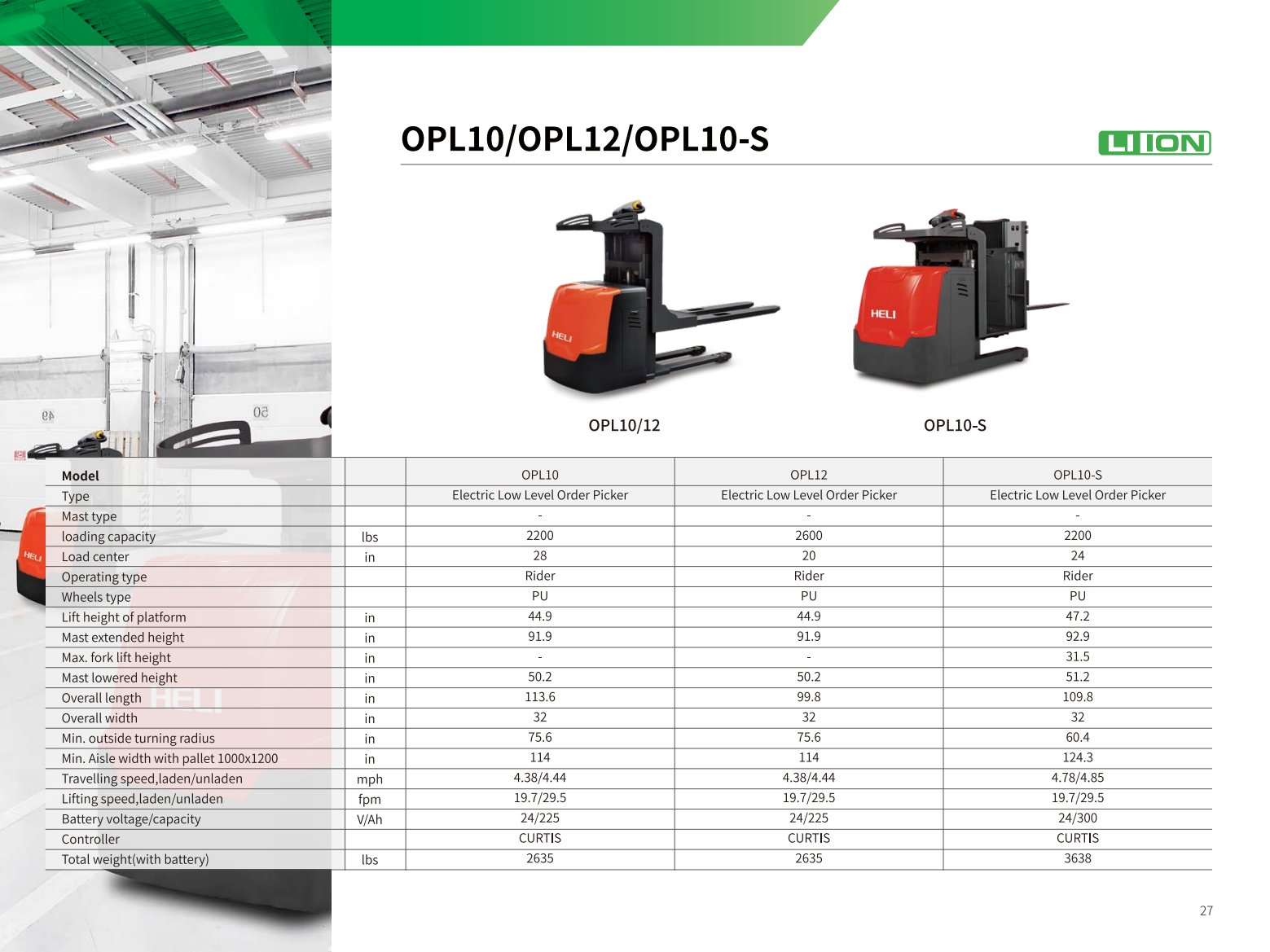

Full specifications: Spec Sheet (PDF)
Interested in the Electric Low Level Order Picker?
Our team will help you configure the right truck for your operation, with local parts and service support.
Product information and images courtesy of the manufacturer. Specifications subject to change.
