Pin-Wheeling
With the handle in the fully upright position, the WPL40 pin-wheels in and out of tight spaces using a smaller, tighter turn-radius and moves up to 4,000 lbs in close-quarters with ease.
Clark · Pallet Jack · New Model Showroom
WPL40

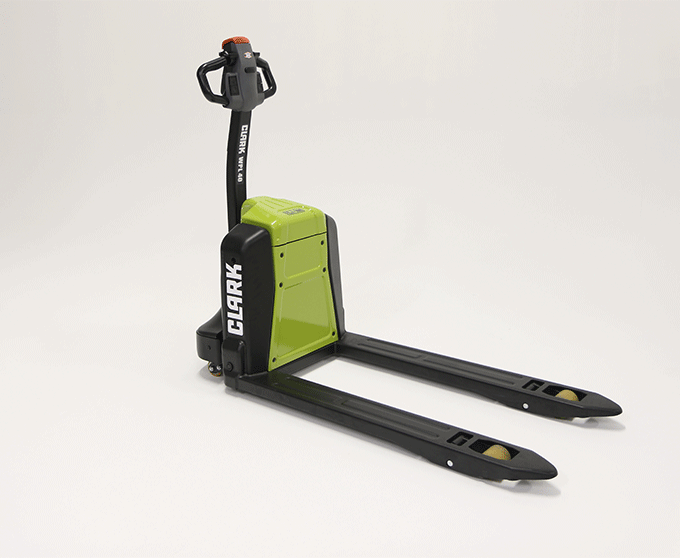

Clark WPL40 Walkie Pallet Truck (4,000 lbs)
The CLARK WPL40 makes navigating tight spaces easier than ever. With the ability to pinwheel with the handle in the upright position, the WPL40 allows operators to navigate narrow aisles and trailers with ease, without risking injury. Powered by a 48V Lithium-Ion battery, and equipped with an ergonomic handle and smooth rollers for ease-of-entry on pallets, the WPL40 is the perfect choice for busy operations that load and unload in tight spaces.
- WPL40
- Walkie Pallet Truck
- 48 Volt
- 4,000 lbs
Overview
WPL40
The CLARK WPL40 makes navigating tight spaces easier than ever. With the ability to pinwheel with the handle in the upright position, the WPL40 allows operators to navigate narrow aisles and trailers with ease, without risking injury. Powered by a 48V Lithium-Ion battery, and equipped with an ergonomic handle and smooth rollers for ease-of-entry on pallets, the WPL40 is the perfect choice for busy operations that load and unload in tight spaces.
- Load Capacity Up To
- 4,000 lbs
- Travel Speed Up To
- 3.1 mph (L) / 3.4 mph (U)
- Right Angle Stack Least
- 54 in
- Width Up To
- 27.4 in
Features
Hydraulics
The permanent magnet DC pump motor and chrome-plated lifting cylinder provides for smooth and efficient lifting, as well as greater durability.
Brakes
The electromagnetic brake, mounted on the motor armature shaft, multiplies the braking power through the transmission and provides good stopping power when the control tiller is raised to the full vertical position or lowered to full horizontal position beyond the operating range. Additionally, the armature-mounted brake design:
Ergonomic Steer/Control Handle
With travel, lift and lower functions all located in an ergonomic operator handle, operators can access all controls without having to lift a hand from the handle. Additionally, the WPL40 control-handle includes:

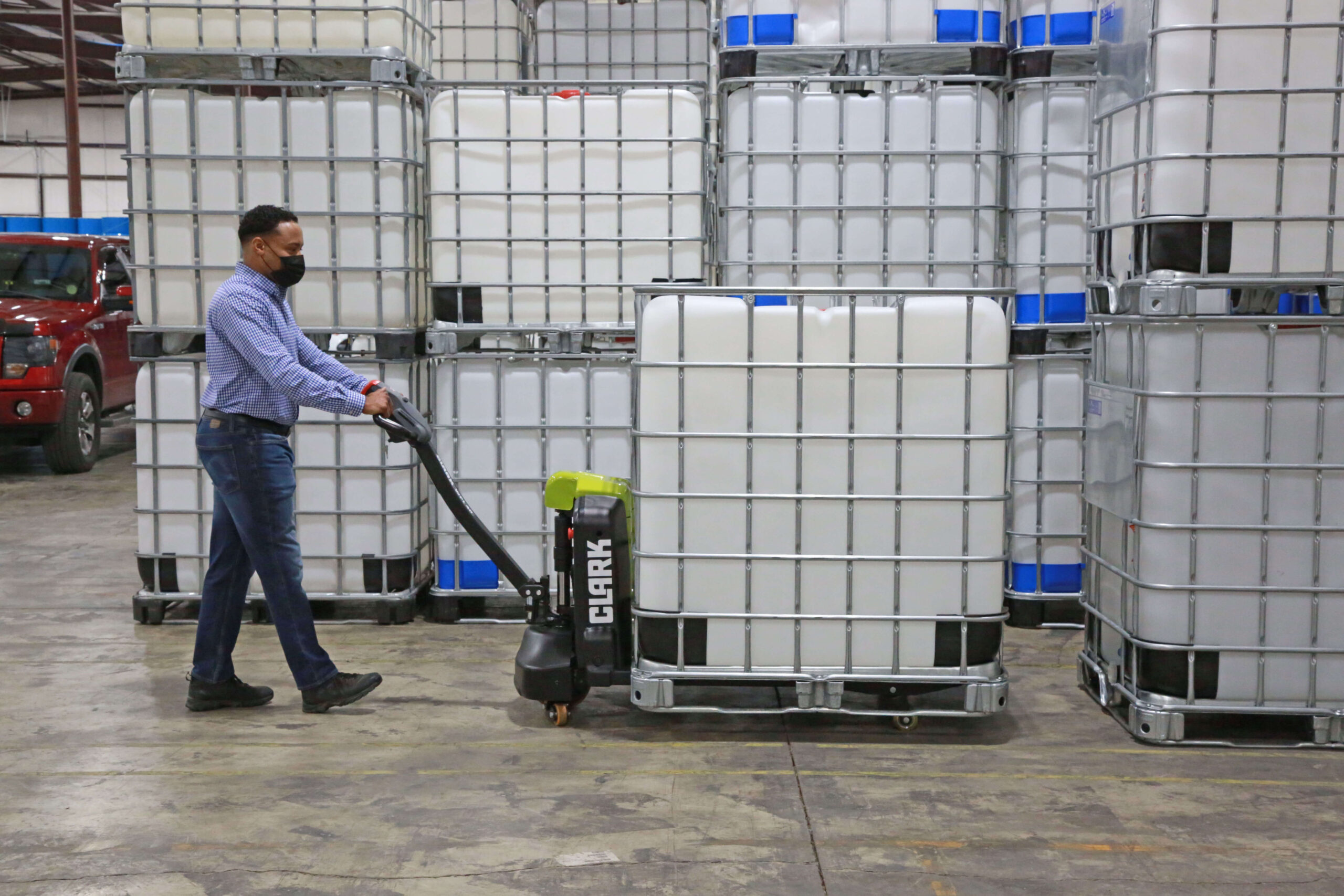

Fork Design With Tapered Tips
The WPL40’s fork construction and pallet entry slide system, which allows a lifting of the forks up-and-over the bottom board, provides easy pallet access. The forks, at 27” OAW x 46.0 OAL, can achieve a maximum elevation of over 7.5”. The shape of the load wheel housing or toe box, ensures pallet entry and exit can occur without the need for wearable rollers.
Electrical Componentry
The water-resistant connectors and shrouded wiring harness supply power reliably to key components. The WPL40 system includes a key switch, emergency power disconnect, and onboard dock for Easy Exchange Battery.
Maintenance
The fully adjustable pull rods and torsion bar extends the WPL40 operating life in delivery truck and dock use applications. The WPL40 goes further with easily accessible grease zerks for easier maintenance.

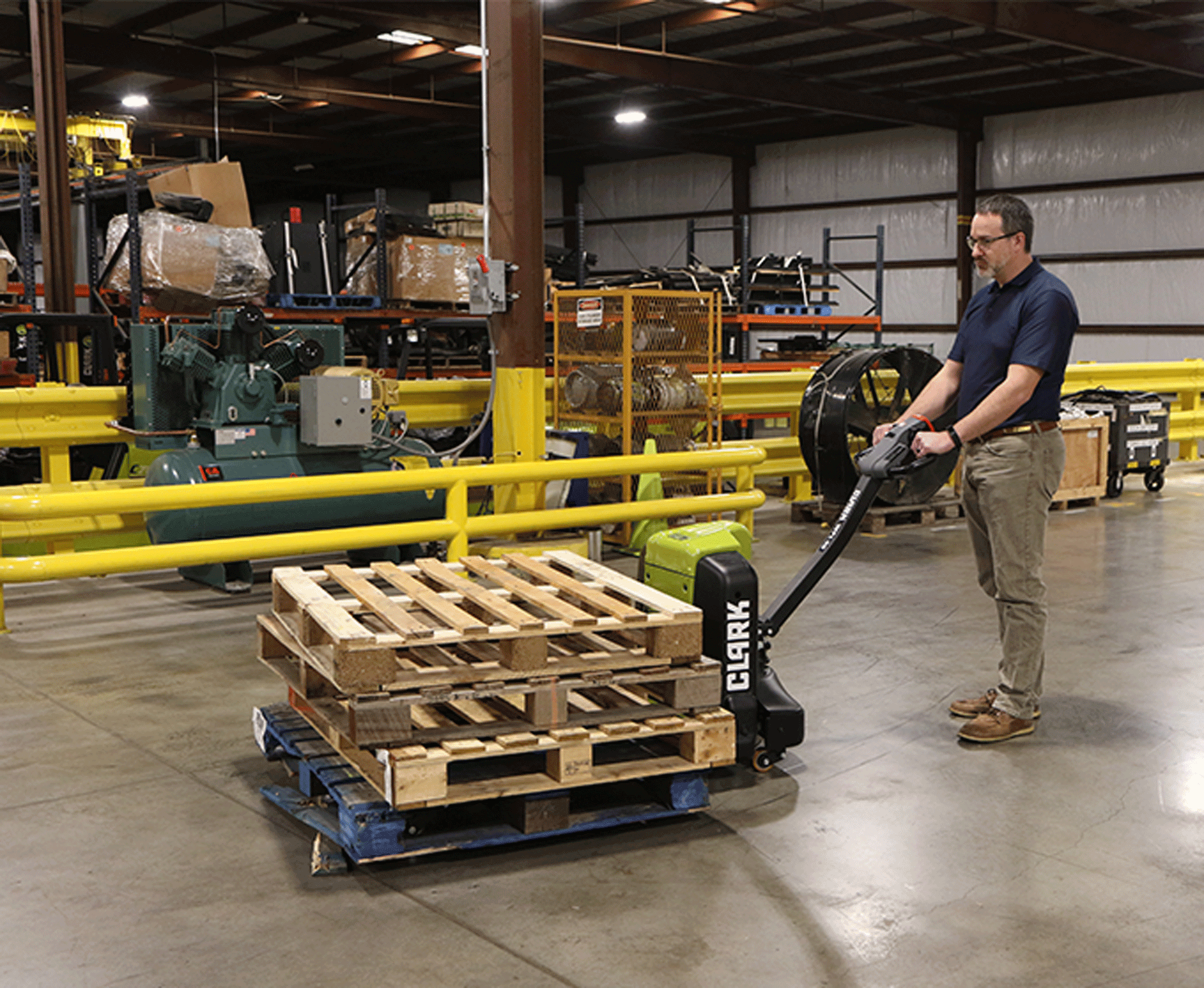

Applications
Tech Specs
| Model | Load Capacity / Rated Load (lbs/kg) | Height Overhead Guard (in/mm) | Width (in/mm) | Right Angle Stack (in/mm) | Outside Turning Radius (in/mm) | Inside Turning Radius (in/mm) | Top Speed Loaded (mph / km/h) | Top Speed Unloaded (mph / km/h) | Power Unit - HP(KW) @rpm |
|---|---|---|---|---|---|---|---|---|---|
| WPL40 | 4000 / 1800 | 27.2 / 690 | 27.4 (695) | 78.0 | N/A / N/A | N/A / N/A | 3.1 / 5.0 | 3.4 / 5.5 | 48 Volt |
Full specifications: Brochure (PDF) Spec Sheet (PDF)
Interested in the WPL40?
Our team will help you configure the right truck for your operation, with local parts and service support.
Product information and images courtesy of the manufacturer. Specifications subject to change.
