Clark SSX12-18 Walkie Straddle Stacker (2,500-4,000 lbs)

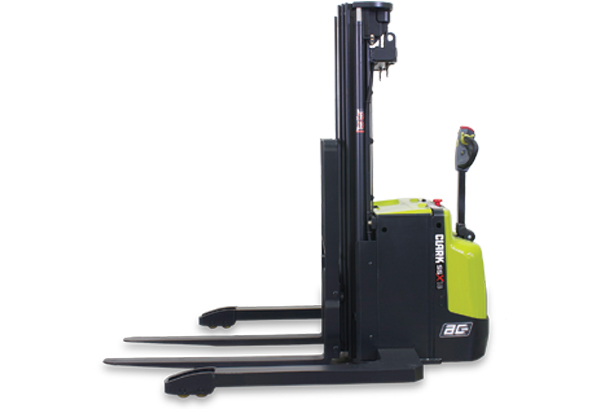

The CLARK SSX is a walkie straddle stacker with a capacity range of 2,500-4,000 lbs. Contact B&H Industrial Service for configurations, pricing and availability.
The CLARK SSX is a walkie straddle stacker with a capacity range of 2,500-4,000 lbs. Contact B&H Industrial Service for configurations, pricing and availability.
CLARK 100% AC design drive motors are fully enclosed with no brushes to change reducing operating costs. The enclosed motors also keep out dust and contaminants, extending the life of the unit. The motor has thermal protection built in which will reduce travel speed to protect the motor from high temperatures or burning out.
With no master cylinder, no seals, and no hydraulic fluids, the electromagnetic brakes on the SSX are practically maintenance-free, with no leaks or need to replace components. The brakes will also engage when the handle is in the upright or down position, providing excellent operator safety. Additionally, the parking brake automatically engages when the truck comes to a rest, eliminating the chance of roll back on inclines.
The ergonomically-designed handle was created with the operator in mind. The high-strength plastic protects against impact damage, and all of the key functionality is within easy reach without needing a second hand. The optional keypad with a 4 digit access code allows for protected access to customizable controls including truck speed and acceleration.
The integral power pack on the SSX includes the pump motor, hydraulic tank, and valve, which keeps the system compact and reduces service requirements.
| Model | Load Capacity / Rated Load (lbs/kg) | Height Overhead Guard (in/mm) | Width (in/mm) | Right Angle Stack (in/mm) | Outside Turning Radius (in/mm) | Inside Turning Radius (in/mm) | Top Speed Loaded (mph / km/h) | Top Speed Unloaded (mph / km/h) | Power Unit - HP(KW) @rpm |
|---|---|---|---|---|---|---|---|---|---|
| SSX 12 | 2500 / 1200 | 34 to 51 / 865 to 1295 | 40.25 (1022) | 95.3 (2422) | 61.5 / 1563 | N/A / N/A | N/A / N/A | 3.7 / 6 | 24 volt - Electric |
| SSX16 | 3500 / 1600 | 34 to 51 / 865 to 1295 | 40.25 (1022) | 95.3 (2422) | 61.5 / 1563 | N/A / N/A | N/A / N/A | 3.7 / 6 | 24 volt - Electric |
| SSX18 | 4000 / 1800 | 34 to 51 / 865 to 1295 | 40.25 (1022) | 95.3 (2422) | 61.5 / 1563 | N/A / N/A | N/A / N/A | 3.7 / 6 | 24 volt - Electric |
Full specifications: Spec Sheet (PDF)
Our team will help you configure the right truck for your operation, with local parts and service support.
Product information and images courtesy of the manufacturer. Specifications subject to change.
