Clark S40-60 IC Pneumatic Forklift (8,000-12,000 lbs)
Clark S40-60 IC Pneumatic Forklift (8,000-12,000 lbs) - Image 2
Clark S40-60 IC Pneumatic Forklift (8,000-12,000 lbs) - Image 3
Clark S40-60 IC Pneumatic Forklift (8,000-12,000 lbs) - Image 4
Clark S40-60 IC Pneumatic Forklift (8,000-12,000 lbs) - Image 5
Clark S40-60 IC Pneumatic Forklift (8,000-12,000 lbs) - Image 6
Clark S40-60 IC Pneumatic Forklift (8,000-12,000 lbs) - Image 7
Clark S40-60 IC Pneumatic Forklift (8,000-12,000 lbs) - Image 8

Clark · Sit-Down Rider · New Model Showroom

S40-60

Clark S40-60 IC Pneumatic Forklift (8,000-12,000 lbs)

CLARK S-SERIES products are designed with one goal in mind: providing a solution to customers that is SMART, STRONG, and SAFE. The S40-60 IC Pneumatic truck achieves that goal through a solid, rugged frame; integrated Smart Dash; and operator safety features that are second to none. Designed with the operator in mind, and well-suited to a wide variety of applications, the S40-60 keeps your operation moving forward for years to come.

  • S40D / S45D / S50D / S55D / S60D / S40L / S45L / S50L / S55L
  • IC Pneumatic Forklift
  • LP (Kubota WG3800) or Diesel (HDI D34)
  • 8,000 / 9,000 / 10,000 / 11,000 / 12,000 lbs

Call for Price · +1-417-862-6960

Request Quote

Overview

S40-60

CLARK S-SERIES products are designed with one goal in mind: providing a solution to customers that is SMART, STRONG, and SAFE. The S40-60 IC Pneumatic truck achieves that goal through a solid, rugged frame; integrated Smart Dash; and operator safety features that are second to none. Designed with the operator in mind, and well-suited to a wide variety of applications, the S40-60 keeps your operation moving forward for years to come.

Load Capacity Range
8,000-12,000 lbs
Travel Speed Up To
13.4 mph (L) / 14.0 mph (U)
Overhead Guard Least
91.5 in
Turning Radius Up To
118.2 in
Get a Quote
S40-60

Features

SMART

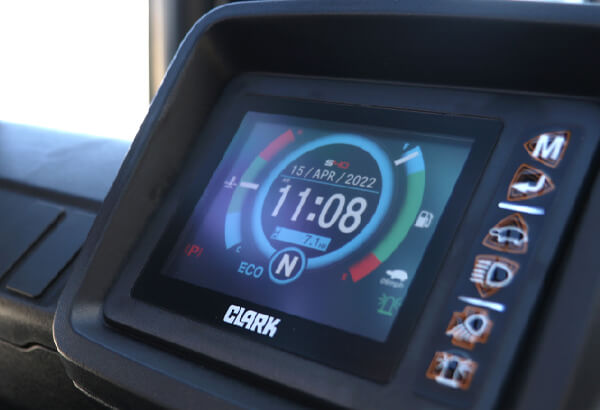

The interactive dash on the S40-60 provides audible and visual warnings to operators, and is password-protected, allowing only authorized users to change truck settings. The on-board diagnostics allow operators to address any issues quickly and efficiently, while the engine and powertrain protection helps safeguard your truck against overheating. And, with two selectable performance modes on the LPG engine, operators have greater flexibility to optimize the performance of the truck in their application.

SMART

STRONG

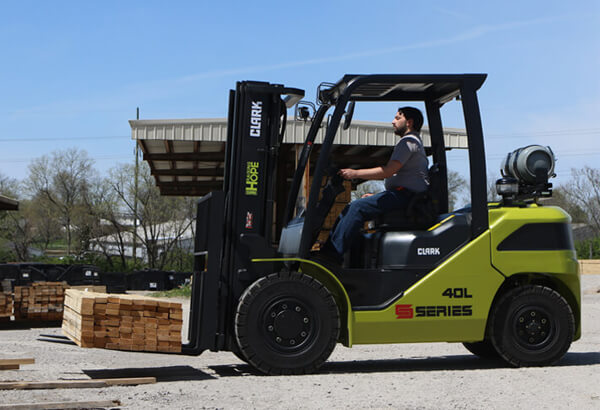

With a fully welded heavy gauge frame, the CLARK-standard and field-tested nested I-beam mast, and external side thrust rollers, the S40-60 is durable, reliable, and STRONG. Stability is further improved with the optimal center of gravity, allowing the truck to maintain capacity and balancing the truck when fully loaded.

STRONG

SAFE

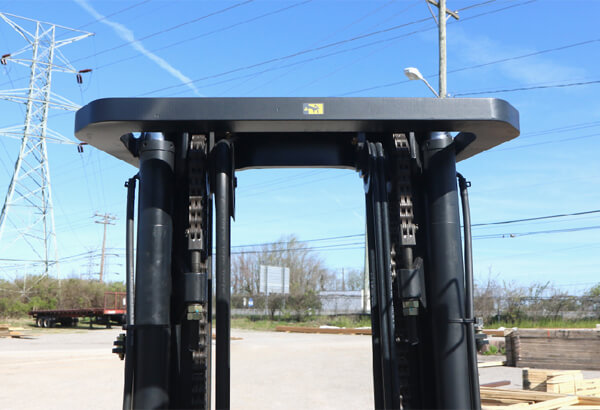

The S40-60 series is designed to promote operator safety, with several key safety features built into the truck. The Nested I-Beam mast provides greater stability, and the lowered cross bar on the S40 provides a wider field of vision, allowing operators to navigate with confidence. The Automatic Parking Brake and SMART Dash with audible and visual warnings are both standard on the S40-60, further improving operator safety.

SAFE

Advanced Ergonomics

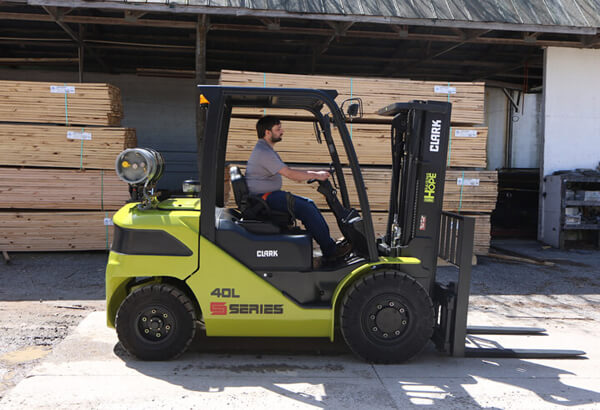

Advanced ergonomic features on the S40-60 include a standard adjustable full-suspension vinyl seat, hood mounted levers with low input force required, a small diameter steering wheel with a standard spinner knob, adjustable steering column, and spacious floorboard which can accommodate operators of all boot sizes. The design of the S40-60 has been optimized to reduce vibration and noise in the operator compartment. And the optimized initial step height and convenient grab handle on the overhead guard allows for easy entry/exit on the truck as well.

Advanced Ergonomics

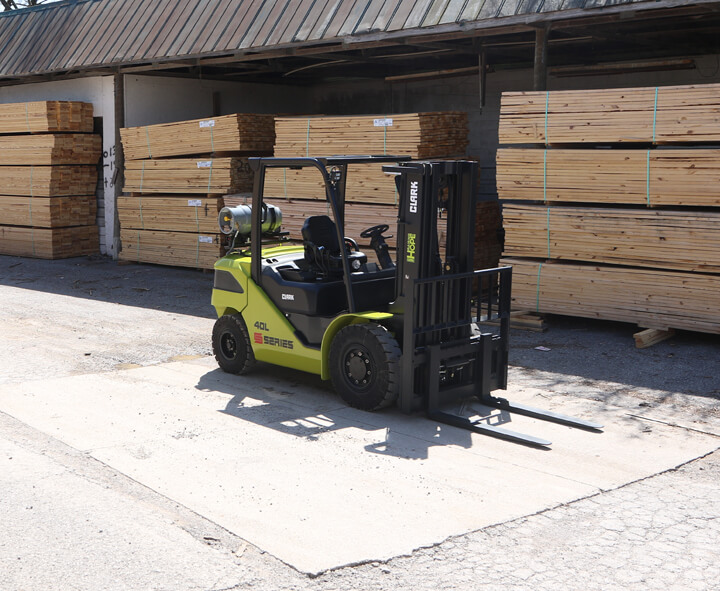

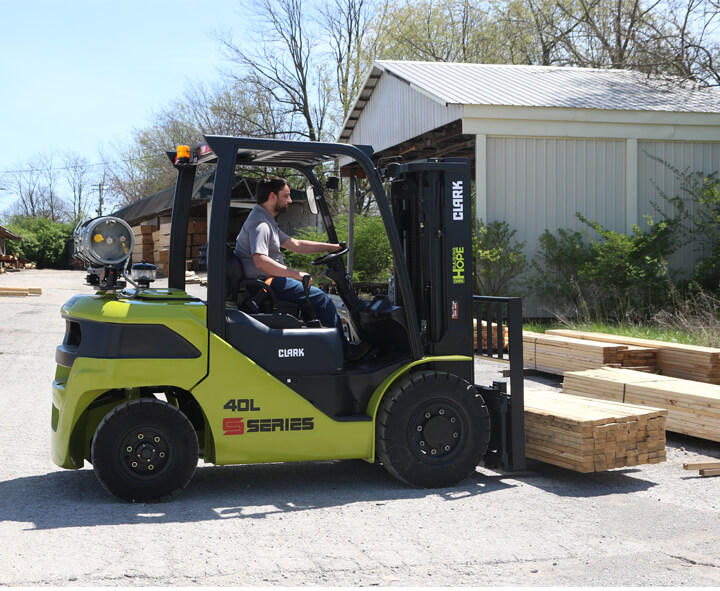

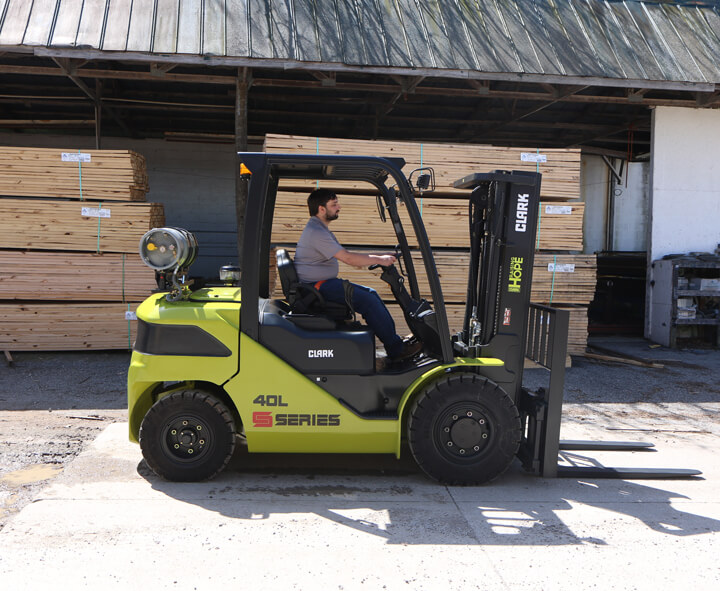

Applications

Building Materials, Masonry & Concrete
Freight/Logistics
Lumber
Manufacturing & Heavy Industry

Tech Specs

Model Load Capacity / Rated Load (lbs/kg) Height Overhead Guard (in/mm) Width (in/mm) Right Angle Stack (in/mm) Outside Turning Radius (in/mm) Inside Turning Radius (in/mm) Top Speed Loaded (mph / km/h) Top Speed Unloaded (mph / km/h) Power Unit - HP(KW) @rpm
S40D 8000 / N/A 91.5 / 2325 54.3 (1380) 129.9 (3299) 107.7 / 2736 N/A / N/A 13.7 / 22.0 13.0 / 21.0 HDI D34 Diesel T4 74.2@2300
S45D 9000 / N/A 91.5 / 2325 54.3 (1380) 131.9 (3349) 109.7 / 2786 N/A / N/A 13.4 / 21.5 14.0 / 22.5 HDI D34 Diesel T4 74.2@2300
S50D 10000 / N/A 91.5 / 2325 68.1 (1730) 135.7 (3445) 113.3 / 2877 N/A / N/A 13.4 (21.5) / 21.5 14.0 / 22.5 HDI D34 Diesel T4 74.2@2300
S55D 11000 / N/A 91.5 / 2325 68.1 (1730) 138.6 (3519) 115.8 / 2941 N/A / N/A 13.4 (21.5) / 21.5 14.0 / 22.5 HDI D34 Diesel T4 74.2@2300
S60D 12000 / N/A 91.5 / 2325 68.1 (1730) 141.0 (3580) 118.2 / 3002 N/A / N/A 13.4 (21.5) / 21.5 14.0 / 22.5 HDI D34 Diesel T4 74.2@2300
S40L 8000 / N/A 91.5 / 2325 54.3 (1380) 129.9 (3299) 107.7 / 2736 N/A / N/A 11.2 (18.0) / N/A 11.6 / 18.7 HDI D34 Diesel T4 74.2@2300
S45L 9000 / N/A 91.5 / 2325 54.3 (1380) 131.9 (3349) 109.7 / 2786 N/A / N/A 11.2 (18.0) / N/A 11.6 / 18.7 Kubota WG3800 T4 74.2@2300
S50L 10000 / N/A 91.5 / 2325 68.1 (1730) 135.7 (3445) 113.3 / 2877 N/A / N/A 10.6(17.0) / N/A 11.2 / 18.0 Kubota WG3800 T4 74.2@2300
S55L 11000 / N/A 91.5 / 2325 68.1 (1730) 138.6 (3519) 115.8 / 2941 N/A / N/A 10.6(17.0) / N/A 11.2 / 18.0 Kubota WG3800 T4 74.2@2300

Interested in the S40-60?

Our team will help you configure the right truck for your operation, with local parts and service support.

Request Quote +1-417-862-6960

Product information and images courtesy of the manufacturer. Specifications subject to change.
