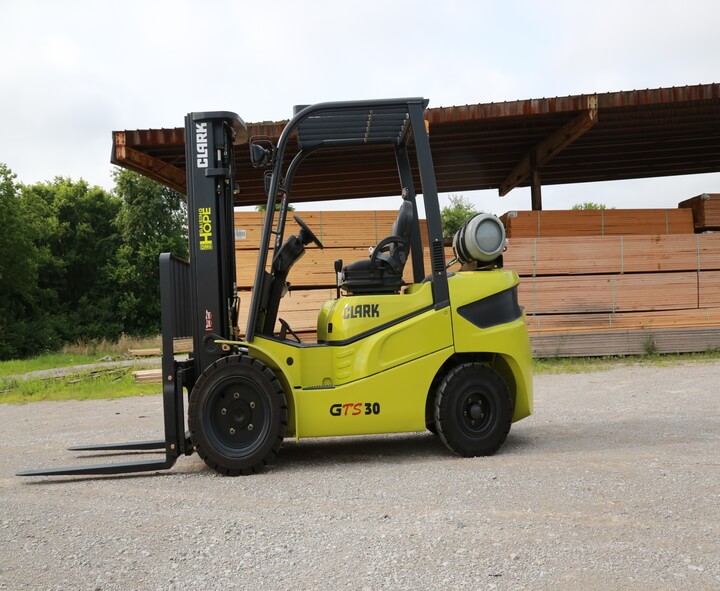

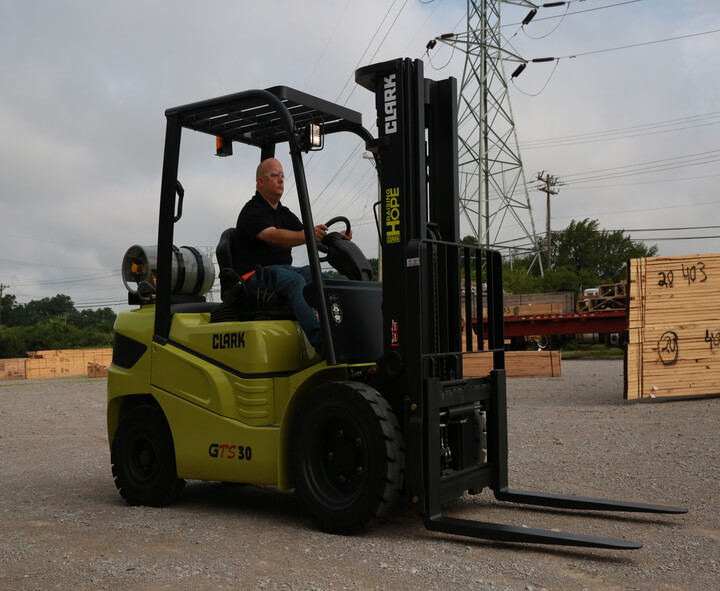

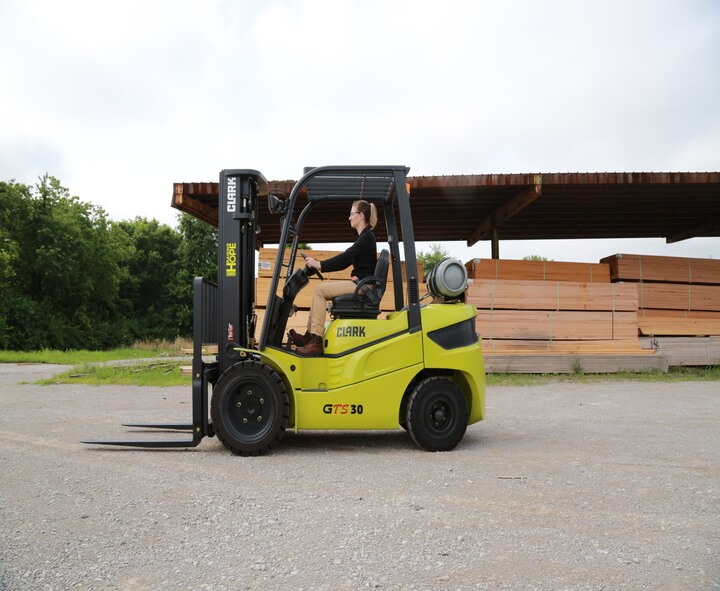

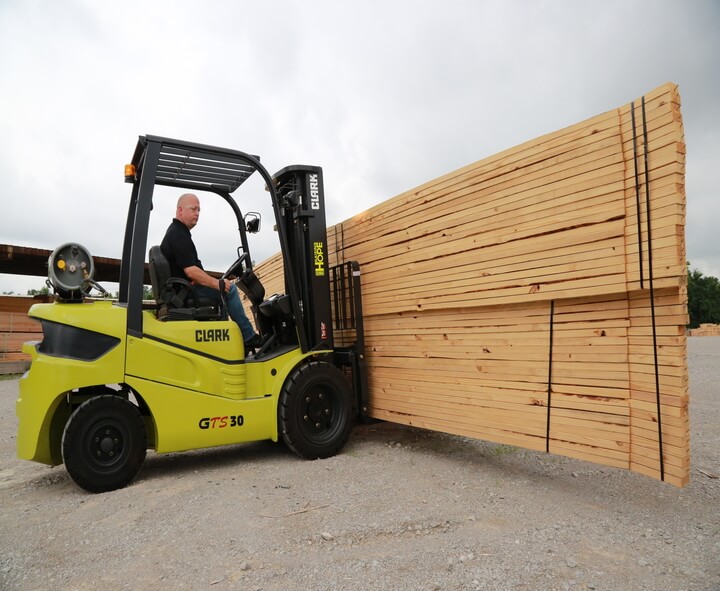

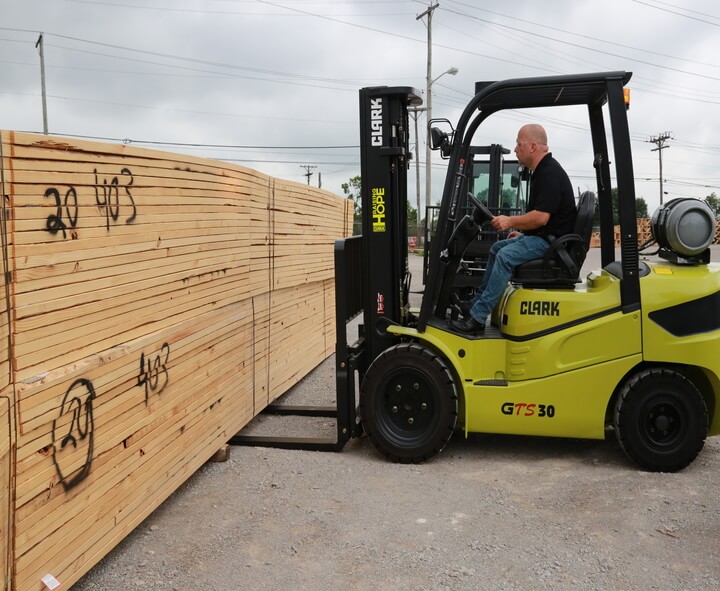

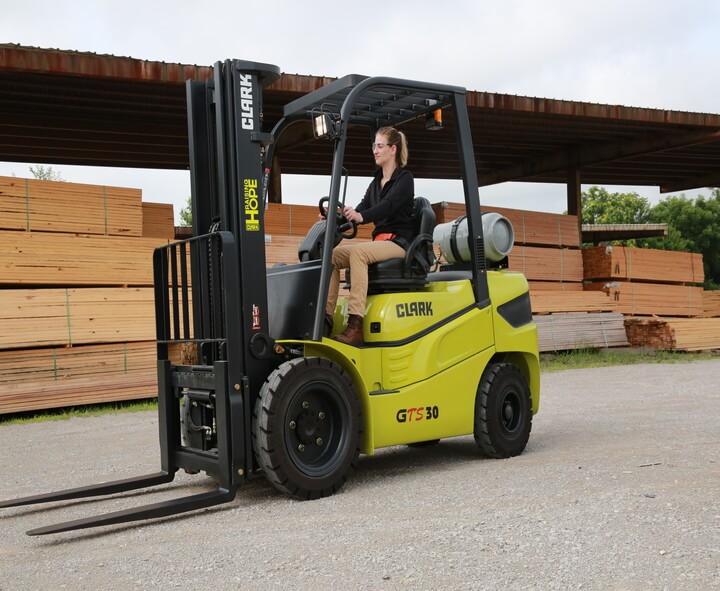

Clark GTS20-33 IC Pneumatic Forklift (4,000-6,600 lbs)
With a combination of durable design, advanced operator ergonomics, and smart technology, the CLARK GTS series provides all of the modern support customers have come to expect with a reliable Built to Last design that keeps your business moving forward.
With a combination of durable design, advanced operator ergonomics, and smart technology, the CLARK GTS series provides all of the modern support customers have come to expect with a reliable Built to Last design that keeps your business moving forward.

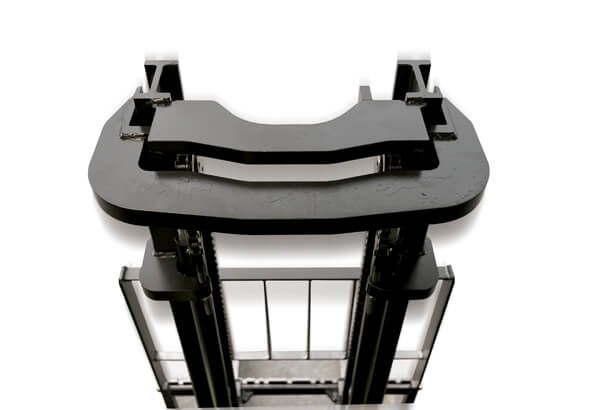

The CLARK GTS series is built with the CLARK-standard nested I-Beam mast, which is designed to reduce mast deflection and improve stability and durability. The interlocking channels reduce rail spread, keeping your loads stable and ensuring your operators can navigate with confidence

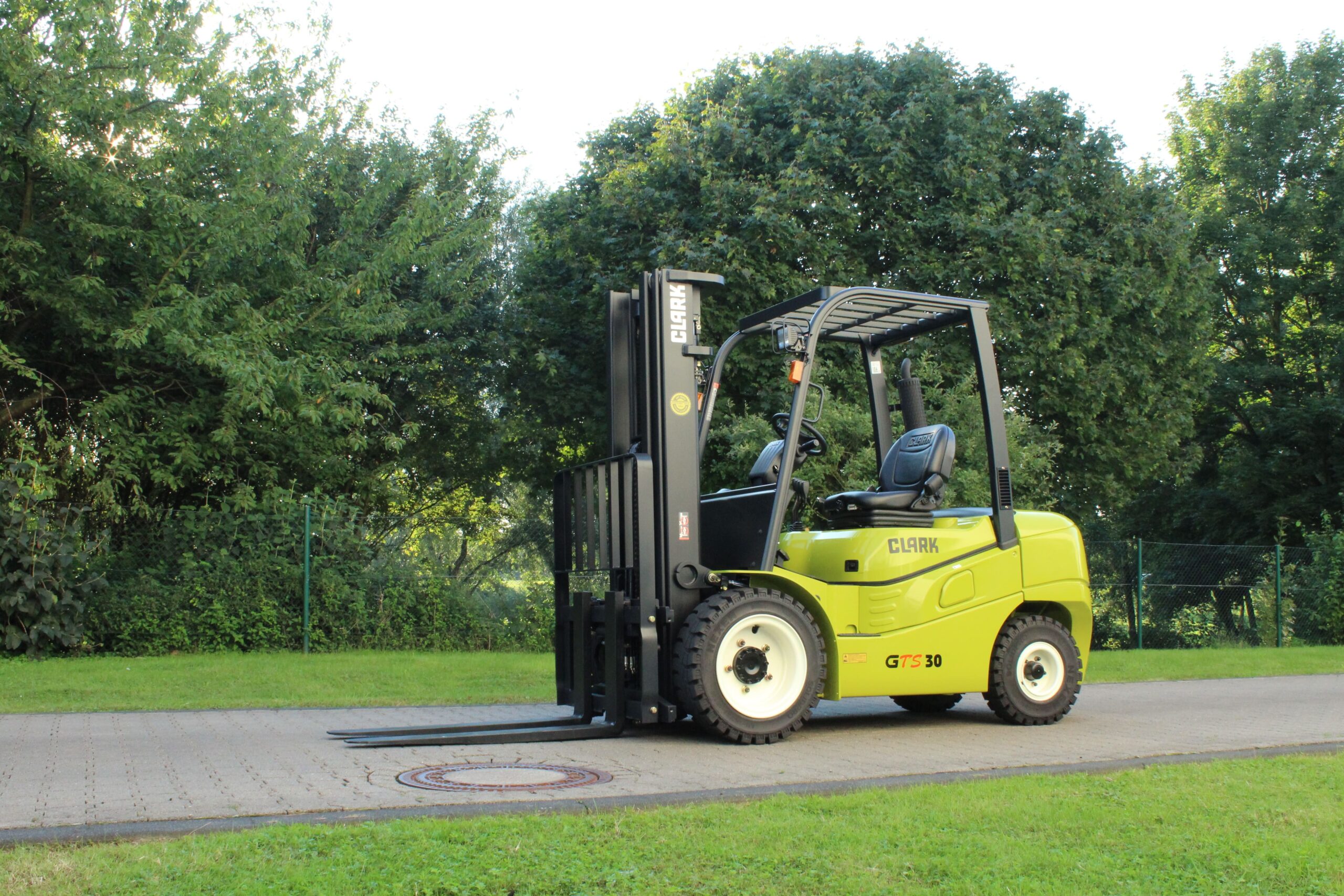

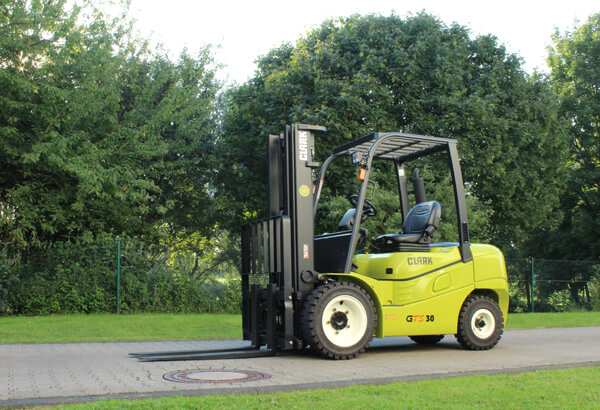

The CLARK GTS series is built with a fully welded heavy gauge frame with thick fenders, protecting your forklift from damage and prolonging the life of your investment for years to come. The engine is designed with an engine monitoring system, which prevents the engine from overheating. Additionally, the truck is equipped with a low fuel light, which alerts the operator when the tank pressure drops below 40 psi.

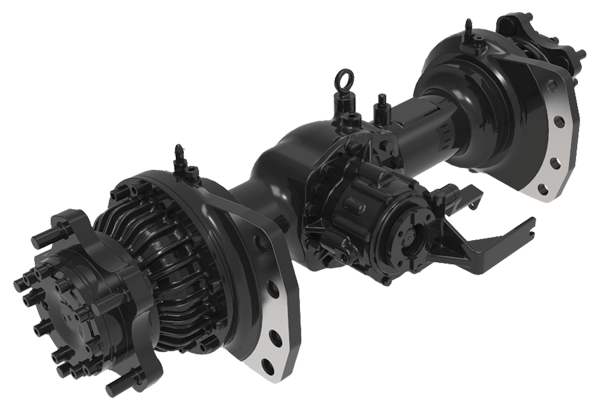

The CLARK GTS is equipped with wet disc brakes, which require less maintenance and have a higher ROI than traditional drum brakes. With a 3 year, 6,000 hour warranty, you can be assured your wet disc brakes will be as durable and reliable as the rest of the GTS. The transmission also disengages when the parking brake is activated, which prevents the operator from driving through the brakes.

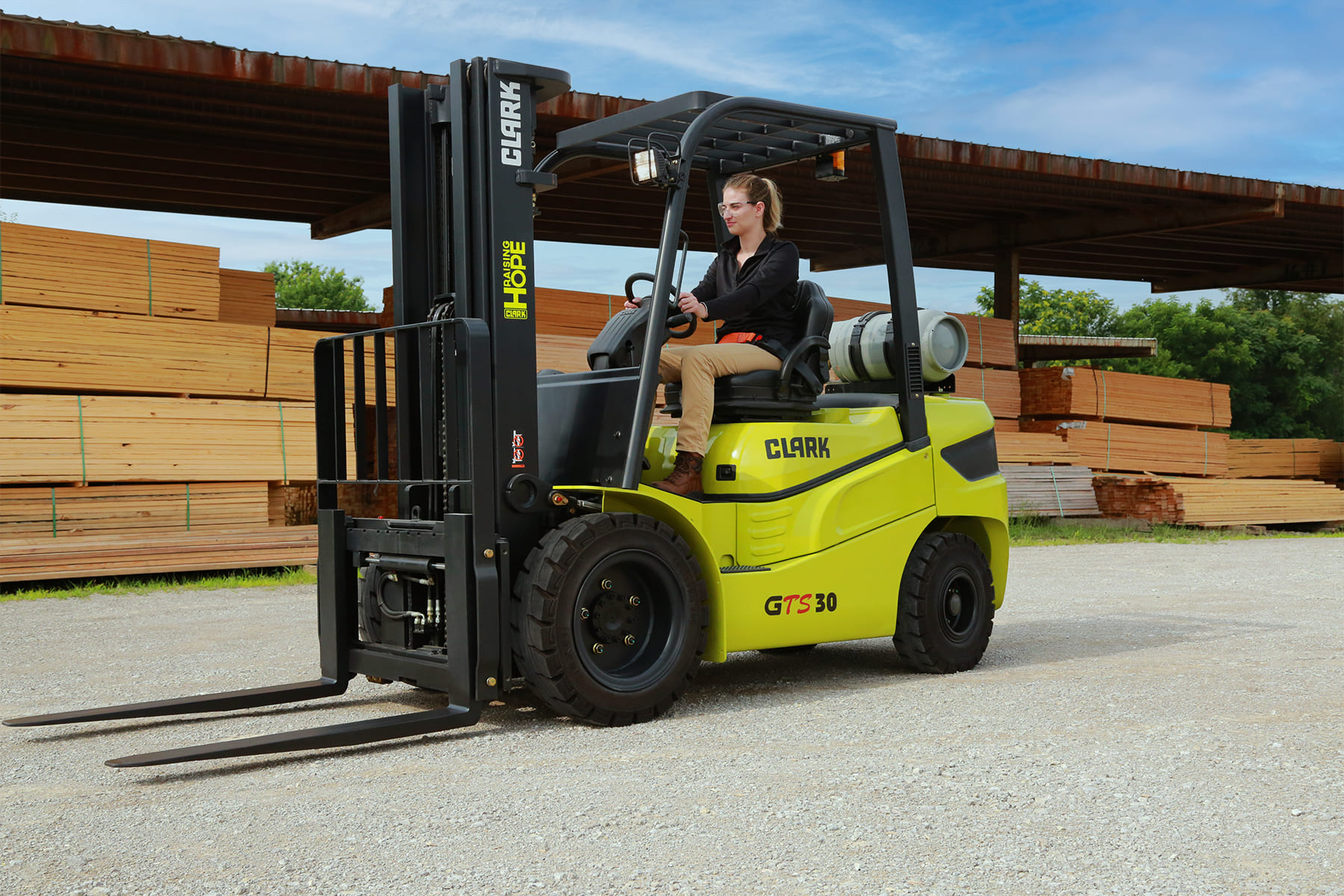

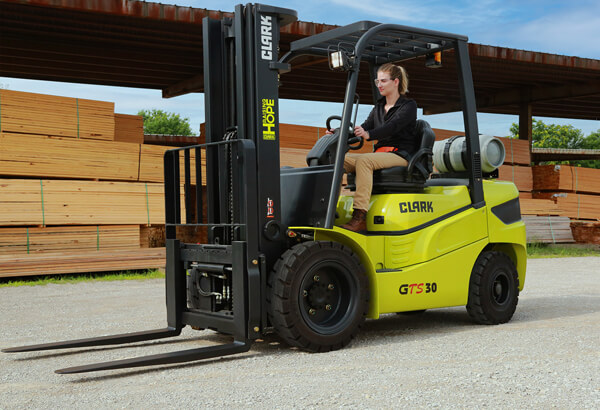

The CLARK GTS series was designed with the operator in mind, with advanced operator ergonomics and easy-to-access features that improve the overall operation of the truck. The GTS is equipped with a full-suspension vinyl seat, hood-mounted levers, a tilting steering column, and two separate pedals for inching and braking for optimal operator comfort. The GTS dash also displays descriptive service codes, which allows the operator to stay informed of the truck’s condition.
| Model | Load Capacity / Rated Load (lbs/kg) | Height Overhead Guard (in/mm) | Width (in/mm) | Right Angle Stack (in/mm) | Outside Turning Radius (in/mm) | Inside Turning Radius (in/mm) | Top Speed Loaded (mph / km/h) | Top Speed Unloaded (mph / km/h) | Power Unit - HP(KW) @rpm |
|---|---|---|---|---|---|---|---|---|---|
| GTS20L | 4000 / 2000 | 85.4 / 2170 | 46.7 (1185) | 108.5 (2755) | 90.2 / 2290 | N/A / N/A | 10.7 / 17.2 | 11.4 / 18.3 | HMC 2.4L engine |
| GTS25L | 5000 / 2500 | 85.4 / 2170 | 46.7 (1185) | 112.0 (2845) | 93.7 / 2380 | N/A / N/A | 10.5 / 16.9 | 11.4 / 18.3 | HMC 2.4L engine |
| GTS30L | 6000 / 3000 | 85.8 / 2180 | 49.2 (1250 | 116.3 (2955) | 97.6 / 2480 | N/A / N/A | 11.4 / 18.3 | 12.1 / 19.5 | HMC 2.4L engine |
| GTS33L | 6600 / 3300 | 85.8 / 2180 | 49.2 (1250 | 117.7 (2990) | 98.9 / 2510 | N/A / N/A | 12.2 / 19.6 | 12.8 / 20.6 | HMC 2.4L engine |
| GTS20D | 4000 / 2000 | 85.4 / 2170 | 46.7 (1185) | 108.5 (2755) | 90.2 / 2290 | N/A / N/A | 10.7 / 17.2 | 11.4 / 18.3 | Isuzu 4LE2X T4 diesel |
| GTS25D | 5000 / 2500 | 85.4 / 2170 | 46.7 (1185) | 112.0 (2845) | 93.7 / 2380 | N/A / N/A | 10.5 / 16.9 | 11.4 / 18.3 | Isuzu 4LE2X T4 diesel |
| GTS30D | 6000 / 3000 | 85.8 / 2180 | 49.2 (1250 | 116.3 (2955) | 97.6 / 2480 | N/A / N/A | 11.4 / 18.3 | 12.1 / 19.5 | Isuzu 4LE2X T4 diesel |
| GTS33D | 6600 / 3300 | 85.8 / 2180 | 49.2 (1250 | 117.7 (2990) | 98.9 / 2510 | N/A / N/A | 12.2 / 19.6 | 12.8 / 20.6 | Isuzu 4LE2X T4 diesel |
Full specifications: Brochure (PDF)
Our team will help you configure the right truck for your operation, with local parts and service support.
Product information and images courtesy of the manufacturer. Specifications subject to change.
