Clark C60-80 IC Pneumatic Forklift (13,500-18,000 lbs)

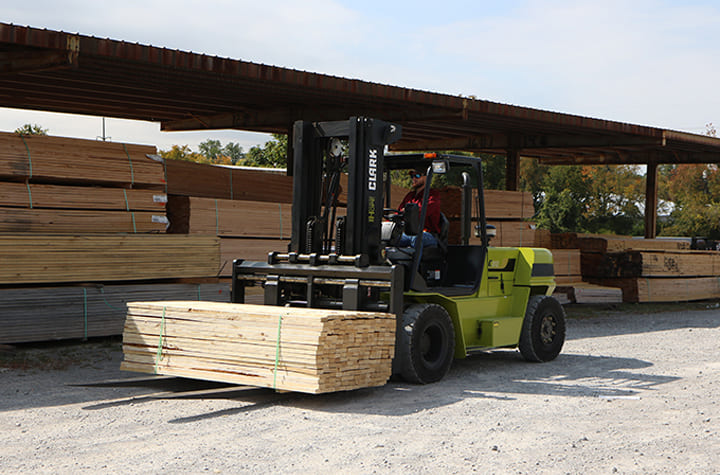

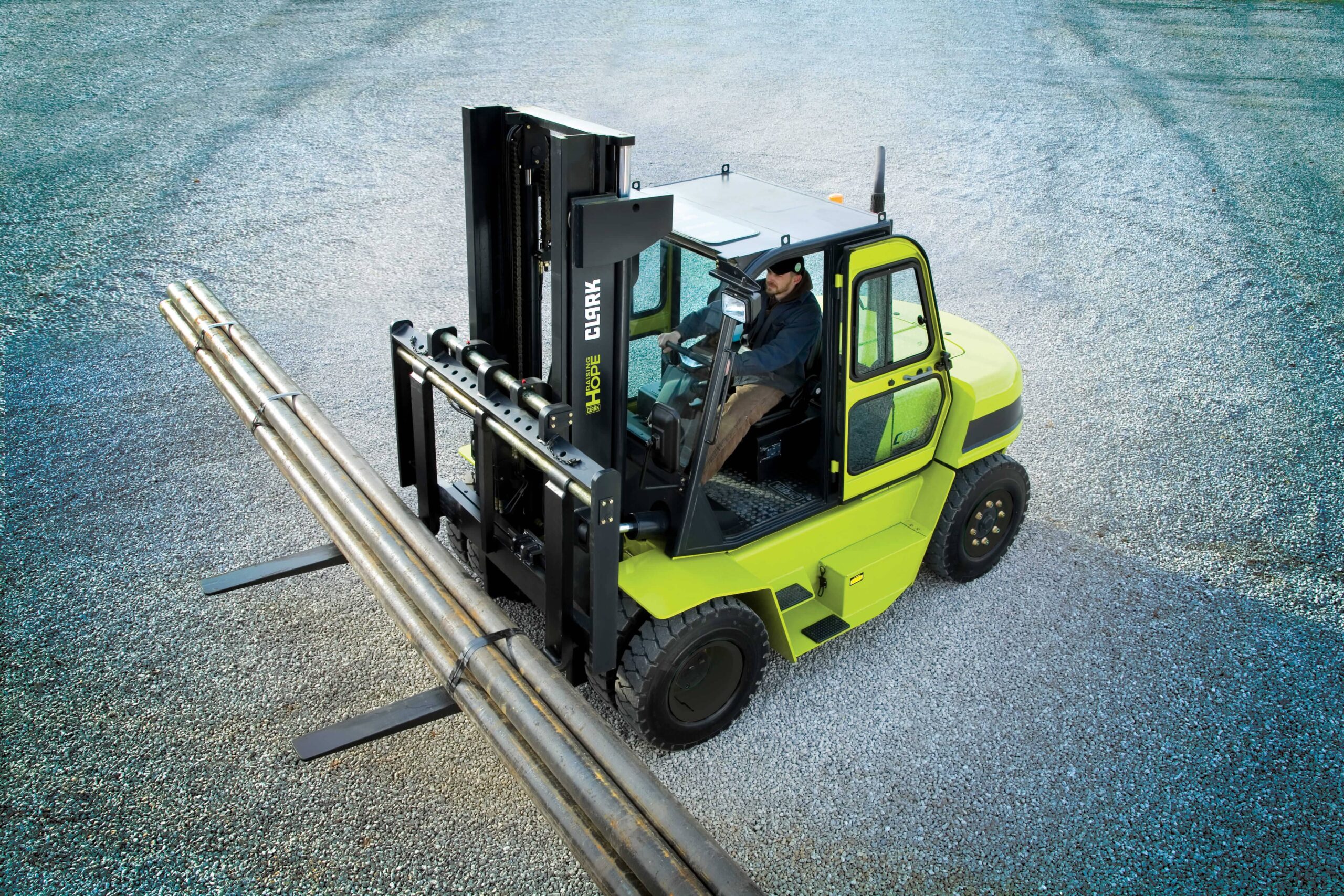

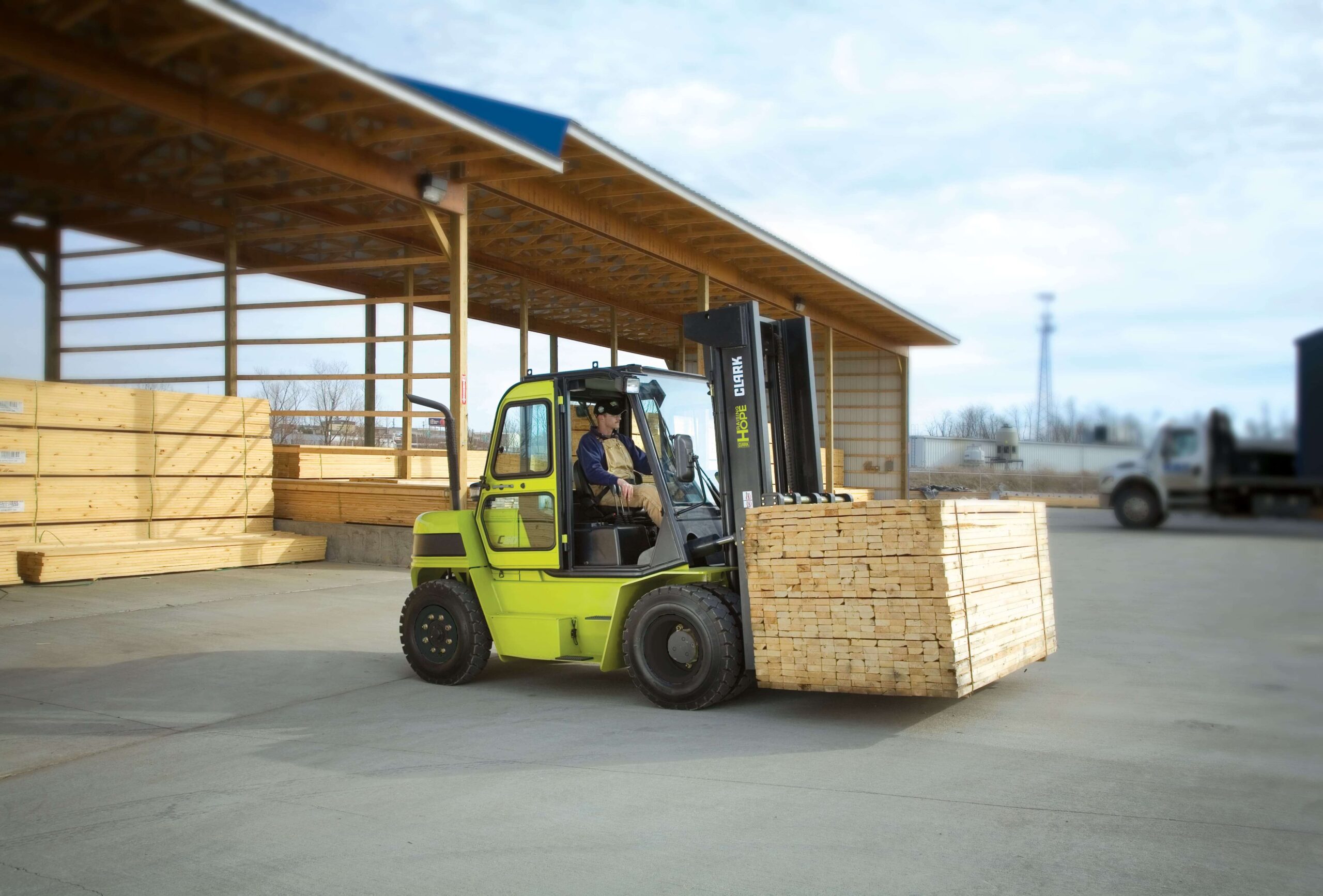

With the combination of a 74 HP engine, fully automatic 3-speed transmission, wet disc brakes, and rugged chassis design, the GEN2 C60 provides the exceptional performance, maneuverability, and durability in its class that you’ve come to expect from CLARK.
With the combination of a 74 HP engine, fully automatic 3-speed transmission, wet disc brakes, and rugged chassis design, the GEN2 C60 provides the exceptional performance, maneuverability, and durability in its class that you’ve come to expect from CLARK.

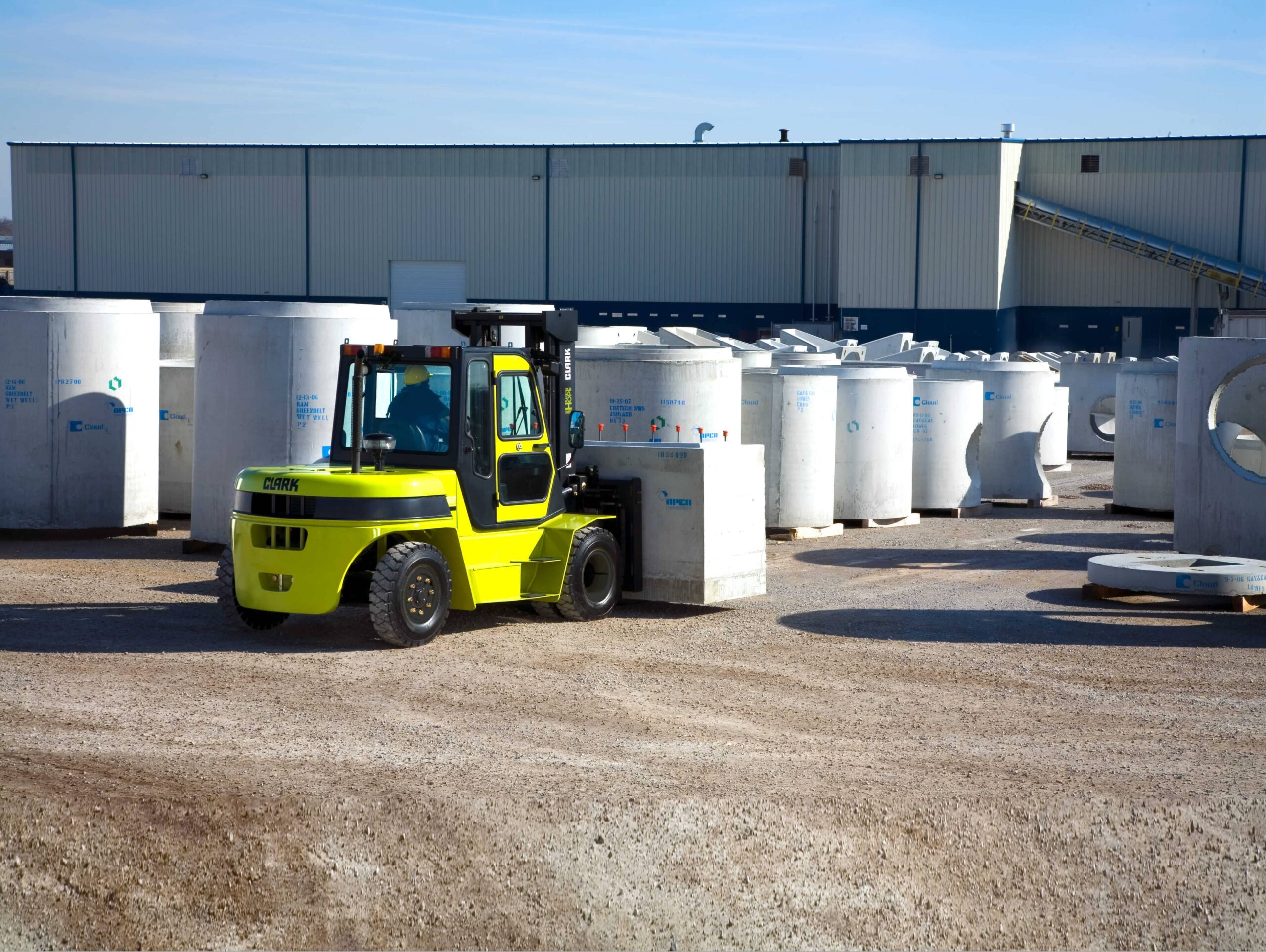

The lift cylinders, chains, and hoses in the C60 series are all mounted within the rail profile for maximum visibility. The silent staging of the hydraulic cushioning valve reduces shock and vibration. The carriage has 8 shimmable, sealed, and canted rail rollers and 4 side thrust rollers to maximize load distribution and reduce free play.

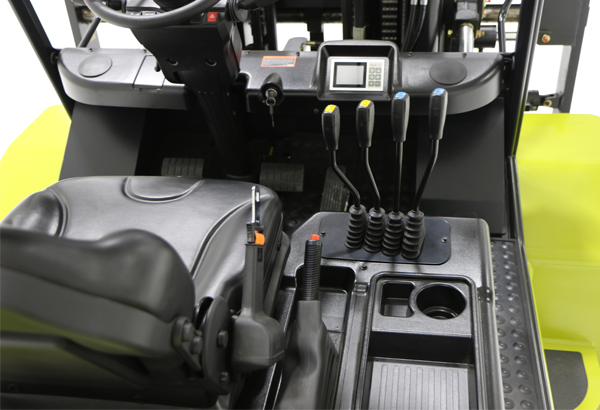

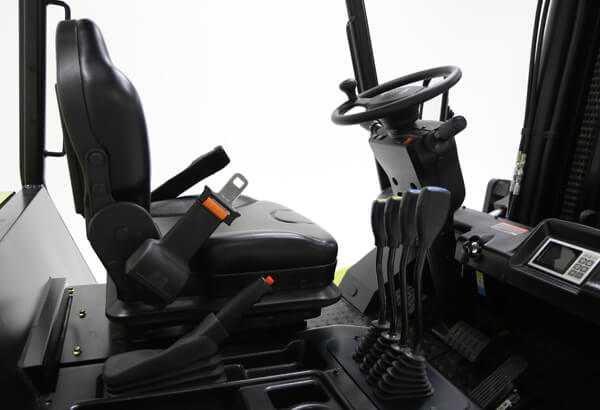

The CLARK C60/70/75/80 series comes equipped with a fully adjustable, full-suspension seat, molded for support with a non-cinching, retractable seat belt. The tilt steering column can be adjusted to suit the operator and provides easier exit/entry. The cowl mounted hydraulic controls are located and sized for optimal ease of use. Finally, the thick molded floor mats are designed to reduce vibration and noise level to improve operator comfort.

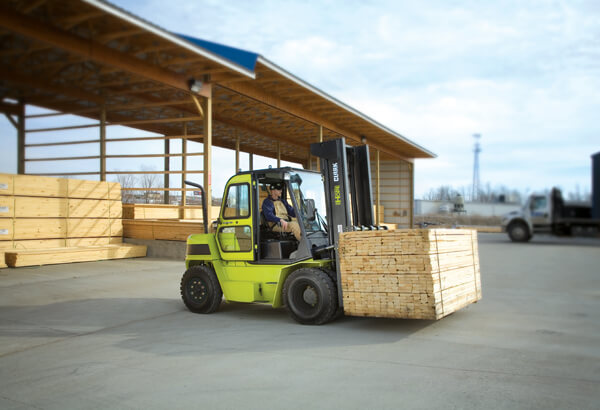

The Optional Operator Cab on the C60 series has a unique overhead guard design which minimizes vison obstruction of door pillars for maximum visibility. The 180-degree fold-and-lock doors recede within the truck frame when locked open, further increasing visibility in the cab.

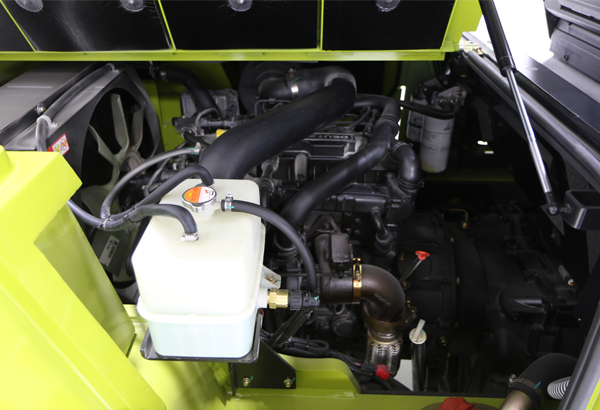

The Deutz TD 3.6 L4 EPA Tier 4 engine provides exceptional output, torque, and fuel economy. The cold start system, vertical exhaust, and pre-cleaner come standard. The field-proven 4.3L V-6 GM LPG engine is built for smooth and quiet operation. The auto shut-down feature protects your investment in the event of excessive engine coolant, high transmission oil temperature, or low engine oil pressure. All engines are EPA Compliant.

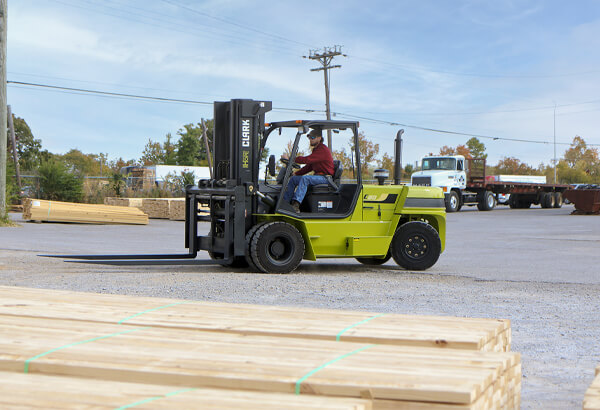

The heavy duty, welded, integral box frame assembly; the integral hydraulic and fuel tanks; the wrap-around side frame member for rigidity; and the integral battery and toolbox compartments all contribute to the “Built to Last” Chassis.
The fully automatic 3-speed powershift transmission is standard on LPG and Diesel models. The upshifting and downshifting are also very operator friendly. The modulated shift protection has smooth engagement with cushioned shifting. The robust components are heavy duty for longer life. Finally, the inching valve allows for precisely controlled travel speeds during high-speed lifting.

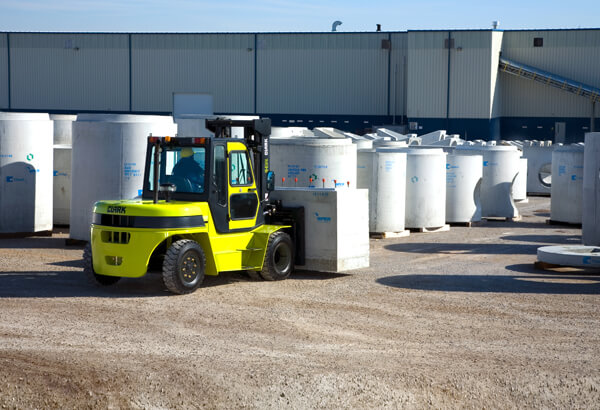

Enclosed and oil cooled wet disc brakes provide a smooth, quiet operation. The power assist design requires low pedal effort which reduces operator fatigue. Longer service intervals mean less downtime, saving you time and money. All C60 series trucks come with 36 months or 10,000-hour warranty on brake discs.

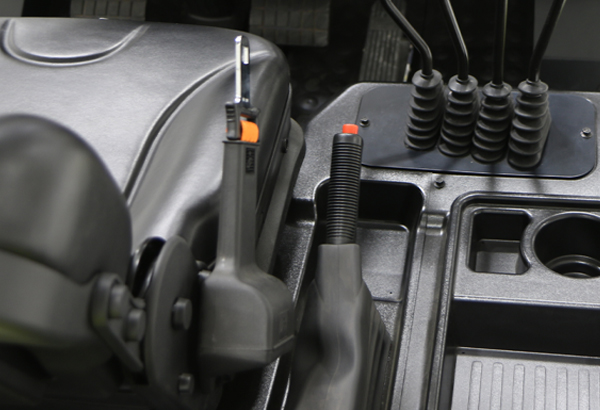

The C60 parking brake promotes safety for operators and pedestrians alike. The hand-operated lever actuates the brake, preventing the truck from moving until the brake is released. The transmission also disengages when the parking brake is set, preventing driving against the parking brake. The horn will also sound if the brake is not set after 3 seconds, keeping operators and pedestrians safer.
| Model | Load Capacity / Rated Load (lbs/kg) | Height Overhead Guard (in/mm) | Width (in/mm) | Right Angle Stack (in/mm) | Outside Turning Radius (in/mm) | Inside Turning Radius (in/mm) | Top Speed Loaded (mph / km/h) | Top Speed Unloaded (mph / km/h) | Power Unit - HP(KW) @rpm |
|---|---|---|---|---|---|---|---|---|---|
| C60D | 13500 / 6000 | 93.3 / 2370 | 83.7 (2125) | 159.4 (4050) | 134.6 / 3420 | N/A / N/A | 18.8 / 30.4 | 20.4 / 32.9 | Deutz TD3.6 74.3 (55.4) @ 2300 |
| C70D | 15500 / 7000 | 93.3 / 2370 | 83.7 (2125) | 160.2 (4080) | 135.88 / 3450 | N/A / N/A | 18.7 / 30.1 | 20.4 / 32.9 | Deutz TD3.6 74.3 (55.4) @ 2300 |
| C75D | 16500 / 7500 | 93.3 / 2370 | 83.7 (2125) | 160.2 (4080) | 135.8 / 3450 | N/A / N/A | 18.6 / 29.9 | 20.4 / 32.7 | Deutz TD3.6 74.3 (55.4) @ 2300 |
| C80D | 18000 / 8000 | 93.3 / 2370 | 83.7 (2125) | 174.6 (4435) | 148.6 / 3375 | N/A / N/A | 18.4 / 29.7 | 20.3 / 32.7 | Deutz TD3.6 74.3 (55.4) @ 2300 |
| C80D900 | 18000 / 8000 | 93.3 / 2370 | 83.7 (2125) | 177.1 (4498) | 151 / 3838 | N/A / N/A | 16.5 / 26.2 | 15.0 / 29.4 | Deutz TD3.6 74.3 (55.4) @ 2300 |
| C60L | 13500 / 6000 | 93.3 / 2370 | 83.7 (2125) | 159.4 (4050) | 134.6 / 3420 | N/A / N/A | 18.2 / 29.3 | 19.5 / 31.4 | PSI-4X 110 (82) @ 2400 |
| C70L | 15500 / 7000 | 93.3 / 2370 | 83.7 (2125) | 160.2 (4080) | 135.8 / 3450 | N/A / N/A | 18.0 / 29 | 18.8 / 30.2 | PSI-4X 110 (82) @ 2400 |
| C75L | 16500 / 7500 | 93.3 / 2370 | 83.7 (2125) | 160.2 (4080) | 135.8 / 3450 | N/A / N/A | 17.6 / 28.3 | 18.4 / 29.6 | PSI-4X 110 (82) @ 2400 |
Full specifications: Brochure (PDF)
