Clark · Sit-Down Rider · New Model Showroom

C15-C20s GEN 2

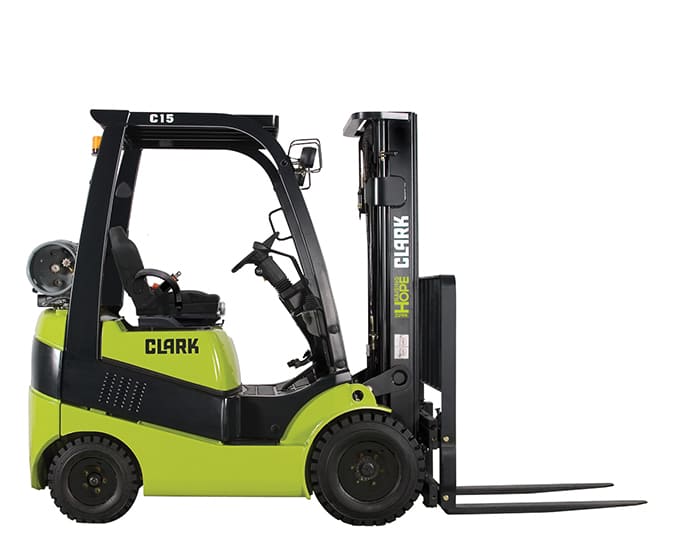

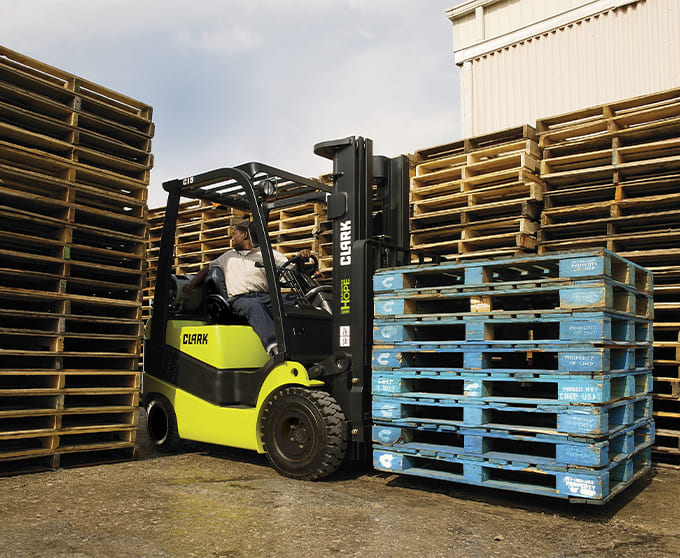

Clark C15-C20s IC Pneumatic Forklift (3,000-4,000 lbs)

The Gen2 C15-Series proudly adds to CLARK's unique history of building the best forklifts with evolutionary steps in ergonomics, power, safety, durability and performance. These narrow-width models, designed for distribution, manufacturing and warehousing of all types, are suited for the toughest applications.

  • C15 / C18 / C20s
  • IC Pneumatic Forklift
  • LPG (Hyundai 2.4L)
  • 3,000 / 3,500 / 4,000 lbs

Call for Price · +1-417-862-6960

Overview

C15-C20s GEN 2

The Gen2 C15-Series proudly adds to CLARK's unique history of building the best forklifts with evolutionary steps in ergonomics, power, safety, durability and performance. These narrow-width models, designed for distribution, manufacturing and warehousing of all types, are suited for the toughest applications.

Load Capacity Range
3,000-4,000 lbs
Travel Speed Up To
10.6 mph (L) / 11.0 mph (U)
Overhead Guard Least
83.5 in
Turning Radius Up To
84.8 in
Get a Quote
C15-C20s GEN 2

Features

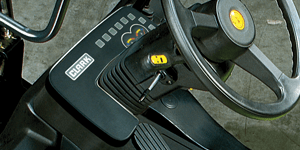

Dash Display

The microprocessor on the C15 series dash monitors the truck condition and controls the function of truck systems. Additionally, it controls neutral starting and prevents cranking while the engine is running. The LCD dash displays an hour meter and maintenance intervals, keeping your operators informed of truck performance. Additional LED lights on the dash display indicate transmission temperature, engine oil pressure, alternator charge, fuel system malfunction, maintenance required, and more.

Dash Display

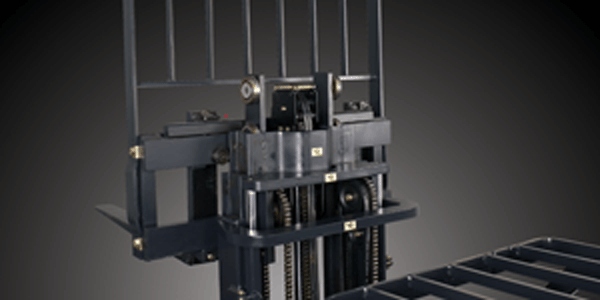

Upright & Carriage

The Nested I-beam mast design provides greater visibility and durability by allowing space for cylinders, hoses, and chains to be tucked out of the way of the operator’s view. The hydraulic cushioning valve on the C15 series has silent staging, which reduces shock and vibration, adding stability to the operation of the truck. The carriage on the C15 series has 6 rollers to maximize load distribution and reduce free play. All of this combines to make the C15 series the most durable and reliable forklift in your fleet.

Upright & Carriage

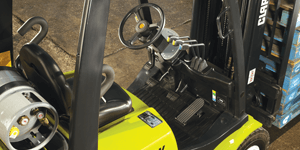

Operator Compartment

The operator compartment on the C15 series has a fully adjustable, full suspension seat which is molded for optimal operator comfort. The steering wheel has a tilting feature that allows for easy entry/exit and is adjustable based on the preferences of the operator. The cowl-mounted hydraulic controls are ergonomically designed to provide an easy, strain-free operation. And, the thick molded floor mat reduces vibration and noise level to improve overall operator comfort.

Operator Compartment

High-Performance Hyundai Theta LPG Engine

You need an engine you can count on, which is why the C15 series comes standard with the Hyundai Theta LPG engine, a highly durable and reliable engine. The 4-cylinder, dual overhead cam engine produces 52 HP and 114 ft-lbs of torque @ 1500 rpm for superior performance. The internal, self-lubricating chain-driven cams and automatic chain tensioner provide long-life and protection from debris. Alternately, the C15 can be equipped with a world-class 4TNV88 Yanmar Diesel Engine with Vertical Exhaust Standard. This engine is easy to start, easy to service, and extremely durable and reliable. Additionally, this diesel engine gets excellent fuel economy, boosting your overall ROI and reducing your overall cost of ownership.

Hydraulic System

The hydraulic system uses a load-sensing flow control valve to reduce heat buildup, ensuring your engine can run at maximum capacity. The sectional design of the engine allows for the easy addition of extra functions and simplifies service.

Hydraulic System

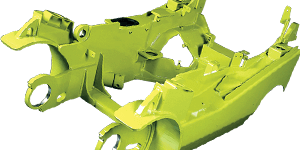

Frame

The heavy duty, welded & formed steel plate protects from impact damage and extends the life of the truck. An integral hydraulic sump, with remote breather provides cooling for hydraulics in tough applications. These features combine to ensure the durability of your C15 series forklift.

Frame

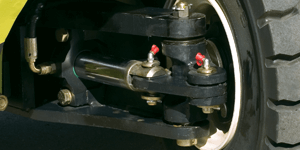

Steering Axle

The field-tested steering axle on the C15 series is designed with a rugged “double sheer” design to withstand impact without loosening or breaking. The simple, double-ended cylinder design provides additional steering force, which makes maneuvering the C15 simple.

Steering Axle

Applications

Building Materials, Masonry & Concrete

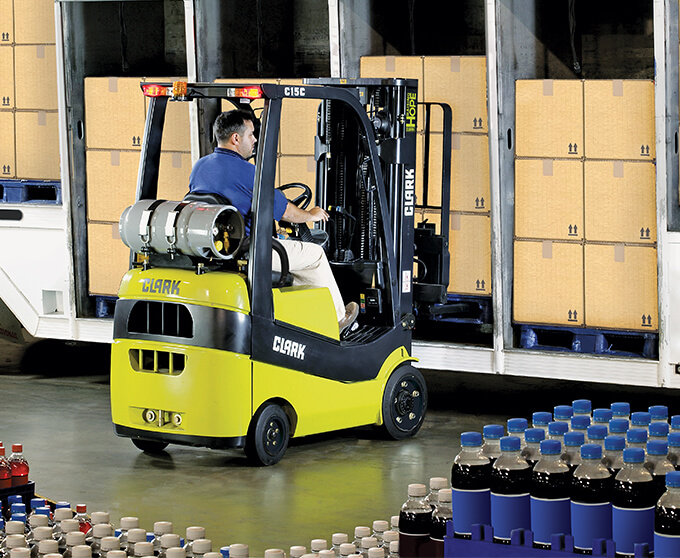

Food / Beverage / Cold Storage
Freight/Logistics
Lumber
Manufacturing & Heavy Industry
Warehouse & Distribution

Tech Specs

Model Load Capacity / Rated Load (lbs/kg) Height Overhead Guard (in/mm) Width (in/mm) Right Angle Stack (in/mm) Outside Turning Radius (in/mm) Inside Turning Radius (in/mm) Top Speed Loaded (mph / km/h) Top Speed Unloaded (mph / km/h) Power Unit - HP(KW) @rpm
C15 3000 / 1500 83.5 / 2120 42.1 (1070) STD 97.9 (2465) / TSU 97.1 (2468) 81.6 / 2073 N/A / N/A 10.8 / 17.4 11.4 / 18.4 Hyundai 2.4L 52 hp @ 1500
C18 3500 / 1800 83.5 / 2120 42.1 (1070) STD 98.9 (2513) / 83.5 / 2121 N/A / N/A 10.7 / 17.2 11.4 / 18.4 Hyundai 2.4L 52 hp @ 1500
C20s 4000 / 2000 83.5 / 2120 42.1 (1070) STD 100.2 (2546) / TSU 100.3 (2549) 84.8 / 2154 N/A / N/A 10.6 / 17.0 11.0 / 17.7 Hyundai 2.4L 52 hp @ 1500

Full specifications: Brochure (PDF) Spec Sheet (PDF)
